Description

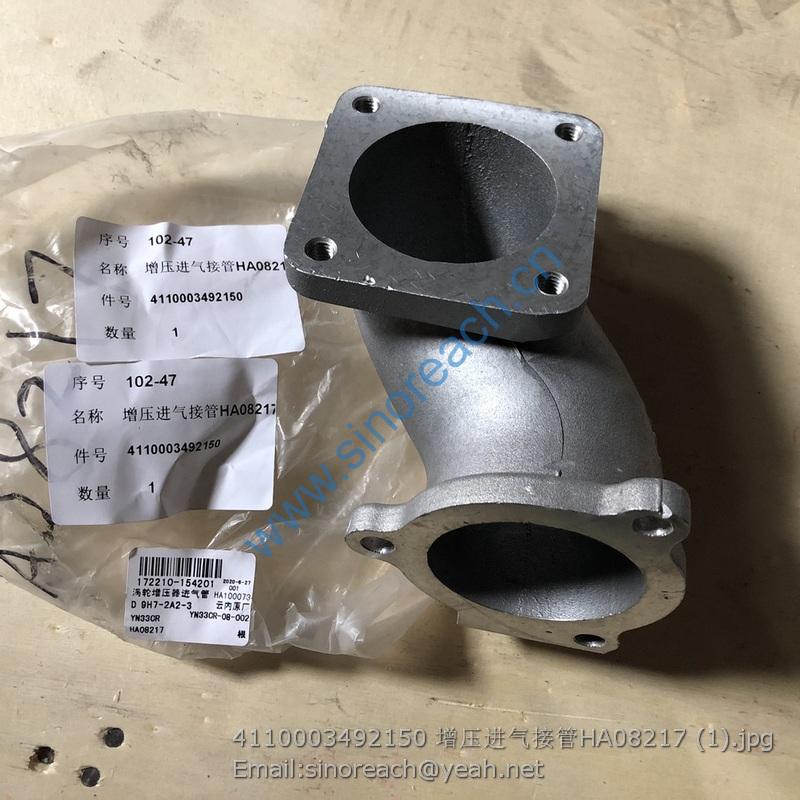

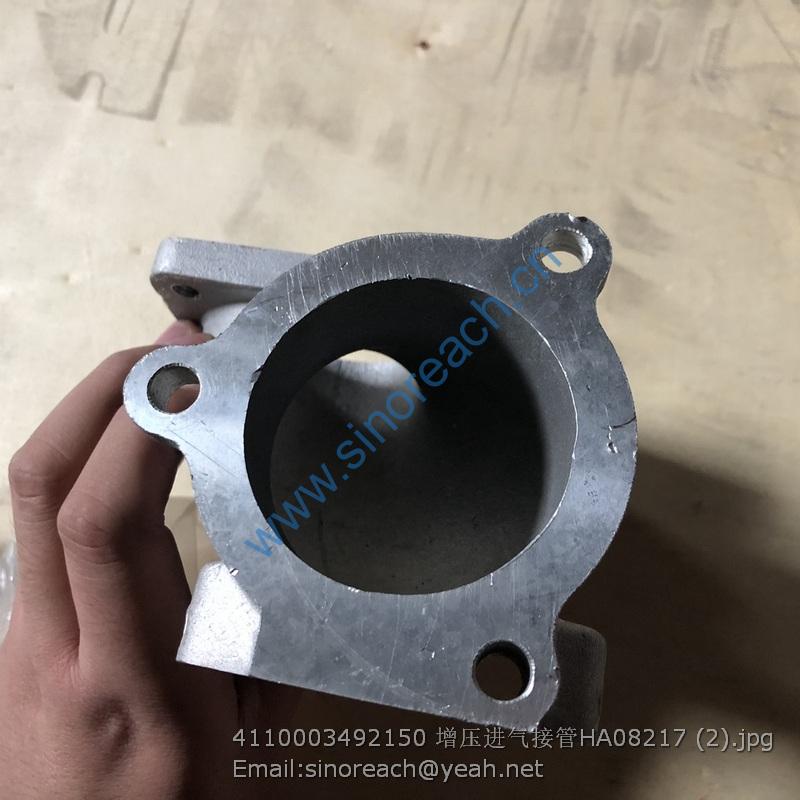

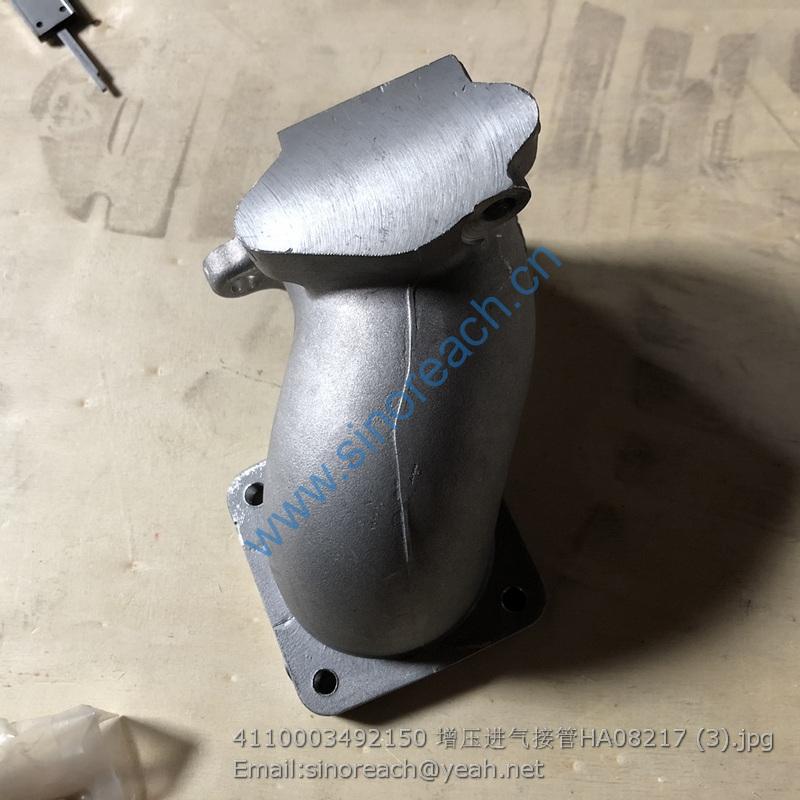

4110003492150 HA08217 YN33CR-08-002 Pressurized intake manifold

1 4043001014 卡子胶条LGB320-S1220 Sealing strip Y 1
2 29030031971 后封板 Plate Y 1
3 29330031081 橡胶套D50 Rubber sleeve Y 1
4 4043000825 护套LGB313-6*50 Rubber sleeve Y 2
5 4011001246 螺栓GB5783-M8*16flZnyc-8.8-480 Screw Y 5
6 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 5
7 29100011031 垫圈 Washer Y 6
8 4011001328 螺栓GB5783-M16*50flZnyc-8.8-480 Screw Y 6

1 29030031871 散热器进水管 Hose Y 1
2 4110003869 卡箍360030044052（63～78mm） Clamp Y 4
3 4090000173 胶管HG2491-10*1000 Hose Y 1
4 29030022061 节流器 Nipple Y 1
5 4017000010 喉箍JB8870-d20 Clamp Y 2
6 4017000008 喉箍JB8870-d40 Clamp Y 2
7 29030031921 补水管 Hose Y 1
8 29030031881 散热器出水管 Hose Y 1

1 4110003612001 焊接组合框架KZ9113582A Radiator frame N 1
2 4110003075002 防护网HB0232 Fan guard Y 2
3 4110003613001 导风罩DB0464 Fan shroud N 1
4 4110003075006 中冷器S9112594A Air cooler Y 1
5 4110003075007 水散S9112594B Radiator Y 1
6 4110002945006 水箱盖711001 Cover Y 1
7 4110004041001 液压油散热器S9113582E Oil cooler Y 1
8 4110004041002 传动油冷却器S9114257 Oil cooler Y 1
9 4110004041003 旋转支架KZ9114332B Bracket Y 1
10 4110002945015 法兰面螺栓614212 Screw N 30
11 4110002233206 放水阀739001 Drain valve Y 1
12 4110002506023 放水管8000080800 Hose Y 1
13 4110002286007 卡箍990002 Clamp N 1
14 4110003075014 六角头螺栓610205 Screw N 6
15 4110002943004 弹垫632300 Spring washer N 10
16 4110001688022 平垫630330 Plain washer N 20
17 4110003075015 外六角螺塞641306 Plug N 1
18 4110003075016 组合垫片634009 Shim N 1
19 4110003075019 六角螺母621400 Nut N 2
20 4110003075020 锁扣橡胶垫720044 Rubber mat N 2
21 4110003075021 锁扣安装轴330530 Shaft N 2
22 4110003075022 锁扣定销330531 Pin N 2
23 4110003075023 锁扣弹性环330532 Clamp N 2
24 4110003749008 减震垫720081 Damper mat N 2

1 4011001249 螺栓GB5783-M10*30flZnyc-8.8-480 Screw Y 12
2 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 12
3 4110003092 接头体 Nipple Y 1
4 4030000233 O形圈GB3452.1-65.0*3.55G O-ring Y 1
5 4041000676 直接头LGB120-03630 Nipple Y 3
6 4041000756 O形圈LGB168-02631 O-ring Y 4
7 4041001211 组合接头LGB143-03625 Nipple Y 2
8 29050028761 夹紧接头 Clamping connector Y 1
9 4030000359 O形圈GB3452.1-21.2*1.80G O-ring Y 1
10 4041003066 直接头LGB120-03630*95 Nipple Y 1
11 4041002674 软管LGB164-014091 Hose Y 1
12 29050034701 滤清器至变速箱油管 Hose Y 1
13 4041001485 组合接头LGB143-13625 Elbow nipple Y 2
14 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 2
15 29050034371 滤清器支架 Bracket Y 1
16 4011001299 螺栓GB16674.1-M10*25flZnyc-8.8-480 Screw Y 2
17 4110003091 滤座 Seat Y 1
18 29050024871 加油管 Oil pipe Y 1
19 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 2
20 4110002936 变速箱ZF4WG200 Gearbox Y 1
21 4012000082 螺柱GB898-M12*35flZnyc-8.8-480 Stud Y 8
22 29050007601 变矩器油温表接头 Nipple Y 1
23 4015000231 垫圈JB6013-14-T2 Washer Y 1
24 4110000460 减震器CBB95-2 Absorber Y 4
25 29050000121 垫圈 Washer Y 4
26 4011001310 螺栓GB5785-M20*1.5*130flZnyc-8.8-480 Screw Y 2
27 4015000434 垫圈GB97.1-20flZnyc-300HV-480 Washer Y 6
28 4013000379 螺母GB889.2-M20*1.5flZnyc-8-480 Nut Y 2
29 4011001283 螺栓GB5783-M20*50flZnyc-8.8-480 Screw Y 4
30 29050021572 连接座 Bracket Y 1
