Description

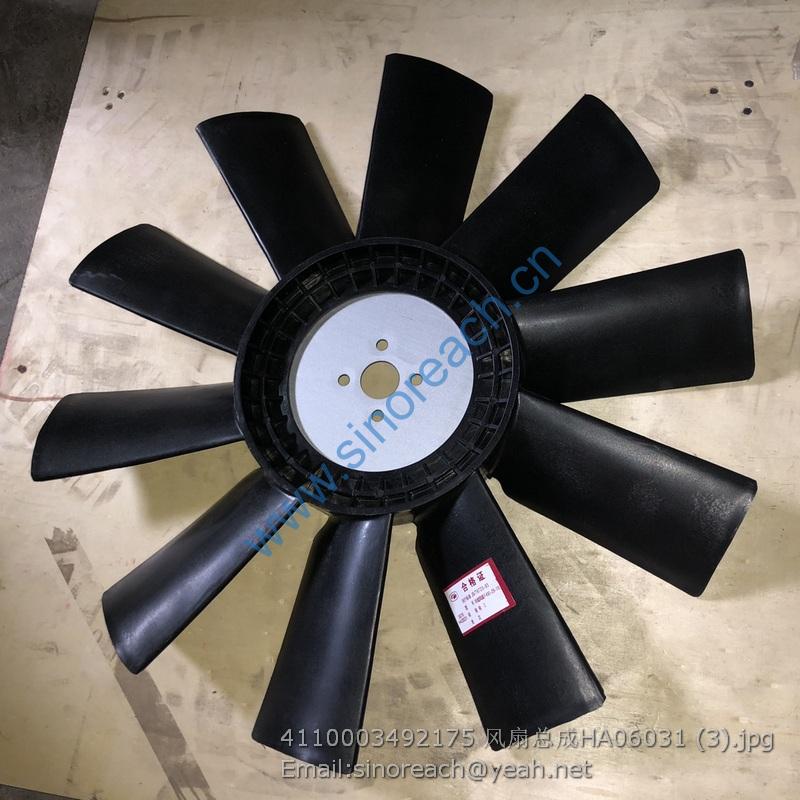

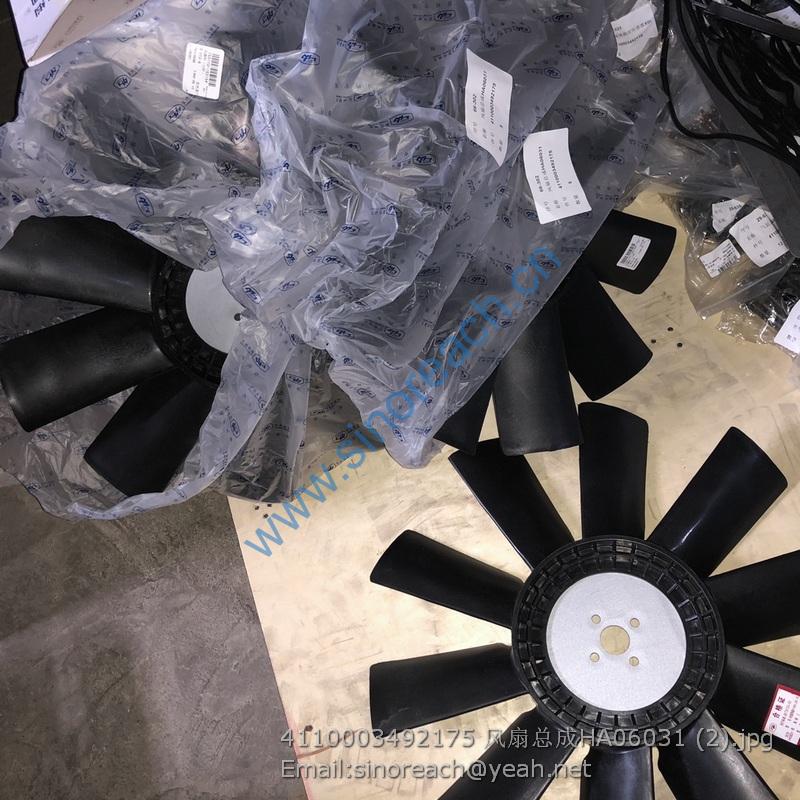

4110003492175 fan HA06031

1 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 8
2 4041000011 分体法兰LGB117-314650 Flange half Y 2
3 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 2
4 4041001957 软管LGB161-014159 Hose assembly Y 1
5 29120019981 橡胶块支架 Bracket Y 1
6 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 2
7 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 4
8 4041002626 管夹LGB172-A25*28 Hose clamp Y 2
9 29120019531 压板 Plate Y 1
10 4011001354 螺栓GB5782-M10*90flZnyc-8.8-480 Screw Y 2
11 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 4
12 29120023671 多路阀进油胶管 Hose assembly Y 1
13 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8
14 4041000056 分体法兰LGB117-312550 Flange half Y 2
15 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
16 29120016351 固定板 Anchor plate Y 2
17 29120021551 管夹 Clamp Y 4
18 4011001303 螺栓GB16674.1-M8*90flZnyc-8.8-480 Screw Y 4
19 4013000373 螺母GB6170-M8flZnyc-8-480 Nut Y 4
20 29120019621 先导管支架 Bracket Y 1
21 4011001238 螺栓GB5783-M10*20flZnyc-8.8-480 Screw Y 4
22 4015000433 垫圈GB97.1-10flZnyc-300HV-480 Washer Y 4
23 4190000056 扎丝LG13-ZS3*200 Cable tie Y 5
24 4190001832 扎丝RTGB-200ST Cable tie Y 5
25 26310002061 自扎帆布套 Tarpaulin cover Y 1
26 4041000767 O形圈LGB168-11124 O-ring Y 1
27 4041003205 直接头LGB120-01614*90 Nipple Y 1
28 4041001023 组合接头LGB143-01608 Nipple Y 1
29 4030000240 O形圈GB3452.1-8.00*1.80G O-ring Y 1
30 4041003204 直接头LGB120-01818*90 Nipple Y 1

31 4041000768 O形圈LGB168-11524 O-ring Y 1
32 4030000490 O形圈GB3452.1-10.0*1.80G O-ring Y 1
33 4041001063 组合接头LGB143-01810 Nipple Y 1
34 4041002505 软管LGB164-005115 Hose assembly Y 1
35 29120020071 弯板 Plate Y 1
36 4041001362 软管LGB124-003280 Hose assembly Y 1
37 4041001554 软管LGB125-003070 Hose assembly Y 1
38 4041002512 软管LGB124-003218 Hose assembly Y 1
39 4041002513 软管LGB164-004220 Hose assembly Y 1
40 4041001858 软管LGB124-003210 Hose Y 2

1 4120007706 先导油源阀C101000157 Valve Y 1
2 4120002274 蓄能器GXQ-D-0.75L-100 Accumulator Y 1
3 29120034931 板 Plate Y 1
4 29120036651 直接头M22*1.5 Nipple Y 1
5 4030000097 O形圈GB3452.1-23.6*2.65G O-ring Y 1
6 4041000771 O形圈LGB168-11924 O-ring Y 1
7 4041000150 直接头LGB120-01814 Nipple Y 1
8 4041000767 O形圈LGB168-11124 O-ring Y 3
9 4041000604 直接头LGB120-01614 Nipple Y 1
10 4011001296 螺栓GB16674.1-M8*20flZnyc-8.8-480 Screw Y 4
11 4041002902 螺塞LGB135-21422 Plug Y 1

1 29120029491 多路阀KM300-II-19A部装总成 Control valve assembly N 1
2 29120034891 液压操纵主管路和先导管路 Hydraulic control N 1
3 29120036641 先导油源阀组部装A Hydraulic control N 1
4 29120030611 先导阀总成PCL402-4MBM3H3B-C部装 Control lever N 1
5 4011001300 螺栓GB16674.1-M10*30flZnyc-8.8-480 Screw Y 8
6 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
7 4041000027 分体法兰LGB117-312551 Flange half Y 1
8 29190011601 法兰接头 Joint Y 1
9 29120034921 合流胶管 Hose assembly Y 1
10 4041000766 直接头LGB120-01818 Nipple Y 1
11 4041000768 O形圈LGB168-11524 O-ring Y 1
12 4041000011 分体法兰LGB117-314650 Flange half Y 3
13 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 3
14 4011001510 螺栓GB16674.1-M12*35flZnyc-8.8-480 Screw Y 12
15 29120034601 回油块总成 Block Y 1
16 29120037521 回油节流盘 Block Y 1
17 4041000802 直接头LGB120-03642 Connecter Y 1
18 4041000878 O形圈LGB168-13831 O-ring Y 1
19 4041002979 软管LGB164-005170 Hose assembly Y 1
20 29120036631 多路阀回油胶管 Hose assembly Y 1
21 4041000056 分体法兰LGB117-312550 Flange half Y 1
22 4041002377 管夹LGB169-A20*12.5 Clamp Y 1
23 4011001294 螺栓GB16674.1-M10*20flZnyc-8.8-480 Screw Y 2
24 4120001100 三通接头EL10LOMDA3C Three-way nipple Y 1
25 4041003256 软管LGB124-004095 Hose assembly Y 1
26 4041002371 软管LGB126-004128 Hose assembly Y 1
27 4041002417 管夹LGB169-B20*12.5 Clamp Y 1
28 29120015081 接头 Nipple Y 2
29 4030000276 O形圈GB3452.1-32.5*2.65G O-ring Y 2
30 4120001954 滤油器PLF-C30*10 Hydraulic fluid filter Y 1
