Description

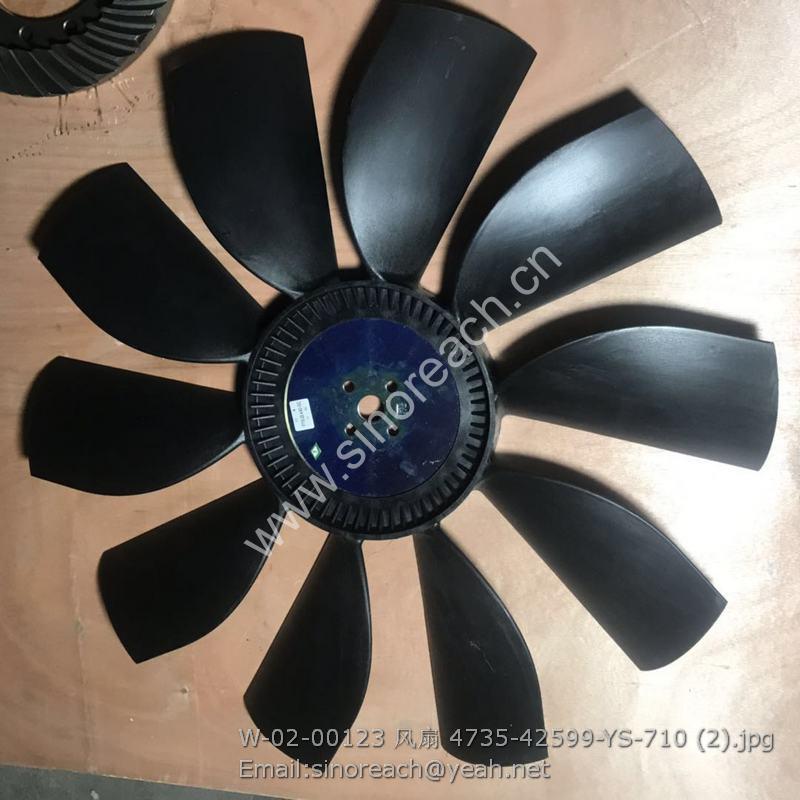

W-02-00123 Radiator Fan 4735-42599-YS-710 for Changlin Spare Parts

B-G061700-00007 螺母 M12 ZnD Nut
B-G009010-00008 双头螺柱 M12×55 Stud bolt
B-G000930-00003 垫圈 12 Spring washer
936.2.2-5 垫 Pad
B-G09877A-00027 油封 FB55×85×12 Oil seal
B-G00893A-00015 挡圈78 Snap ring
956.2.5-4B 联接套 Connect sleeve
Z50B.2.1-27L 齿轮 Gear
Z50B.2.1-28 芯轴 Shaft
B-G002760-00016 轴承 6208 Bearing
B-G00893A-00016 挡圈 80 Snap ring
B-G000930-00001 垫圈 10 Spring washer
B-G057860-00004 螺钉 M10×1×32 Screw

Z30.2D.1-21 螺母 Nut
B-G009010-00005 双头螺栓 M14×55 Stud bolt
B-G000930-00005 垫圈 14 Spring washer
W-01-00141 油泵(左旋)CBGj1045（SAE） Pump
936.2.2-4 垫 Pad
B-G09877A-00023 油封 FB50×80×12 Oil seal
B-G00893A-00012 挡圈 70 Snap ring
956.2.5-2A 联接套 Connecting sleeve
Z30.2.3-43L 齿轮 Gear
Z50B.2.1-4 芯轴 Shaft
B-G002760-00015 轴承 6207 Bearing
B-G00893A-00013 挡圈 72 Snap ring
B-G000930-00001 垫圈 10 Spring washer
B-G057860-00004 螺钉 M10×1×32 Screw

Z50E.2.3 精滤清器 Fine Filter
Z30.2.8-7 阀盖 Valve cover
B-J010020-00010 垫圈 30 Washer
Z30.2.8-6 弹簧 Spring
Z30.2.8-5 阀芯 Valve core
Z50E.2.3-1 精滤器上盖 Upper cover
Z30.2.8-3 胶垫 Rubber pad
W-15-00057 线隙式滤油器 Filter
Z30.2.8-2 座 Seat
Z30.2.8-1 弹簧 Spring
B-Q020710-00111 O形密封圈 105×5.7 O-ring
Z30.2.8-4 螺母 Nut
Z30.2.8.1 精滤清器 Filter body
B-J010020-00013 垫圈 8 Washer
B-J010000-00013 螺塞 M8×1 Plug
