Description

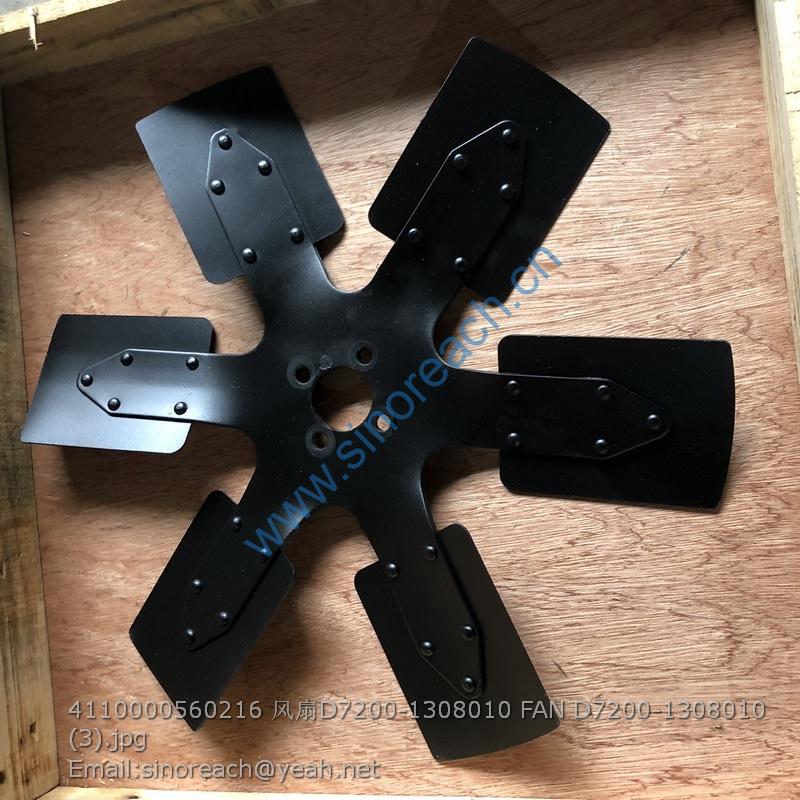

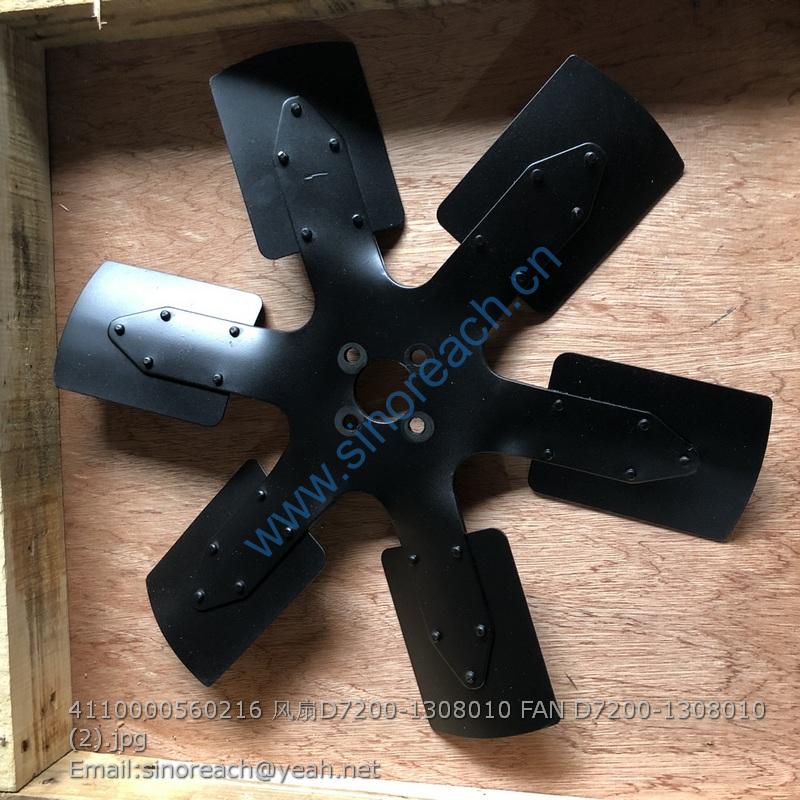

4110000560216 D7200-1308010 FAN
1 4110000560285 螺栓 M10X16 Q1841016TF2 BOLT M10X16 Q1841016TF2 N 4
2 4110000560216 风扇D7200-1308010 FAN D7200-1308010 Y 1
3 4110000560110 风扇组件D0200-1308020 FAN COMPONENT D0200-1308020 Y 1
4 4110000560286 螺栓 M10X30 Q1841030TF2 BOLT M10X30 Q1841030TF2 N 4
1 4110000560194 飞轮壳D7000-1600015E FLYWHEEL HOUSING D7000-1600015E Y 1
2 4110000560289 螺栓 M14×50 Q1841450TF2 BOLT M14×50 Q1841450TF2 N 4
3 4110000560288 螺栓 M12×50 Q1841250TF2 BOLT M12×50 Q1841250TF2 N 6
4 4110000560104 飞轮螺栓B8800-1005063 FLYWHEEL BOLT B8800-1005063 Y 7
5 4110000560198 飞轮及齿圈组件D7019-1005360
FLYWHEEL AND GEAR RING SUBASSEMB
D7019-1005360
Y 1
6 4110000560077 扁销6105Q-1600011 TABULAR PIN 6105Q-1600011 Y 1
7 4110000560345 圆柱销YC24-B1224 PIN YC24-B1224 N 1
8 4110000560340 油封 100×125 YC209-100125FL OIL SEAL 100×125 YC209-100125FL N 1
9 4110000560250 螺栓 M6×12 Q150B0612 BOLT M6×12 Q150B0612 N 1
10 4110000560097 盖板―飞轮壳6QA1-1600016 COVER PLATE-FLYWHEEL HOUSING 6QA1-1600016 Y 1
11 4110000560296 垫圈6 Q40106 WASHER 6 Q40106 N 1
12 4110000560303 垫圈6 Q40306 WASHER 6 Q40306 N 1
13 4110000560341 油封 100×125 YC209-B100125PL OIL SEAL 100×125 YC209-B100125PL N 1
1 4110000560026 管夹383-1003073 PIPE CLAMP 383-1003073 Y 1
2 4110000560105 空压机进气管D0103-3509012 AIR INTAKE PIPE,AIR COMPRESSOR D0103-3509012 N 1
3 4110000560333 环箍 27 Q67627 HOOP 27 Q67627 N 2
4 4110000560052 空压机进气管接头530-3509011
AIR INTAKE PIPE JOINT,AIR COMPRESSOR
530-3509011
Y 1
5 4110000560254 螺栓 M8X20 Q150B0820 BOLT M8X20 Q150B0820 N 2
6 4110000560316 停用-垫圈 8 Q40308 WASHER 8 Q40308 N 1
7 4110000560297 垫圈 8 Q40108 WASHER 8 Q40108 N 1
8 4110000560107 空压机进气接头D0111-3509010 AIR INTAKE JOINT,AIR COMPRESSOR D0111-3509010 Y 1
9 4110000560219 密封垫片F3100-3509014 SEAK GASKET F3100-3509014 Y 1
10 4110000560190 空气压缩机垫片D30-3509001A AIR COMPRESSOR GASKET D30-3509001A Y 1
11 4110000560192 空压机齿轮D30-3509011 AIR COMPRESSOR GEAR D30-3509011 Y 1
12 4110000560274 螺栓 M10X40 Q150B1040 BOLT M10X40 Q150B1040 N 3
13 4110000560064 接头螺栓6105Q-1007073 JOINT BOLT 6105Q-1007073 Y 2
14 4110000560232 复合式密封垫圈8 Q/YC149-8 COMPOUND SEAL RING 8 Q/YC149-8 N 4
15 4110000560281 螺栓 M10X1X30 Q151B1030 BOLT M10X30 Q151B1030 N 1
16 4110000560319 垫圈 10 Q40310 WASHER 10 Q40310 N 4
17 4110000560298 垫圈 10 Q40110 WASHER 10 Q40110 N 4
18 4110000560191 空压机进油管D30-3509004A FUEL INLET PIPE,AIR COMPRESSOR D30-3509004A Y 1
19 4110000560230 复合式密封垫圈 22Q/YC149-22 COMPOUND SEAL WASHER22 Q/YC149-22 N 1
20 4110000560207 出气接头D7019-3509008B AIR OULET JOINT D7019-3509008B N 1
21 4110000560117 锁紧螺母D08F2-3509062 LOCK NUT D08F2-3509062 Y 1
22 4110000560220 出气接头G0403-3509008 AIR OUTLET JOINT G0403-3509008 Y 1
