Description

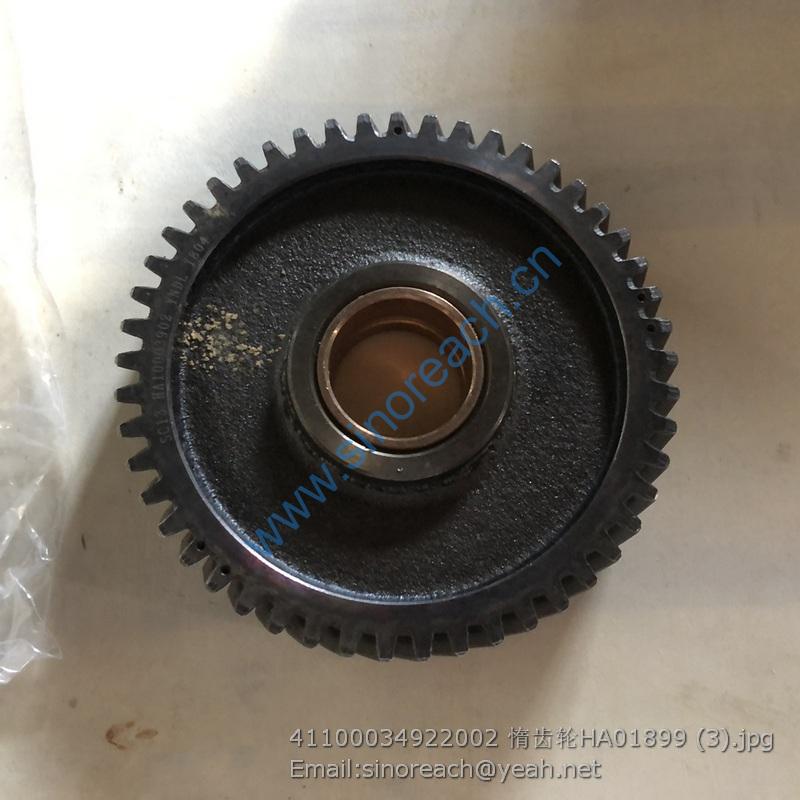

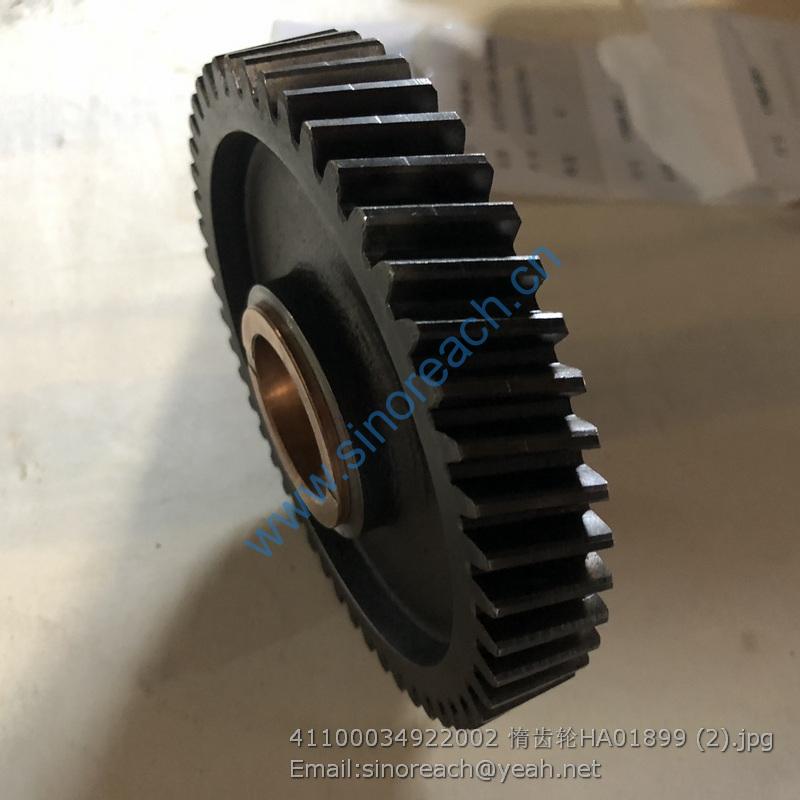

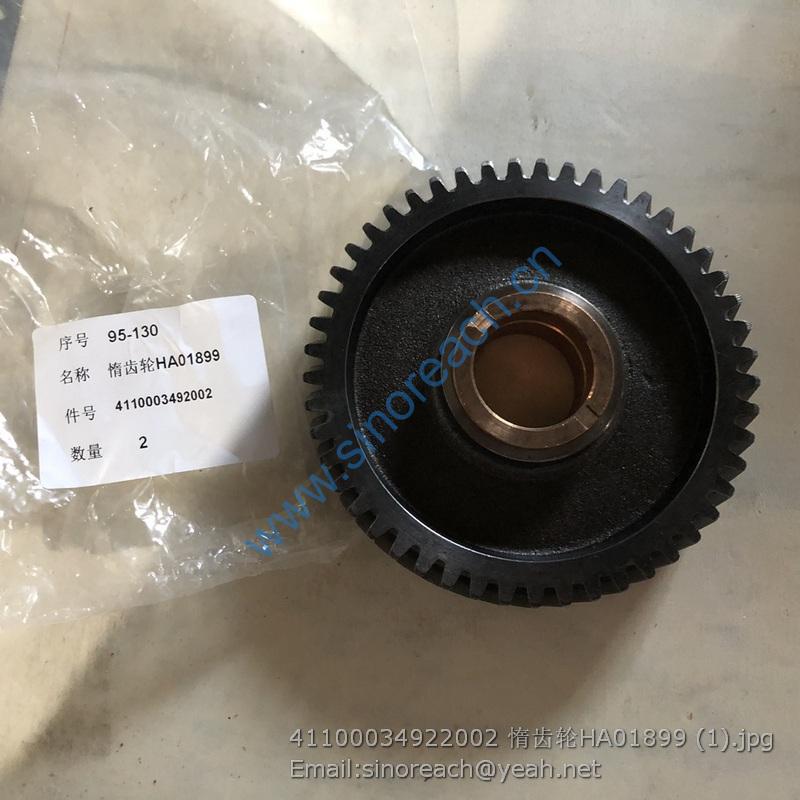

41100034922002 HA01899 gear
1 4110000076362 轴 YD13 353 012 (153) Shaft Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-ring Y 1
3 4110000076258 搭扣密封环0734401106 Sealing ring Y 3
4 4012000042 螺柱GB898-M8*18-8.8 Stud Y 3
5 4013000033 螺母GB6170-M8EpZn-8 Nut Y 3
6 4110000076270 调整垫片0769120468 Shim Y 1
7 4110000076289 齿轮 YD13 353 002 (K4) Z=32 Gear Y 1
8 4110000076246 承磨垫 0730 150 774 DUP Washer Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 Bearing Y 1
10 4110000076190 承压板4642308185 Anchor plate Y 2
11 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
12 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
13 4110000076352 异形密封环 0750 112 141 Sealing ring Y 2
14 4110000076199 止动片4644351094 Extension bar Y 1
15 4110000076191 止动片4642308555 Extension bar Y 1
16 4110000076353 异形密封环 0750 112 140 Sealing ring Y 2
17 4110000076251 压力弹簧0732041183 Tension spring Y 2
18 4110000076189 导向环4642308083 Retaining ring Y 4
19 4110000076298 挡圈 0630 531 346 AV55 Retaining ring Y 2
20 4110000076302 导向环 4642 308 084 Retaining ring Y 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 Needle bearing Y 1
22 4110000076294 弹性挡圈 0730 513 610 Retaining ring Y 1
23 4110000076062 滚针轴承O635303204 Needle bearing Y 1
24 4110000076295 弹性挡圈 0730 513 611 Retaining ring Y 1
25 4110000076296 弹性挡圈0769 124 115 Retaining ring Y 2
26 4110000076247 承磨垫 0730 150 779 DUP Washer Y 1
27 4110000076290 齿轮 YD13 353 011 (K3) Z=55 Gear Y 1
28 4110000076322 滚子组 0750 119 048 Roller Y 1
29 4110000076329 离合器组件 YD13 253 001 Clutch kit Y 1
30 4110000076067 外摩擦片 0501 309 329 S=2,0 Friction disc Y 16
31 4110000076069 内摩擦片 4642 308 332 S=2.0 Friction disc Y 8
32 4110000076068 内摩擦片 4642 308 330 S=1.5 Friction disc Y 2
33 4110000076107 内摩擦片 4642 308 331 S=2.5 Friction disc Y 2
34 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 Friction disc N 1
35 4110000076407 离合器K3/K4 YD13 153 006 Clutch N 1
1 4110000076361 轴 YD13 352 009 (152) Shaft Y 1
2 4110000076380 O形圈 0634 313 536 49*3 O-ring Y 1
3 4110000076258 搭扣密封环0734401106 Sealing ring Y 3
4 4012000042 螺柱GB898-M8*18-8.8 Stud Y 3
5 4013000033 螺母GB6170-M8EpZn-8 Nut Y 3
6 4110000076270 调整垫片0769120468 Shim Y 1
7 4110000076287 齿轮 YD13 351 006(KV/R) Z=50 Gear Y 1
8 4110000076246 承磨垫 0730 150 774 DUP Washer Y 1
9 4110000076053 轴承 YD13 351 007 WTB35*64*38 Bearing Y 1
10 4110000076190 承压板4642308185 Anchor plate Y 2
11 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
12 4110000076324 活塞 4644 353 051 Cylinder piston Y 1
13 4110000076352 异形密封环 0750 112 141 Sealing ring Y 2
14 4110000076199 止动片4644351094 Extension bar Y 1
15 4110000076191 止动片4642308555 Extension bar Y 1
16 4110000076353 异形密封环 0750 112 140 Sealing ring Y 2
17 4110000076251 压力弹簧0732041183 Tension spring Y 2
18 4110000076189 导向环4642308083 Retaining ring Y 4
19 4110000076298 挡圈 0630 531 346 AV55 Retaining ring Y 2
20 4110000076302 导向环 4642 308 084 Retaining ring Y 2
21 4110000076060 滚针轴承 0750 115 182 35*42*20 Needle bearing Y 1
22 4110000076294 弹性挡圈 0730 513 610 Retaining ring Y 1
23 4110000076062 滚针轴承O635303204 Needle bearing Y 1
24 4110000076295 弹性挡圈 0730 513 611 Retaining ring Y 1
25 4110000076296 弹性挡圈0769 124 115 Retaining ring Y 2
26 4110000076247 承磨垫 0730 150 779 DUP Washer Y 1
27 4110000076410 齿轮 YD13 252 006 (K2) Z=56/23 Gear Y 1
28 4110000076321 滚柱轴承 YD13 352 015 Bearing Y 1
29 4110000076280 挡圈YD13352010 Retaining ring Y 3
30 4110000076328 离合器组件 YD13 251 001 Clutch kit Y 1
31 4110000076067 外摩擦片 0501 309 329 S=2,0 Friction disc Y 22
32 4110000076068 内摩擦片 4642 308 330 S=1.5 Friction disc Y 11
33 4110000076069 内摩擦片 4642 308 332 S=2.0 Friction disc Y 7
34 4110000076074 内摩擦片 0769 129 011 S=1,5/2,0/2,5 Friction disc N 2
35 4110000076406 离合器K2/KR YD13 152 001 Clutch N 1
36 4110000145087 球阀4642 208 107 Ball valve Y 1
