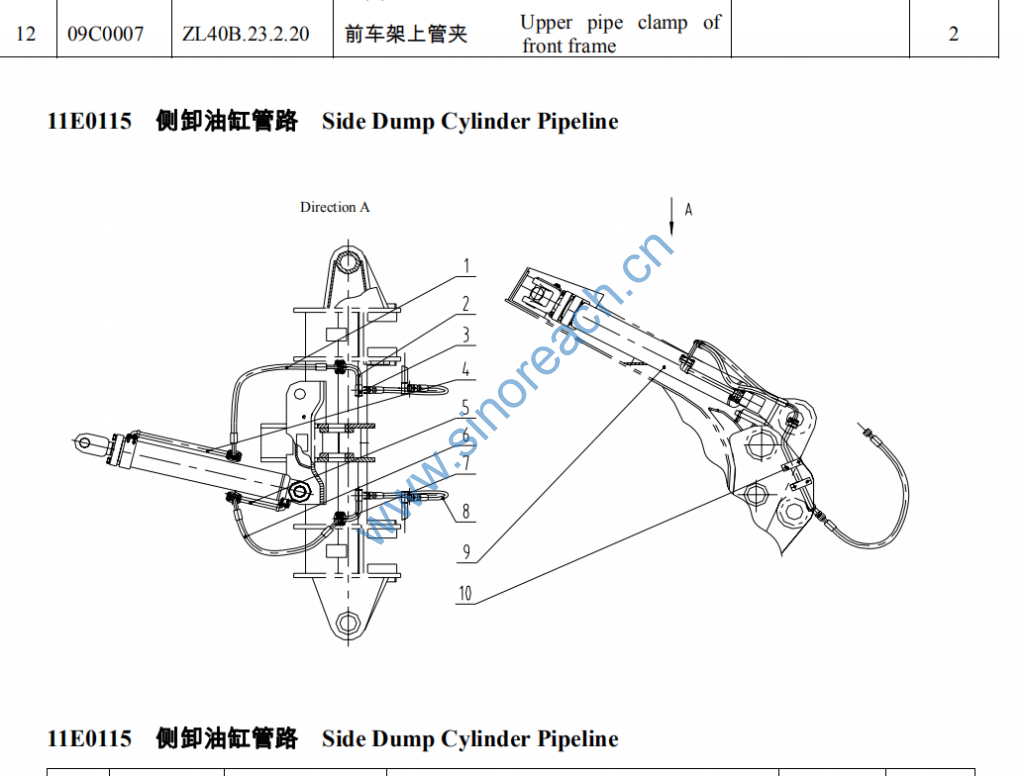

CLG842 11E0115 侧卸油缸管路 Side Dump Cylinder Pipeline

1 06C0120 ZLC50C.25.2 油缸小腔 φ19 软管
φ19 hose of
cylinder small
chamber
1
2 10D0278 ZLC40B.25.6A 通侧卸缸大腔钢管
To big chamber
steel pipe of side
dump cylinder
1
3 31C0013 ZL40B.23.2.11 活动铰接管接头
Movable
articulated pipe
joint
2
4 02C0141 ZLC40B.25.2 接铡卸油缸小腔钢管
To small chamber
steel pipe of side
dump cylinder
1
5 02C0142 ZLC40B.25.3 接侧卸油缸大腔钢管
To big chamber
steel pipe of side
dump cylinder
1
6 06C0121 ZLC50C.25.3 油缸大腔 φ19 软管
φ19 hose of
cylinder big
chamber
1
Direction A
308
7 10D0279 ZLC40B.25.7A 通侧卸缸小腔钢管
To small chamber
steel pipe of side
dump cylinder
1
8 06C0052 ZL40B.23.2.10 动臂接叉体 5/8″软管
5/8″ hose
connecting
movable arm with
fork
2
9 10C0036 ZLC40B.25.1 侧卸斗油缸 Side dump
cylinder 2
10 09C0059 ZL50.27.2.3 动臂上管板 Upper tube sheet
of movable arm 4
