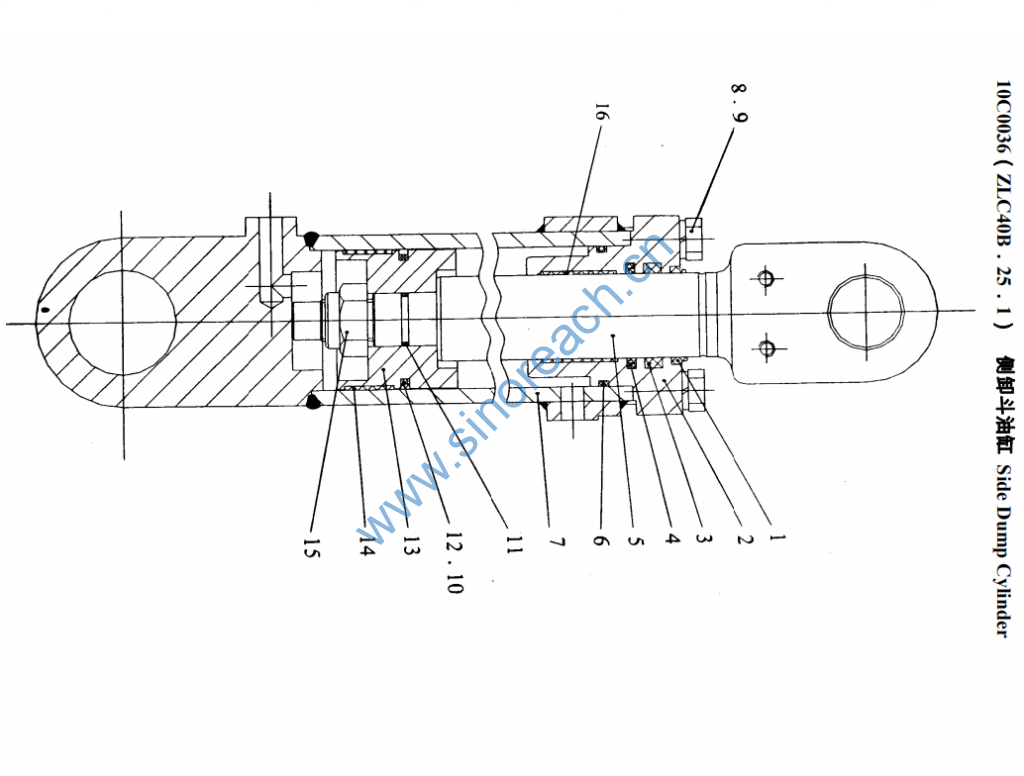

CLG842 10C0036（ZLC40B．25．1） 侧卸斗油缸 Side Dump Cylinder

1 13B0142 GB10708.3-89 防尘圈 Dust ring FB60×70×7 1
2 54A0063 ZLC40B.25.1-5 缸盖 Cylinder head 1
3 13B0143 唇形密封圈 Lip seal KYd60×75×12 1
4 13B0059 GS55013-0600-46K
334-8307 斯特封 HBTS 1
5 14D0016 ZLC40B.25.1.2 活塞杆 Piston rod 1
6 12B0230 GB3452.1-92 O 形圈 O-ring 90×5.3 1
7 13D0058 ZLC40B.25.1.1 缸体 Cylinder body 1
8 00B0338 GB5786-86 螺栓 Bolt M18×1.5×90-10.9-
Zn.D 4
9 06B0014 GB93-87 垫圈 18 Washer 18 4
10 12B0061 GB3452.1-92 O 形圈 O-ring 82.5×5.3 1
11 12B0300 GB3452.1-92 O 形圈 O-ring 31.5×3.55 1
12 80A0004 ZL50C.9.2-12 摩擦环 Friction ring 1
13 50A0029 ZLC40B.25.1-3 活塞 Piston 1
14 85A0095 zl20.10.1-11 支承环 Support ring 1
15 38C0008 CB083034-3 尼龙锁紧螺母 Nylon lock nut 1
16 80A0078 ZLC40B.25.1-4 支承环 Support ring 1
