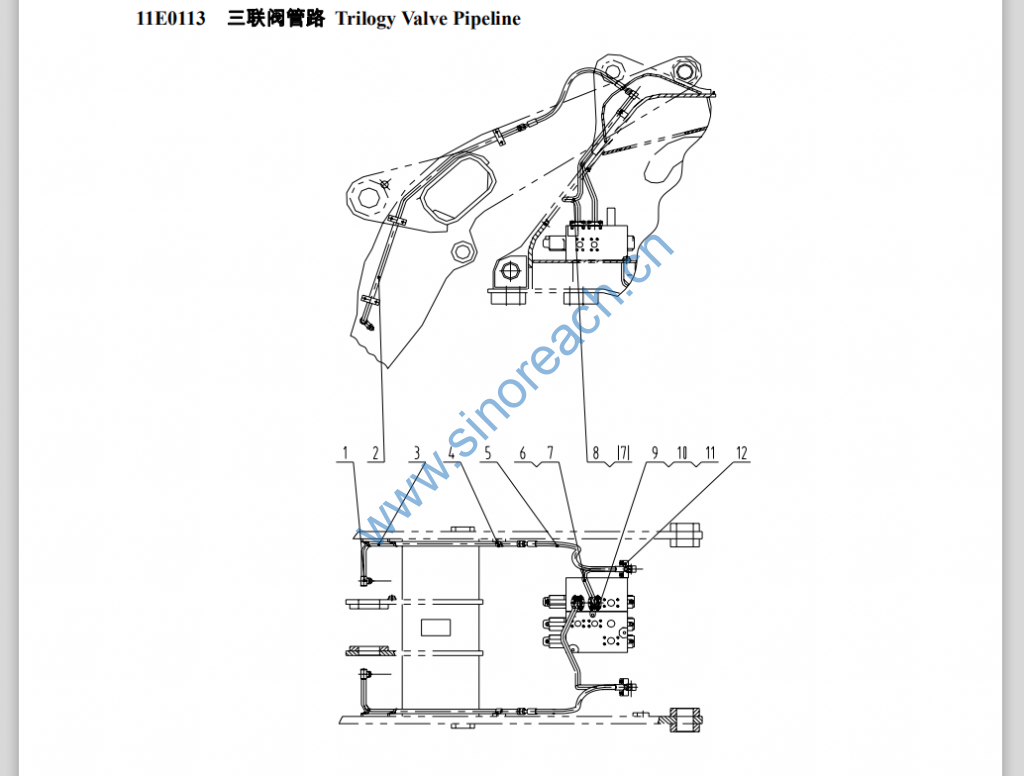

CLG842 11E0113 三联阀管路 Trilogy Valve Pipeline

1 31C0013 ZL40B.23.2.11 活动铰接管接头 Movable articulated
pipe joint 2
2 10D0115 ZL40B.25.3.9
动臂上通油缸左
钢管
Oil cylinder left steel
pipe on movable arm 1
3 10D0114 ZL40B.25.3.8
动臂上通油缸右
钢管
Oil cylinder right steel
pipe on movable arm 1
4 09C0059 ZL50.27.2.3 动臂上管板 Upper tube sheet on
movable arm 6
5 06C0064 ZL40B.23.2.17 动臂上 5/8″软管 5/8″ hose on movable
arm
2
307
6 10D0640 钢管总成 Steel pipe assembly 1
7 12B0287 GB3452.1-92 O 形圈 O-ring 36.5×3.55 2
8 10D0641 钢管总成 Steel pipe assembly 1
9 72A0035 ZL50C.10.9-1 压板 Pressboard 2
10 00B0019 GB5783-86 螺栓 Bolt M10×30-8.8-Zn.D 8
11 06B0002 GB93-87 垫圈 Washer 10 8
12 09C0007 ZL40B.23.2.20 前车架上管夹 Upper pipe clamp of
front frame 2
