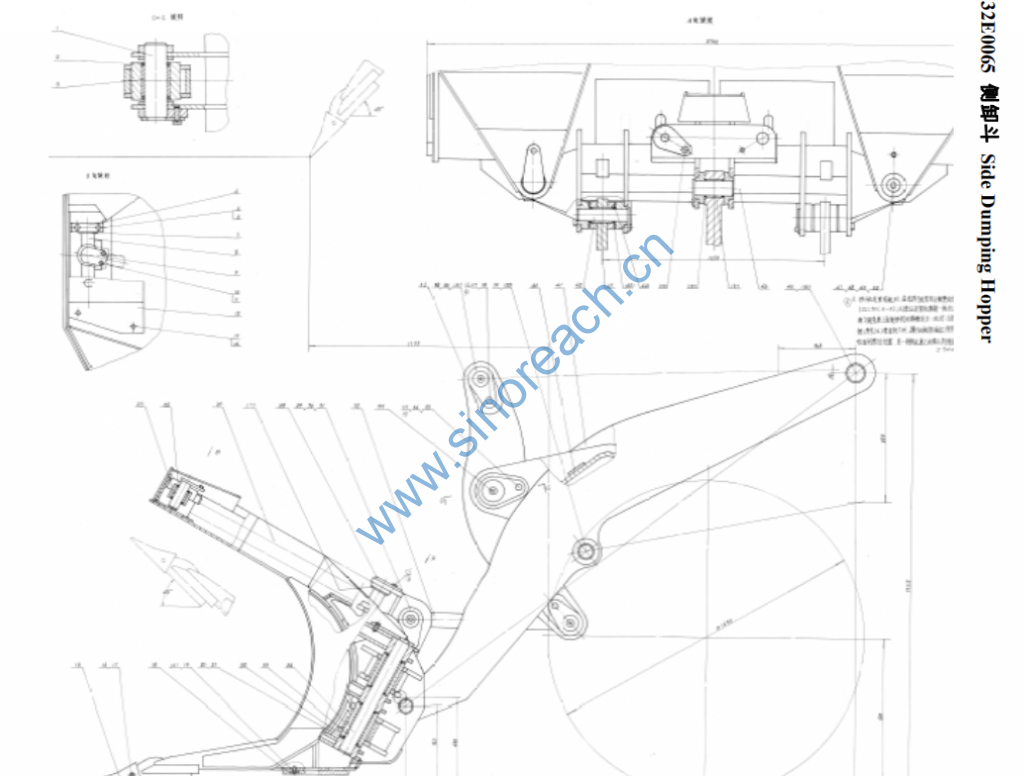

CLG842 32E0065 侧卸斗 Side Dumping Hopper

4 18A0071 ZLC50C.11-1 上支承座 Upper support
seat
2
5 01B0218 GB5782-86 螺栓 Bolt M16×100-8.8-Zn.D 4
6 06B0015 GB93-87 垫圈 Washer 16 14
7 57A0058 ZLC50C.11-2 调整垫 Adjusting
shim
1
8 60A0115 ZLC50C.11-3 轴 Shaft 1
9 11D0045 ZL40B.25.4 缸头销 Cylinder pin 1
10 00B0017 GB5783-86 螺栓 Bolt M12×30-8.8-Zn.D 2
11 06B0008 GB93-87 垫圈 Washer 12 2
12 20A1513 ZLC40B.11-2 罩 Cover 1
13 00B0056 GB5783-86 螺栓 Bolt M10×16-8.8-Zn.D 4
14 06B0001 GB97.1-85 垫圈 Washer 10-140HV-Zn.D 4
15 72A0005 ZL40B.11-4 齿套 Teeth 8
16 60A0009 ZL40B.11-5 销 Pin 8
17 76A0003 ZL40B.11-6 垫圈 Washer 8
18 16A0687 ZLC40B.11-1 底板 Base board 2
19 00B0014 GB5783-86 螺栓 Bolt M16×40-8.8-Zn.D 11
20 57A0138 ZLC40B.11-3 铜垫 Copper pad 8
21 57A0057 ZLC50C.11-5 调整垫 adjustingshim 1
22 35C0013 ZL50C.11.10 密封圈 Seal ring 63×75×8 8
23 55A0176 ZL40B.25-3 下钢套 Lower steel
jacket
4
24 11D0047 铰接销 Hinge pin 2
25 55A0178 ZL40B.25-6 十字轴钢套 Cross steel
jacket
1
26 34C0034 ZL20.11.3 密封圈 Seal ring 2
27 22D0081 铲斗 Bucket 1
28 11D0114 ZLC40B.11.2 销 Pin 1
29 11D0115 ZLC40B.11.4 销轴 Pinshaft 1
33 10B0014 GB1152-89 油杯 Oil cup M10×1 11
37 00B0055 GB5783-86 螺栓 Bolt M20×40-8.8-Zn.D 3
38 06B0019 GB93-87 垫圈 Washer 20 3
42 11D0004 ZL50C.11.11 铲斗下销轴 Lower pin
shaft of
bucket
2
45 00D0541 托架 Bracket 1
47 53A0067 ZL40B.25-8 防护盖 protectivecov
er
4
48 05B0021 ZL40B.25-10 下螺杆 Lower bolt 2
49 03B0021 GB6170-86 螺母 Nut M8-8-Zn.D 4
50 06B0006 GB93-87 垫圈 Washer 8 4
292
53 06B0016 GB97.1-85 垫圈 Washer 20-140HV-Zn.D 3
55 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 1
