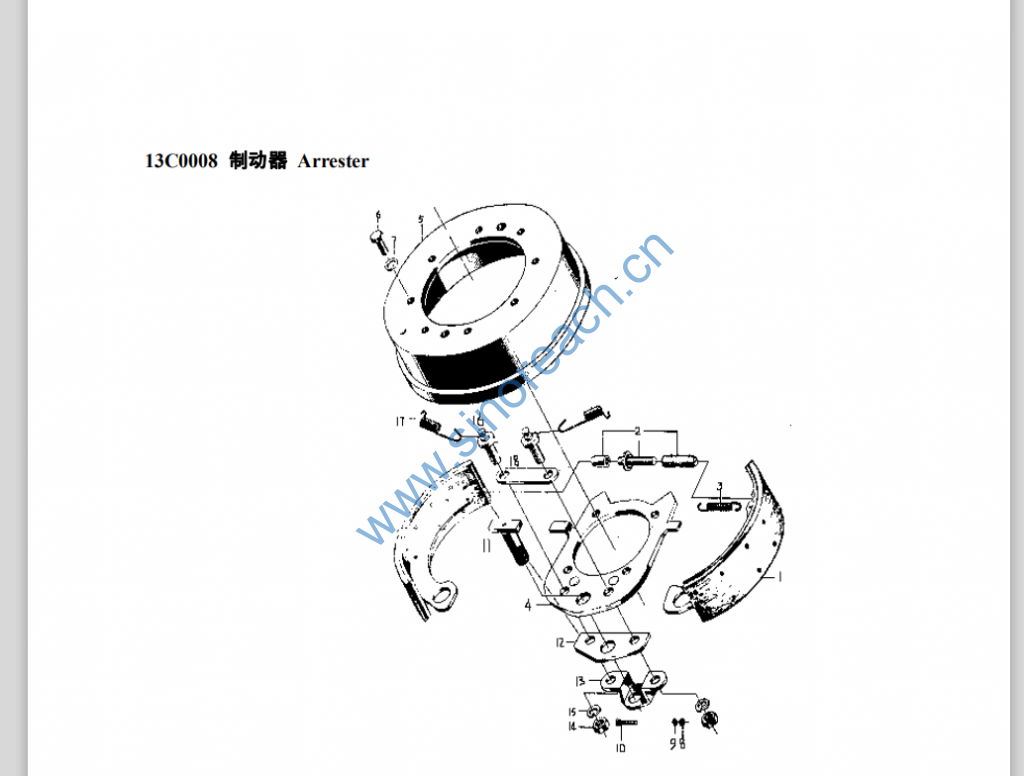

CLG842 13C0008 制动器 Arrester

1 38C0007 ZL50C.13.1.1B 制动蹄总成 Brake shoe
assembly
2
2 45C0001 ZL50C.13.1.2 调整杆总成 Adjusting rod
assembly
1
3 10B0021 ZL50C.13.1-1 弹簧 Spring 1
4 00D0086 ZL50C.13.1.3 座板总成 Base plate assembly 1
5 70A0012 ZL50C.13.1-3 制动鼓 Brake drum 1
6 00B0017 GB5783-86 螺栓 Bolt M12X30-8.8 8
7 06B0008 GB93-87 垫圈 Washer 12 8
8 03B0021 GB6170-86 螺母 Net M8-8 1
9 06B0006 GB93-87 垫圈 Washer 8 1
266
10 00B00070 GB5783-86 螺栓 Bolt M8X45-8.8 1
11 62A0015 ZL50C.13.1-4 拉杆轴 Tie bar shaft 1
12 11A0055 ZL50C.13.1-5 底板 Base plate 1
13 21A0043 ZL50C.13.1-6 支架 Bracket 1
14 03B0095 GB6170-86 螺母 Nut M16-8 2
15 06B0015 GB93-87 垫圈 Washer 16 2
16 05B0011 ZL50C.13.1-8 夹紧螺杆 Stretching screw 2
17 10B0023 ZL50C.13.1-9 弹簧 Spring 2
18 10A0075 ZL50C.13.1-10 垫板 Template 1
