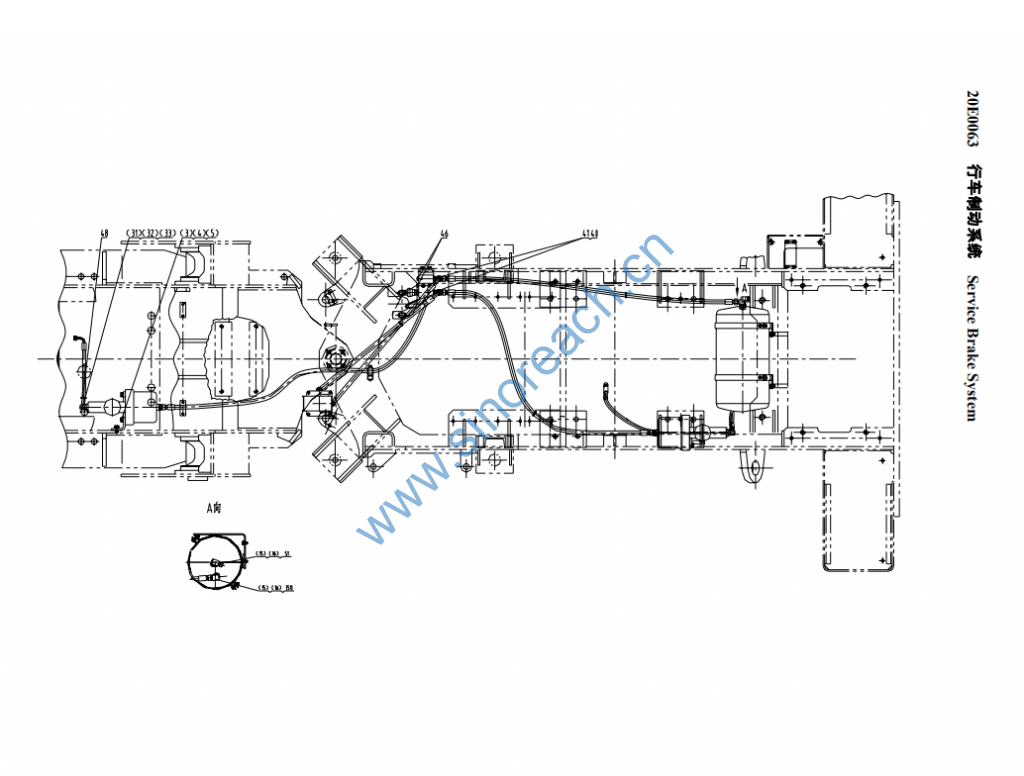

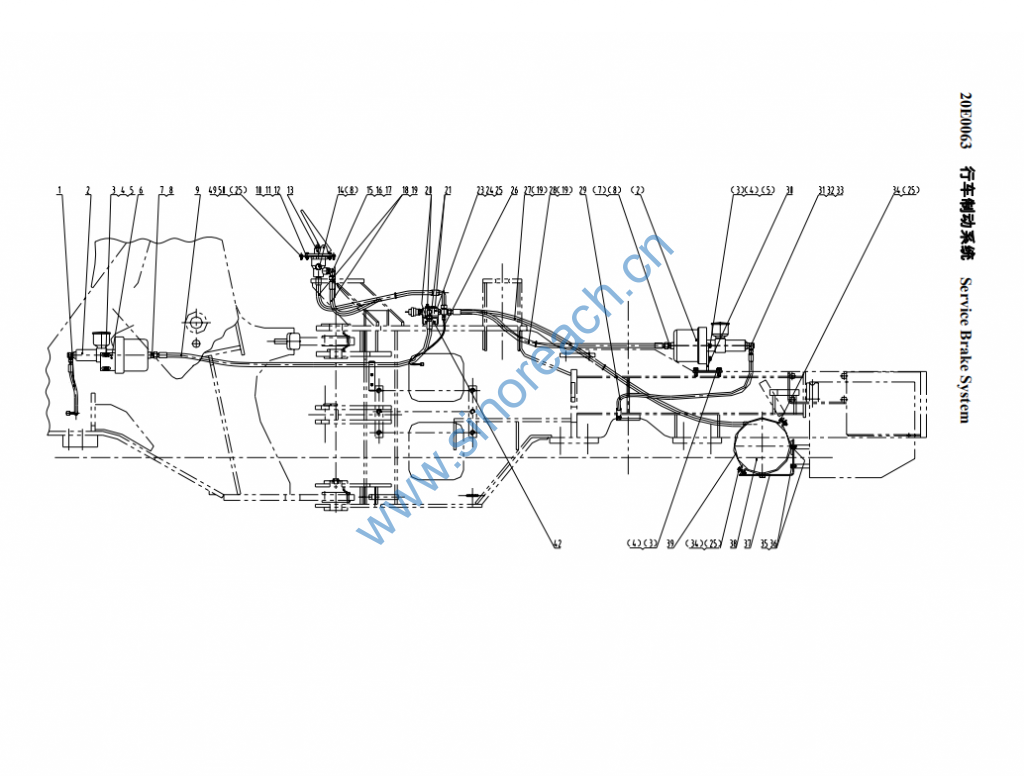

CLG842 20E0063 行车制动系统 Service Brake System

1 05C0158 φ8-1P 高压软管 φ8-1P high pressure
hose 1
2 13C0067 LG40A-3510001/
LG-ZL50/ZJ160D 加力器总成 Assistor assembly 2
3 00B0038 GB5783-86 螺栓 Bolt M14X30-8.8-Zn.D 10
4 06B0013 GB93-87 垫圈 Washer 14 10
5 06B0009 GB97.1-85 垫圈 Washer 14-140HV-Zn.D 8
6 23A1220 ZL40B.12B-11 前加力器安装板 Front assistor
mounting plate 1
7 00A0050 ZL50C.12-6 接头 Joint 2
8 82A0028 ZL50C.12-2 垫 Pad 3
9 03C0002 ZL50C.12.4A 低压软管 L2000 Low pressure hose
L2000 1
10 00B0020 GB5783-86 螺栓 Bolt M8×30-8.8-Zn.D 4
11 06B0006 GB93-87 垫圈 Washer 8 4
12 03B0021 GB6170-86 螺母 Nut M8-8-Zn.D 4
13 13C0004 XM-60C 气制动阀总成 Airbrake valve
assembly 1
14 03B0085 ZL50CI.12-8 堵头 Chock plug 25X2.4 1
15 12B0242 GB1235-76 O 形密封圈 O-ring 4
16 03B0215 ZL50C.12A-20 锁紧螺母 Lock nut 4
17 01A0021 ZL50C.12-1 弯管接头 Joint 2
18 04C0025 低压软管 Hose 2
19 81A0009 ZL50C.12.3-2 垫 Washer 6
20 00A0080 ZL50CI.13-2A 接头 Bend oint 2
21 05A0101 堵头 Chock plug M10X25-8.8-Zn.D 2
22 12B0351 GB1235-76 O 形密封圈 O-ring 16×2.4 2
23 50D0077 接气块总成 To air block assembly 1
24 00B0012 GB5783-86 螺栓 Bolt M10×25-8.8-Zn.D 2
25 06B0002 GB93-87 垫圈 Washer 10 10
26 03C0014 YD450 尼龙管 Nylon hose 1
27
04C0026
Φ12.7-1P 低压软
管
Φ12.7-1P low pressure
hose 1
28 04C0034 ZL50CX.12.1 低压软管 L1700 Low pressure hose
L1700 12 1
29 05C0151 ZL50C.12A.25A 制动软管 I-8-17.5 Brake hose I-8-17.5 1
30 00D0262 加力器支架 Assistor bracket 1
31 12B0365 GB3452.1-92 O 形圈 O-ring 355×5.3 4
32 03A0067 ZJ160D-12 管接头 Bracket 2
33 01B0244 管接头螺栓 Pipe joint bolt 2
34 00B0029 GB5783-86 螺栓 Bolt M10×40-8.8-Zn.D 4
270
35 00B0031 GB5783-86 螺栓 Bolt M12×20-8.8-Zn.D 4
36 06B0008 GB93-87 垫圈 Washer 12 4
37 00D0084 ZL50C.12.19 空气罐内固定圈 Fixed ring inside air
tank 2
38 13C0003 ZL50CI.12.1 空气罐 Air tank 1
39 22A0020 ZL50C.12-14 空气罐外固定圈 Fixed ring outside air
tank 2
40 33C0003 ZL50CIII.12.3 四通接头 Four-way joint 2

41 00A0034 BF25-12A 接头 Joint 2
42 31C0032 ZL50CIII.12.5 直角接头 Right angle
joint 1
46 03B0115 ZL50CI.13-3 堵头 Chock plug 2
48 37B0004 ZD200×5 尼龙扎带 Nylon tape 4
49
11A0505 制动阀安装板（2）
Mounting
plate of brake
valve (2)
1
50 00B0005 GB5783-86 螺栓 Bolt M10×20-8.8-Zn.D 4
51 01A0021 Zl50C.12-1 弯管接头 Bend joint 2
