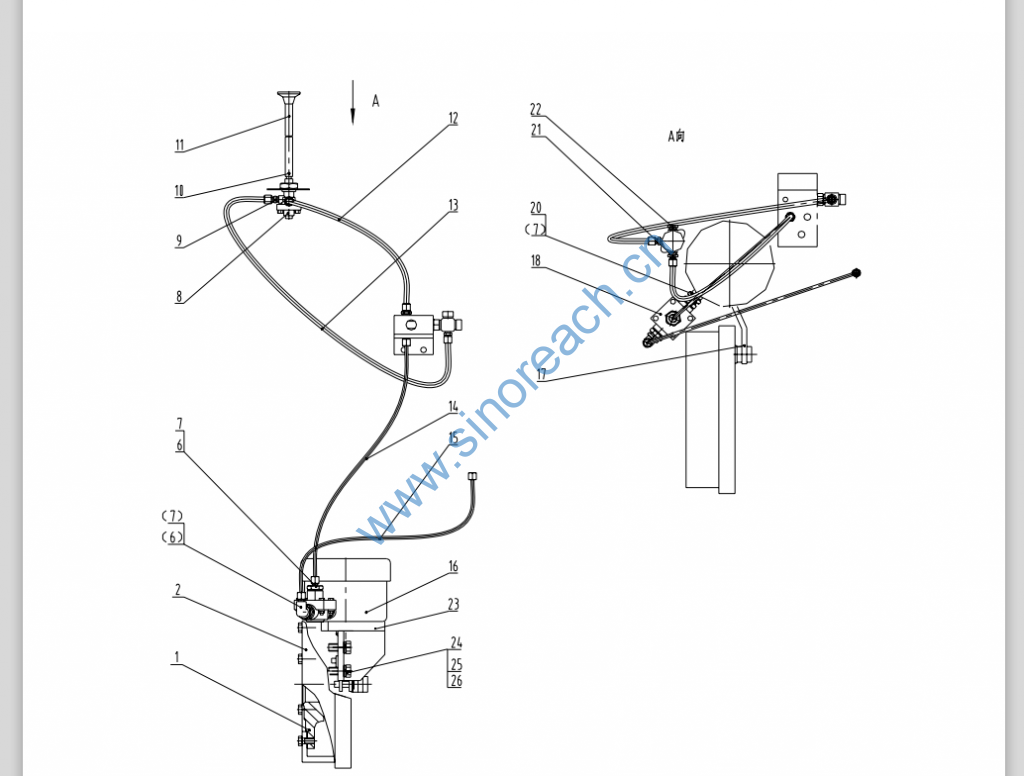

CLG842 21E0007 手制动总成 Manual Brake Assembly

1 04A0009 ZL40B.13.1-1 法兰 Flange 1
2 13C0008 ZL50C.13B.1 制动器 Arrester 1
6 00A0067 ZL50C.13-1A 接头 Joint 2
7 82A0028 ZL50C.12-2 垫 Washer 3
8 13C0025 CJ-15C 紧急制动阀 Emergency brake
valve 1
9 00A0034 BF25-12A 接头 Joint 1
10 08B0028 GB91-86 销 Pin 4X26 1
11 24C0032 拉杆轴总成 Tie bar shaft
assembly 1
12 03C0011 尼龙管 Nylon hose 1
13 03C0045 YD570W 尼龙管 Nylon hose 1
14 03C0041 YD800W 尼龙管 Nylon hose 1
15 03C0040 YD900W 尼龙管 Nylon hose 1
16 13C0009 ZL50C.13.2B 制动气室 Brake chamber 1
17 72A0036 ZL50C.13.1-7 拉杆 Tie bar 1
18 13C0012 JN441 快放阀 Quick release
valve 1
20 30C0049 ZL50C.13B.2 接头 Joint 1
21 00A0080 ZL50C.13-2A 接头 Joint 1
22 03B0115 ZL50C.13-3 堵头 Chock plug 1
23 00D0555 制动气室支座 Brake chamber
bracket 1
24 06B0015 GB93-87 垫圈 Washer 16 2
25 00B0059 GB5783-86 螺栓 Bolt M16×35-8.8-Zn.D 2
26 06B0012 GB97.1-85 垫圈 Washer 16-140HV-Zn.D 2
