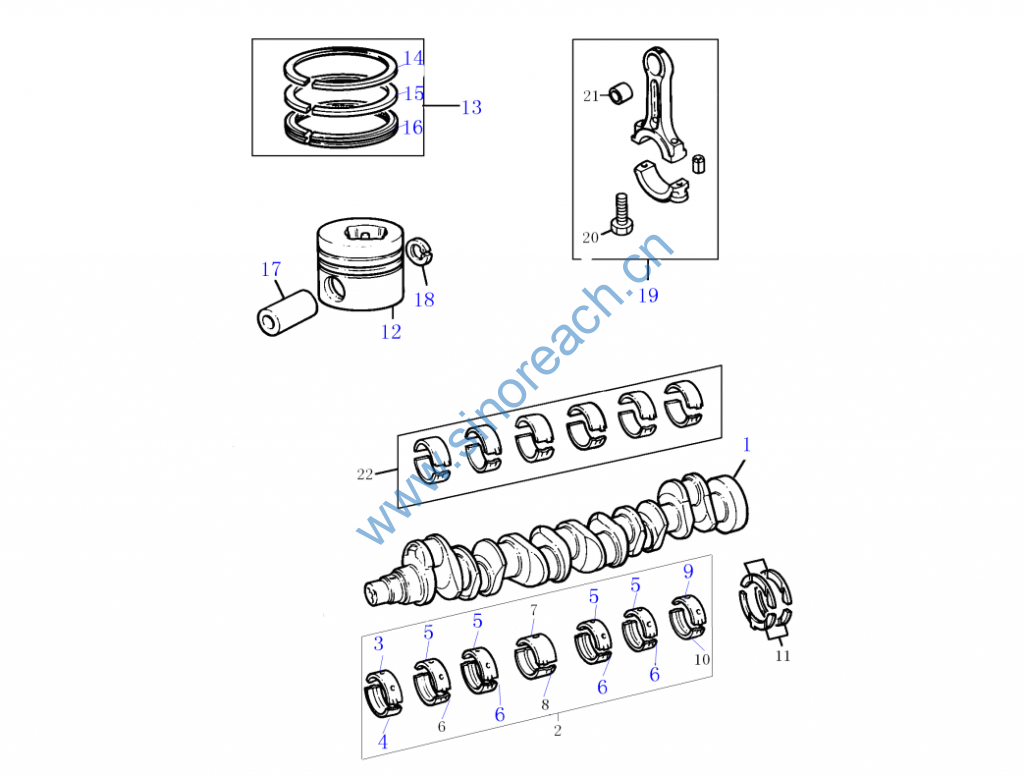

ACHA0277 Crankshaft Pistons & Connecting Rods

1 AC10C 005 T3131H031 曲轴 Crankshaft 1 1 1 1 1 1 1 1 1 1 1 1
1 AC10C 005 T3131H022 曲轴 Crankshaft 1 1 1 1 1 1 1 1 1 1 1 1 1
2 TDU5MB0010 主轴瓦 Bearing Assy. 1 1 1 1 1 1 1 1 1 1 1 1 1
3 AC10C 044 T3111V005 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
4 AC10C 046 T3111V014 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
5 AC10C 049 T3111V005 轴瓦 Bearing 4 4 4 4 4 4 4 4 4 4 4 4 4
6 AC10C 052 T3111V014 轴瓦 Bearing 4 4 4 4 4 4 4 4 4 4 4 4 4
7 AC10C 055 T3111X011 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
8 AC10C 058 T3111X005 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
9 AC10C 061 T3111V005 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
10 AC10C 064 T3111V014 轴瓦 Bearing 1 1 1 1 1 1 1 1 1 1 1 1 1
11 TZZ90001 止推片总成 THrust Washer Assy. 1 1 1 1 1 1 1 1 1 1 1 1 1
12 AC10D 005 T3135J181ETC 活塞 Piston 6 6 6 6 6 6 6 6 6 6 6 6
12 AC10D 005 T72441001ETC 活塞 Piston 6
13 AC10D 008 T4181A026 活塞环 Piston ring 6 6 6 6 6 6 6 6 6 6 6 6 6
14 T3136J051 气环 Compression ring 1 1 1 1 1 1 1 1 1 1 1 1 1
15 T3136X021 气环 Compression ring 1 1 1 1 1 1 1 1 1 1 1 1 1
16 T3137N021 油环 Scraper ring 1 1 1 1 1 1 1 1 1 1 1 1 1
17 AC10D 019 T3313T005 活塞销 Piston pin 6 6 6 6 6 6 6 6 6 6 6 6 6
18 AC10D 022 T2721332 卡簧 Circlip 12 12 12 12 12 12 12 12 12 12 12 12 12
19 AC10D 028 T4115C211 连杆 Conrod assembly 6 6 6 6 6 6 6 6 6 6 6 6 6
20 T32186142 螺栓 Screw 2 2 2 2 2 2 2 2 2 2 2 2 2
21 T3112E005 小头衬套 Small End Bush 1 1 1 1 1 1 1 1 1 1 1 1 1
22 AC10D 056 T31132011 连杆瓦 Bearing 12 12 12 12 12 12 12 12 12 12 12 12 12
