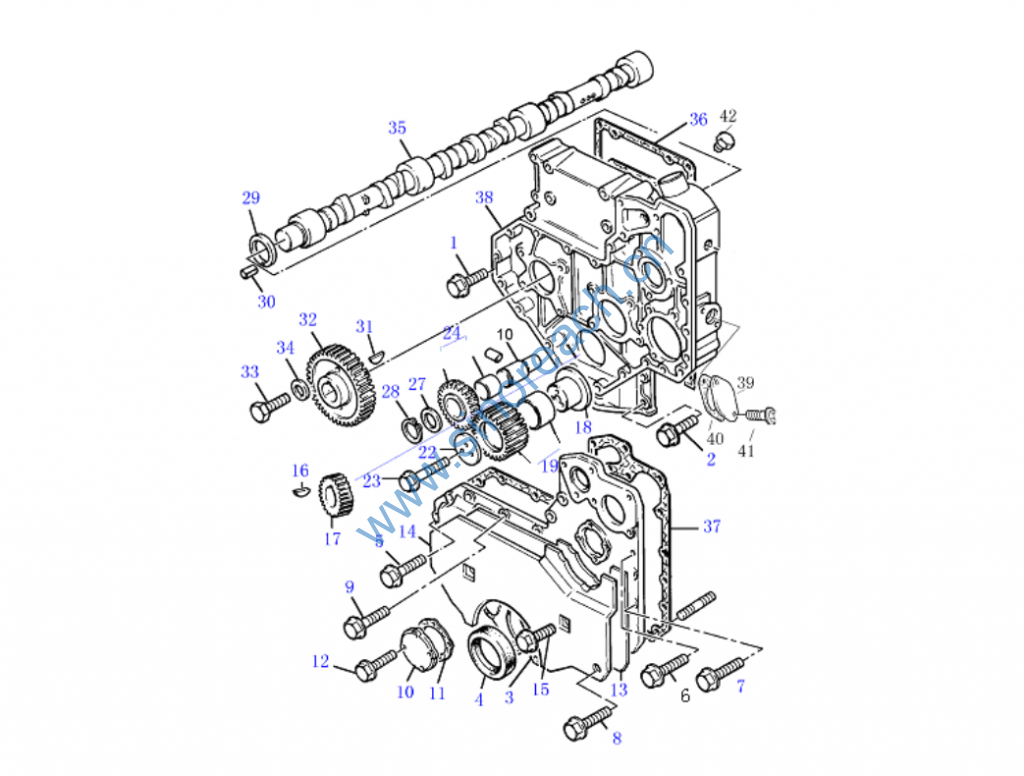

ACHA0277 Timing Gear& Camshaft

1 AC10B 037 T2314H003 螺栓 Screw 8 8 8 8 8 8 8 8 8 8 8 8 8
2 AC10B 040 T2314H004 螺栓 Screw 4 4 4 4 4 4 4 4 4 4 4 4 4
3 AC10B 277 T3716M073 前盖 Front cover 1 1 1 1 1 1 1 1 1 1 1 1 1
4 AC10B 277 T2418F436 密封圈 Seal 1 1 1 1 1 1 1 1 1 1 1 1 1
5 AC10B 316 T2314H005 螺栓 Screw 6 6 6 6 6 6 6 6 6 6 6 6 6
6 AC10B 320 T2314H004 螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1 1
7 AC10B 325 T2314H004 螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1 1
8 AC10B 350 T2314H004 螺栓 Screw 2 2 2 2 2 2 2 2 2 2 2 2 2
9 AC10B 436 T2314H013 螺栓 Screw 6 6 6 6 6 6 6 6 6 6 6 6 6
10 AC10B 508 T3753R211 检查盖 Inspection cover 1 1 1 1 1 1 1 1 1 1 1 1 1
11 AC10B 508 T3682H003A 垫 Joint 1 1 1 1 1 1 1 1 1 1 1 1 1
12 AC10B 511 T2314F006 螺栓 Screw 4 4 4 4 4 4 4 4 4 4 4 4 4
13 AC10B 560 T3781N042 隔音垫 Shield pad 1 1 1 1 1 1 1 1 1 1 1 1 1
14 AC10B 561 T3781N043 隔音板 Shield plate 1 1 1 1 1 1 1 1 1 1 1 1 1
15 AC10B 563 T2314F003 螺栓 Screw 2 2 2 2 2 2 2 2 2 2 2 2 2
16 AC10J 004 T0500012 键 Key 1 1 1 1 1 1 1 1 1 1 1 1 1
17 AC10J 007 T3117C061 齿轮 Gear 1 1 1 1 1 1 1 1 1 1 1 1 1
18 AC10J 013 T33426161A 轮毂 Hub 1 1 1 1 1 1 1 1 1 1 1 1 1
19 AC10J 031 T4111A013 齿轮(组件) Gear assembly 1 1 1 1 1 1 1 1 1 1 1 1 1
22 AC10J 054 T3241H009 板 Plate 1 1 1 1 1 1 1 1 1 1 1 1 1
23 AC10J 069 T2314J010 螺栓 Screw 3 3 3 3 3 3 3 3 3 3 3 3 3
24 AC10J 129 T4111A008 齿轮 Gear 1 1 1 1 1 1 1 1 1 1 1 1 1
27 AC10J 144 T33123125 垫圈 Washer 1 1 1 1 1 1 1 1 1 1 1 1 1
28 AC10J 150 T2722A206 卡簧 Circlip 1 1 1 1 1 1 1 1 1 1 1 1 1
29 AC10J 183 T33153135 盖板 Cover plate 1 1 1 1 1 1 1 1 1 1 1 1 1
30 AC10J 189 T2116053 销子 Dowel 1 1 1 1 1 1 1 1 1 1 1 1 1
31 AC10J 195 T0500012 键 Woodruff key 1 1 1 1 1 1 1 1 1 1 1 1 1
32 AC10J 201 T3117L023 齿轮 Gear 1 1 1 1 1 1 1 1 1 1 1 1 1

33 AC10J 207 T2314J606 螺栓 Screw 1 1 1 1 1 1 1 1 1 1 1 1 1
34 AC10J 214 T3321A003 垫圈 Screw 1 1 1 1 1 1 1 1 1 1 1 1 1
35 AC10J 180 T31416307 凸轮轴 Camshaft 1 1 1 1 1 1 1 1 1 1 1 1 1
36 AC10B 001 T3681P009 垫 Joint 1 1 1 1 1 1 1 1 1 1 1 1 1
37 AC10B 274 T3681P029 垫 Joint 1 1 1 1 1 1 1 1 1 1 1 1 1
38 AC10B 010 T3716C127B 正时齿轮室 Timing case 1 1 1 1 1 1 1 1 1 1 1 1 1
38 AC10B 010 T3716C127E 正时齿轮室 Timing case 1
39 HB10B 585 T3617A001 板 Cover plate 2 2 2 2 2 2 2 2 2 2 2 2 2
40 HB10B 585 T3683H006A 垫 Joint 2 2 2 2 2 2 2 2 2 2 2 2 2
41 HB10B 589 T2314H003 螺栓 Screw 4 4 4 4 4 4 4 4 4 4 4 4 4
42 AC*** T0650586 堵 Plug 1 1 1 1 1 1 1 1 1 1 1 1 1
