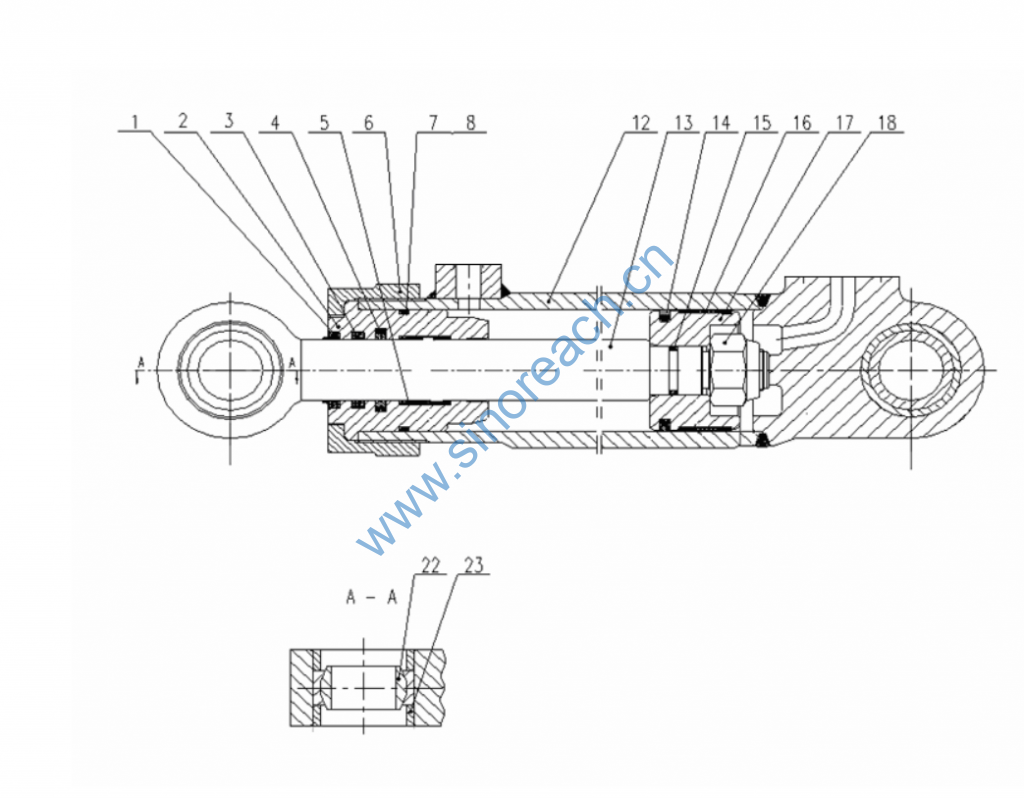

CLG835 10C0055 001 转向油缸 STEERING CYLINDER

1 13B0123 GB10708.3-89 防尘圈 SEAL FB40×50×7 1
2 55A0401 ZL30.9.2A-1 导向套 SUPPORTING
RING 1
3 13B0125 唇形密封圈 SEAL KYD40X5 1
4 34C0029 GS55013-0400-4
6K328-8307 斯特封 SEAL 1
5 80A0109 ZL30.9.2A-2 支承环 SUPPORTING
RING 1
6 53A0190 ZL30.9.2A-3 缸盖 HEAD 1
7 12B0117 GB3452.1-92 O 形圈 “O” RING 73×3.55 1
8 07B0053 ZL30.9.2A-4 挡圈 BAFFLE 1
12 13D0087 ZL30.9.2A.1A 缸体 CYLINDER AS 1
13 61A0194 ZL30.9.2A-7 活塞杆 ROD AS 1
14 34C0031 GS55044-0800-4
6N333-8307 格来圈 SEAL 1
15 12B0271 GB3452.1-92 O 形圈 “O” RING 25.8×3.55 1
16 80A0087 ZL30.9.2A-8 支承环 SUPPORTING
RING 1
17 50A0035 ZL30.9.2A-9 活塞 PISTON 1
18 03B0197 CB082731-3 锁紧螺母 NUT M27×2 1
22 25B0006 GB/T9163-2001 关节轴承
GE40ES BEARING 40×62×28 2
23 76A0024 ZL40B.9.2-9 挡块 BAFFLE 4
