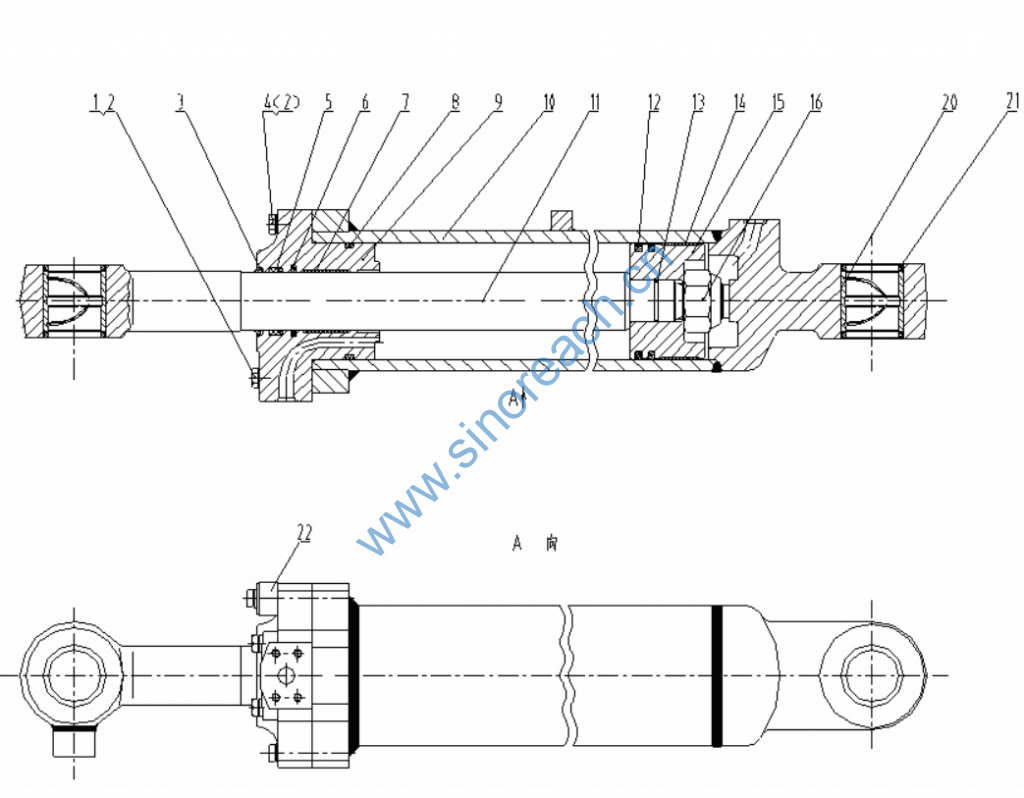

CLG835 10C0071 001 转斗油缸 TILT CYLINDER

1 01B0309 GB5785-86 螺栓 BOLT M20X1.5X100-10.9-Z
N.D 1
2 06B0019 GB93-87 垫圈 WASHER 20 8
3 34C0113 GB10708.3-89 防尘圈 SEAL FB70×80×7 1
4 01B0308 螺栓 BOLT M20X1.5X80-10.9-
ZN.D 4
5 13B0126 GB5785-86 唇形密封圈 SEAL KYD70X10 1
6 34C0030 GS55013-0700-46
K337-8307 斯特封 SEAL 1
7 88A0110 ZL40B.8.6B-33 固定环 SUPPORTIN
G RING 1
8 12B0108 GB3452.1-92 O形圈 “O” RING 128X7 1
9 54A0087 ZL30.10.2-1 缸盖 HEAD 1
10 13D0092 ZL30.10.2.1 缸体 CYLINDER
AS 1
11 14D0029 ZL30.10.2.2 活塞杆 ROD AS 1
12 34C0033 GS55044-1400-46
N426-8307 格来圈 SEAL 2
13 12B0048 GB3452.1-92 O形圈 “O” RING 43.7X3.55 1
14 80A0116 ZL30.10.2-2 支承环 SUPPORTIN
G RING 1
15 50A0049 ZL30.10.2-3 活塞 PISTON 1
16 03B0383 CB084245-3 尼龙锁紧螺母 NUT M42X2 1
20 55A0404 ZL30.10.1-5 衬套 BUSHING 2
21 35C0013 ZL50C.11.10 密封圈 SEAL 63X75X8 4
22 00D0466 支板 PLATE 1
