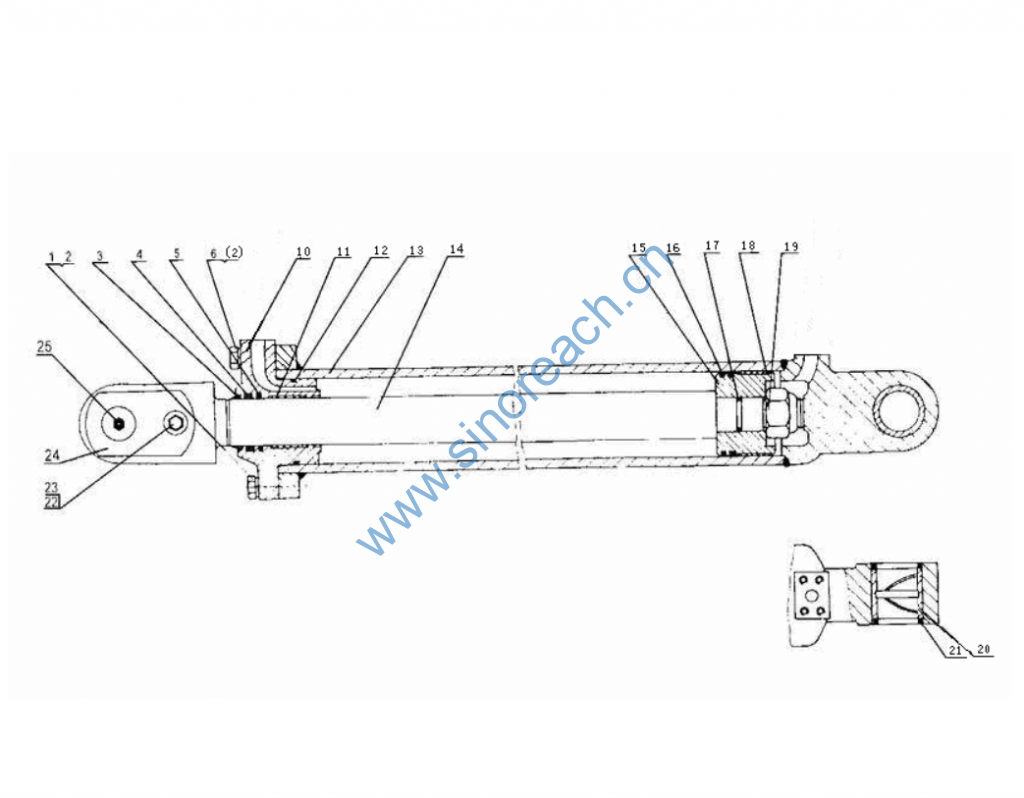

CLG835 10C0056 000 动臂油缸 LIFT CYLINDER

1 01B0233 GB5785-86 螺栓 BOLT M18X1.5X70-10.9-Z
N.D 6
2 06B0014 GB93-87 垫圈 WASHER 18 8
3 34C0113 GB10708.3-89 防尘圈 SEAL FB70×80×7 1
4 13B0126 唇形密封圈 SEAL KYD70×10 1
5 34C0030 GS55013-0700-46K
337-8307 斯特封 SEAL 1
6 01B0307 GB5785-86 螺栓 BOLT M18X1.5X80-10.9-Z
N.D 2
10 53A0192 ZL30.10.1-1 缸盖 HEAD 1
11 80A0110 ZL30.10.1-2 支承环 SUPPORTIN
G RING 1
12 12B0107 GB3452.1-92 O形圈 “O” RING 115X5.3 1
13 13D0088 ZL30.10.1.1 缸体 CYLINDER
AS 1
14 14D0028 ZL30.10.1.2 活塞杆 ROD AS 1
15 50A0047 ZL30.10.1-3 活塞 PISTON 1
16 34C0032 GS55044-1250-46N
1347-830 格来圈 SEAL 2
17 12B0048 GB3452.1-92 O形圈 “O” RING 43.7X3.55 1
18 80A0111 ZL30.10.1-4 支承环 SUPPORTIN
G RING 1
19 03B0383 CB084245-3 尼龙锁紧螺母 NUT M42×2 1
20 55A0404 ZL30.10.1-5 衬套 BUSKING 1
21 35C0013 ZL50C.11.10 密封圈 SEAL 63×75×8 2
22 00B0183 GB5783-86 螺栓 BOLT M18X45-8.8-ZN.D 1
23 11D0016 ZL40B.10.1.3 销轴总成 PIN AS 1
24 56A0050 ZL50C.10.1-9 垫套 BUSHING 1
25 10B0014 GB1152-89 油杯 NIPPLE M10×1 1
