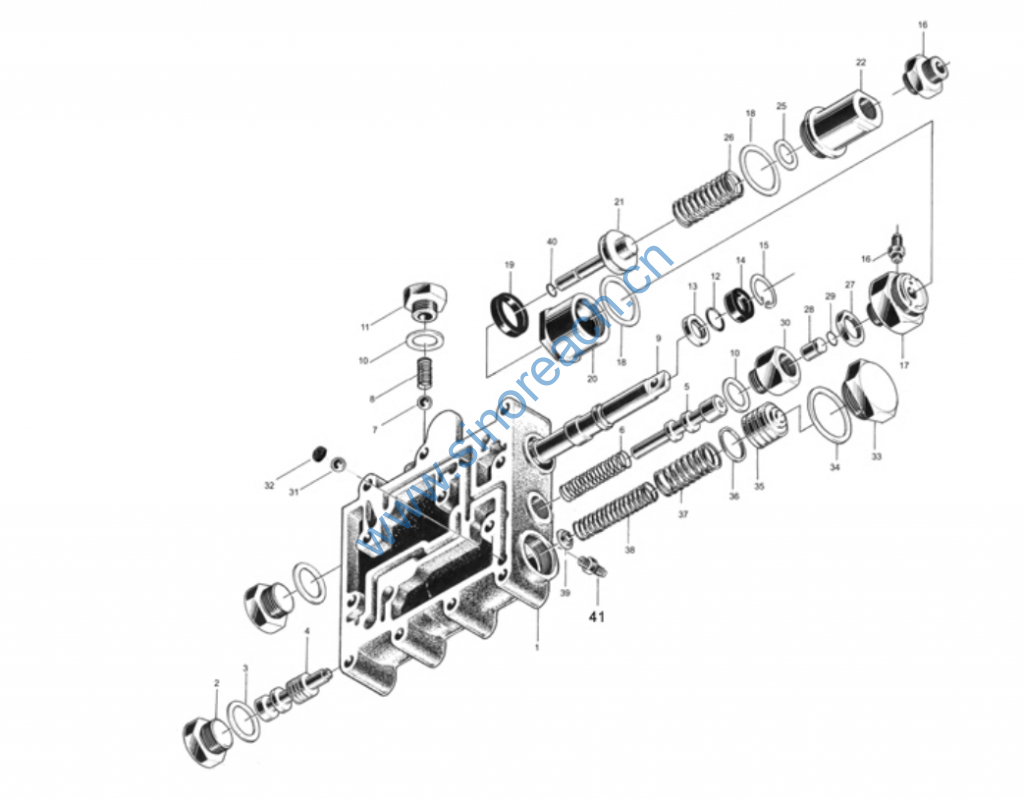

CLG835 12C0103 001 变速操纵阀 TRANSMISSION CONTROL VALVE

1 70A0005 阀体 VALVE BODY 1
2 02B0001 BF25-2 螺栓 BOLT 2
3 12B0379 GB1235-76 O 形圈 “O” RING 30×3.1 2
4 65A0003 BF25-4 减压阀杆 VALVE ROD 1
5 65A0011 BF25-5 刹车阀杆 ROD 1
6 75A0016 BF25-6 弹簧 SPRING 1
7 20B0012 GB308-89 钢球 BALL 12.7 2
8 75A0015 BF25-7 弹簧 SPRING 2
9 65A0012 BF25-8 分配阀杆 ROD 1
10 12B0353 GB3452.1-82 O 形圈 “O” RING 19×2.65 2
11 00B0053 BF25-10 螺塞 BOLT 1
12 12B0040 GB3452.1-82 O 形圈 “O” RING 18×2.65 1
13 55A0075 BF25-11 挡套 SPRING 1
14 13B0130 GB9877.1-88 密封圈 SEAL B18×30×10D 1
15 07B0016 GB893.1-86 挡圈 SNAP RING 30 1
16 00A0034 BF25-12A 接头 CONNECTOR 2
17 15C0002 BF25.1 左阀座 LEFT VALVE
SEAT
1
18 12B0406 GB1235-76 O 形圈 “O” RING 45×3.1 2
19 12B0381 GB1235-76 O 形圈 “O” RING 40×3.1 2
20 78A0005 BF25-15 气阀体 AIR VALVE
BODY
1
21 65A0013 BF25-16 气阀杆 ROD 1
22 78A0041 右阀座 RIGHT VALVE
SEAT
1
25 56A0039 BF25-18 垫 GASKET 1
26 75A0017 BF25-19 弹簧 SPRING 1
27 03B0061 BF25-20 螺母 NUT 1
28 61A0042 BF25-21 圆柱塞 PLUG 1
29 12B0095 GB3452.1-92 O 形圈 “O” RING 10×1.8 1
30 00A0037 BF25-22 接头 CONNECTOR 1
31 20B0006 GB308-89 钢球 BALL 4.7625 1
32 56A0040 BF25-23 圆板 PLATE 1
33 03B0024 BF25-24 螺塞 BOLT 1
35 61A0043 BF25-26 滑块 SLIDING
BLOCK
1
36 56A0041 BF25-27 调压圈 RING 1
37 75A0018 BF25-28 弹簧 SPRING 1
38 75A0019 BF25-29 弹簧 SPRING 1
39 53A0038 BF25-30 弹簧座 SPRING
RETAINER
1
40 12B0036 GB3452.1-92 O 形圈 “O” RING 5.3×1.8 1
41 01A0432 接头 CONNECTOR 1
