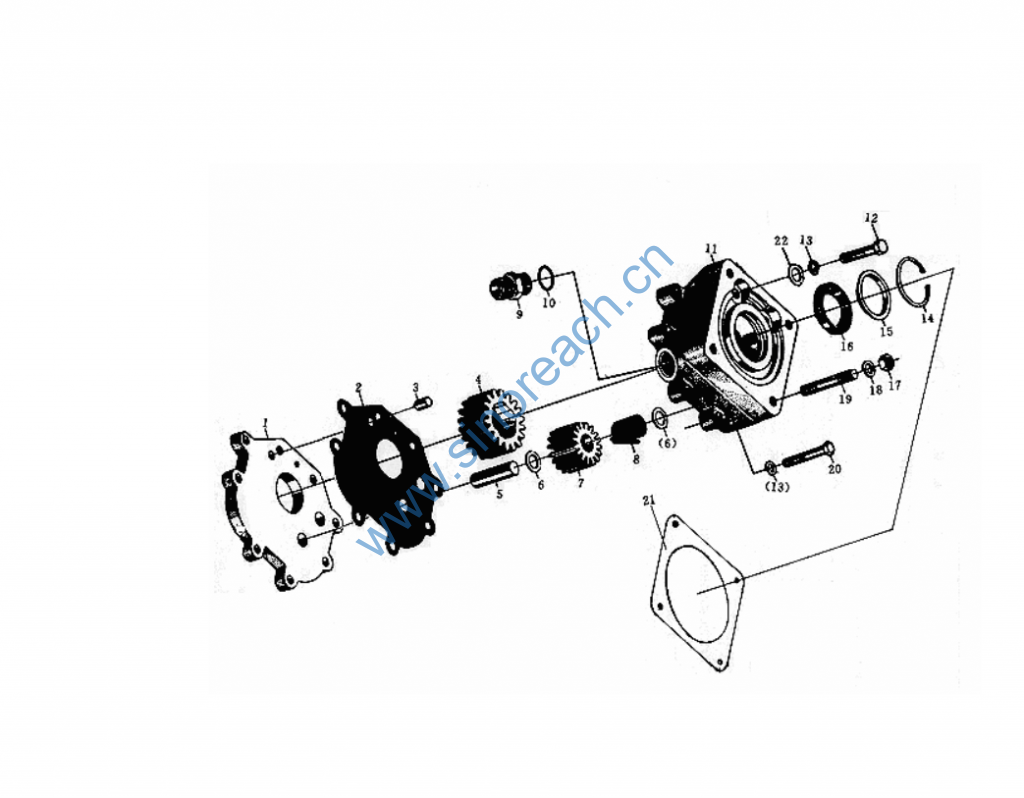

CLG835 11C0001 001 变速泵 CHARGING GEAR PUMP

1 15A0012 泵盖 PUMP COVER 1
2 80A0011 BB70-6 密封垫 GASKET 1
3 60A0020 BB70-7 圆柱销 DOWEL PIN 1
4 41A0008 BB70-5 大齿轮 DRIVE GEAR 1
5 60A0019 BB70-3 轴 SHAFT 1
6 76A0004 BB70-4 挡环 WASHER 2
7 41A0007 BB70-2 小齿轮 DRIVEN
GEAR 1
8 20B0002 GB/T309-2000 滚针 ROLLING
NEEDLE P4×29.8G2 18
9 03A0019 BB70-9 管接头 PIPE JOINT 1
10 12B0144 GB1235-76 O形圈 “O” RING 32×3.1 1
11 70A0003 泵体 PUMP BODY 1
12 01B0033 GB5782-86 螺栓 BOLT M10×80-8.8-ZN.D 2
13 06B0002 GB93-87 垫圈 LOCK
WASHER 10 8
14 07B0014 GB893.1-86 挡圈 SNAP RING 62 1
15 76A0005 BB70-10 挡环 RETAINING 1
16 13B0004 HG4-692-67 油封 OIL SEAL PG45×62×12 1
17 03B0173 GB6172-86 螺母 NUT M12-05-ZN.D 4
18 06B0008 GB93-87 垫圈 LOCK
WASHER 12 4
19 05B0006 GB898-88 螺柱 STUD AM12×35-8.8-ZN.D 4
20 00B0064 GB5782-86 螺栓 BOLT M10×55-8.8-ZN.D 6
21 80A0010 BB70A-2 密封垫片 GASKET 1
22 06B0020 GB97.1-85 垫圈 WASHER 12-200HV-ZN.D 4
