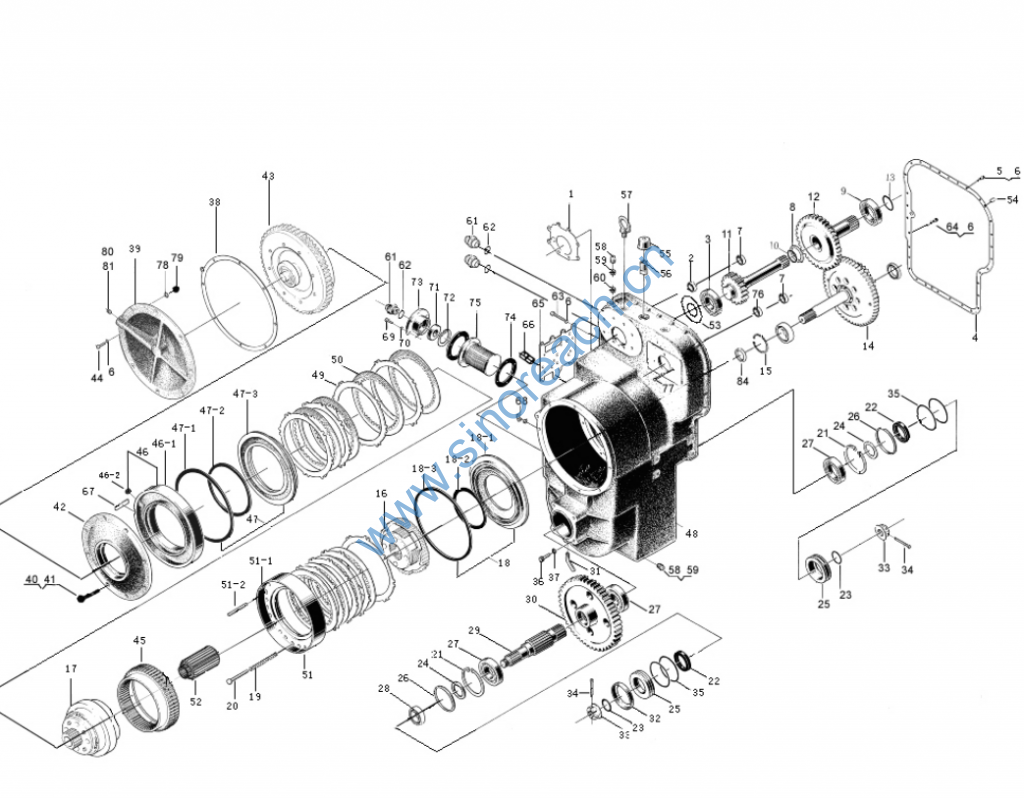

CLG835 42C0035 009 (BS305)变速箱 TRANSMISSION GEARING

1 80A0013 BS305-1 密封垫片 GASKET 1
2 21B0005 GB/T276-1994 球轴承 6012 BALL BEARING 60×95×18 1
3 21B0006 GB/T276-1994 球轴承 6311 BALL BEARING 55×120×29 1
4 80A0014 BS305-2 密封圈 GASKET 1
5 00B0002 GB5783-86 螺栓 BOLT M10×35-8.8-ZN.D 26
6 06B0002 GB93-87 垫圈 WASHER 10 56
7 21B0023 日本
NSK6210N BALL BEARING 6210NR 2
8 26B0002 GB/T301-1995 推力球轴承
51111 BALL BEARING 55×78×16 1
9 21B0007 GB/T276-1994 球轴承 6016 BALL BEARING 80×125×22 1
10 80A0015 BS305-4 油封环 SEAR RING 1
11 40A0004 BS305-5 输入一级齿轮 1ST.TURBINE
DRIVING GEAR 1
12 40A0005 BS305-6 输入二级齿轮 SEC.TURBINE
DRIVING GEAR 1
13 80A0016 BS305-7 油封环 SEAL RING 1
14 52C0071 超越离合器 CLUTCH 1
15 07B0011 GB893.1-86 挡圈 SNAP RING 90 1
16 42C0094 倒档行星架组
件
REVERSE
RANG
PLANETARY
CARRIER
ASSEM
1
17 42C0092 一档行星架组
件
LOW RANGE
PLANETARY
CARRIER
ASSEM
1
18 42C0013 BS305.13 倒挡活塞总成 REVERSE
PISTON 1
18-1 50A0005 BS305.13-1 活塞体 PISTON 1
18-2 80A0026 BS305.13-2 内密封圈 “O” RING 1
18-3 50A0024 BS305.11-1 外密封圈 “O” RING 1
19 75A0009 BS305-54 弹簧 SPRING 15
20 60A0036 BS305-53 弹簧销轴 GUIDE PIN 15
21 07B0009 GB893.1-86 挡圈 SNAP RING 130 2
22 13B0169 油封 SEAL 70×95×13 2
23 12B0105 GB3452.1-92 O 形圈 “O” RING 42.5×5.3 2
24 55A0061 隔套 SPACER 2
25 71A0117 油封座 SEAL SEAT 2
26 56A0027 BS305-28 垫圈 1ST.TURBINE
DRIVEN GEAR 2
27 21B0008 GB/T276-1994 球轴承 6312 BALL BEARING 60×130×31 3
28 55A1094 轴套 SPACER 1
29 62A0011 输出轴 OUTPUT SHAFT 1
30 41A0044 输出轴齿轮 OUTPUT SHAFT
GEAR 1

31 01A0014 BS305 泄油管 DRAIN TUBE 1
32 53A0027 BS305-30 挡油盖 OIL RETAINER 1
33 03B0050 BS305-31 带槽螺母 GASKET 2

34 08B0032 GB91-86 销 PIN 6.3×60-ZN.D 2
35 12B0034 GB3452.1-92 O 形圈 “O” RING 122×3.55 4
37 06B0013 GB93-87 垫圈 WASHER 14 4
38 80A0098 密封垫 GASKET 1
39 53A0171 端盖 END COVER 1
40 00B0121 GB5786-86 螺栓 BOLT M12×1.5×35-10.9-
ZN.D 8
41 06B0008 GB93-87 垫圈 WASHER 12 8
42 53A0029 BS305-35 中盖 MEDIUM COVER 1
43 42C0102 直接档组件
DIRECT DRIVE
CLUTCH PISTON
ASSEMBLY
1
44 00B0019 GB5783-86 螺栓 BOLT M10×30-8.8-ZN.D 8
45 41A0013 一档内齿圈 LOW RANGE
RING GEAR 1
46 42C0011 BS305.9 一挡油缸总成 LOW RANGE
CYLINDER 1
46-1 39A0006 BS305.9-2 缸体 CYLINDER 1
46-2 80A0023 BS305.9-1 油封 SEAL 1
47 42C0012 BS305.11 一档活塞总成 LOW RANGE
PISTON 1
47-1 80A0024 BS305.11-1 外密封圈 “O” RING 1
47-3 50A0004 BS305.11-2 活塞体 PISTON 1
47-2 80A0025 BS305.13-3 内密封圈 “O” RING 1
48 52C0006 箱体 TRANSMISSION
HOSING 1
49 56A0030 倒档一档从动
片
REVERSE &
LOW RANGE
REACTION
PLATE
8
50 37C0002 倒挡一档主动
片总成
REVERSE &
LOW GANGE
REACTION
PLATE ASSEM
8
51 52C0005 BS305.2 摩擦片隔离架
总成
SPACER
ASSEMBLY 1
51-1 55A0065 摩擦片隔离架 SPACER 1
51-2 60A0045 圆柱销 PIN 8
52 41A0009 BS305-13 太阳轮 GEAR 1
53 28C0089 调整垫组件 ADJUSTING
SHIM SET 1
54 60A0037 BS305-55 圆柱销 PIN 2
55 42C0014 BS305.14 透气盖总成 BLEEDING
COVER ASSEM 1
56 10D0023 BS305.15 透气管 BLEEDING TUBE 1
57 04B0087 GB825-88 螺钉 BOLT M20 2

58 05A0008 ZL50C.3.3-24 堵头 PLUG 2
59 12B0379 GB1235-76 O 形圈 “O” RING 30×3.1 2
60 60A0038 BS305-57 圆柱堵塞 CYLINDRICAL
PLUG 1
61 03A0019 BB70-9 管接头 CONNECTOR 3
62 12B0144 GB1235-76 O 形圈 “O” RING 32×3.1 3
64 01B0028 GB5782-86 螺栓 BOLT M10×75-8.8-ZN.D 3
65 82A0025 BS305-58 密封垫 GASKET 1
66 60A0040 BS305-59 圆柱销 PIN 1
67 10A0065 固定板 PLATE 1
68 43B0006 2105 型 放水塞 BOLT NPT1/4 2
69 00B0020 GB5783-86 螺栓 BOLT M8×30-8.8-ZN.D 6
70 06B0006 GB93-87 垫圈 LOCK WASHER 8 6
71 43B0003 磁铁 MAGNET Φ69×Φ31×14 1
72 07B0012 GB893.1-86 挡圈 SNAP RING 70 1
73 53A0030 BS305-61 压盖 RETAINING
PLATE 1
74 56A0032 BS305-62 垫片 GASKET 2
75 53C0027 YLX-57 滤油器 STRAINER 1
76 21B0013 GB/T276-1994 球轴承 6010 BALL BEARING 50×80×16 1
77 04B0022 GB70-85 螺钉 SCREW M10×25-8.8-ZN.D 4
78 55A0063 BS305-67 隔圈 SPACER 1
79 12B0035 GB3452.1-92 O 形圈 “O” RING 15×2.65 1
80 03B0080 FPF32-20 螺塞 PLUG 1
81 12B0351 GB1235-76 O 形圈 “O” RING 16×2.4 1
82 74A1170 变速箱铭牌 NAMEPLATE 1
83 09B0002 GB827-86 铆钉 RIVET 2×5 4
84 55A0060 BS305-12 间隔套 SPACER 1
