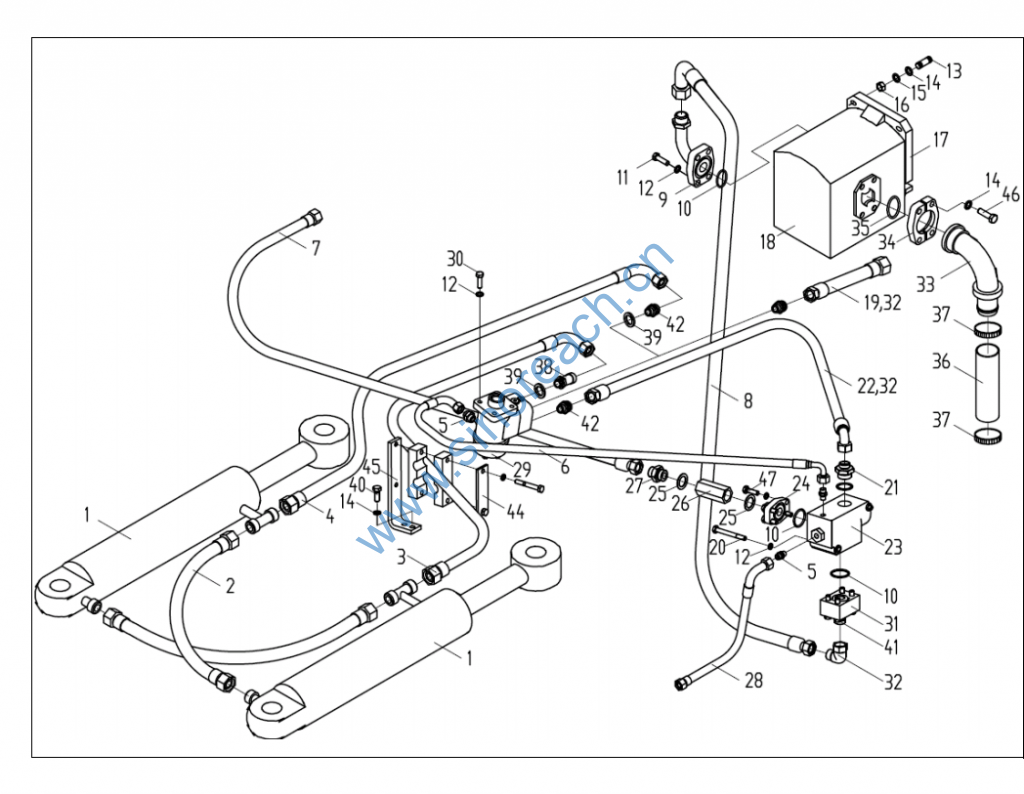

LW500F 转向液压系统 9365313 Steering Hydraulic System

1 5004452 转向油缸 Cylinder 2
2 9345140 软管总成 Hose 2
3 9365341 软管总成 Hose 1
4 9365342 软管总成 Hose 1
5 5003167 接头 Connector 3 I08LM12X1.5E
6 9360819 软管总成 Hose 1
7 9360820 软管总成 Hose 1
8 9360861 软管总成 Hose 1
9 9343962 转向泵出油钢管 Tube 1
10 4827038 0 形圈 40X3.55 O-Ring 3 GB3452.1-1992
11 4005055 螺栓 M10X35 Bolt 4 GB5783-86
12 4401008 垫圈 10 Lock Washer 18 GB93-87
13 4005068 螺柱 M12X35 Bolt 4 GB899-88
14 4401009 垫圈 12 Lock Washer 8 GB93-87
15 4404010 垫圈 12 Washer 4 GB97.1-85
16 4301010 螺母 M12 Nut 4 GB6170-86
17 9330392 密封垫 Seal Packing 1
18 5002029 转向油泵 Steering Pump 1
19 9360862 软管总成 Hose 1
20 4004038 螺栓 M10X90 Bolt 2 GB5782-86
21 9343965 接头 Connector 1
22 9360863 软管总成 Hose 1
23 5001898 优先型流量控制阀 Valve 1
24 9360864 接头块 Joint 1
25 4829008 垫圈 27 Washer 2 Q/SC1294-2000

26 5001376 单向阀 Valve 1
27 9332305 接头 Connector 1
28 9365313 软管总成 Hose 1
29 5002953 转向器总成 Steering Control Unit 1
30 4005061 螺栓 M10X65 Bolt 4 GB5783-86
31 9343961 接头块 Joint 1
32 5003679 接头 Connector 4
33 9348201 转向泵吸油管 Tube 1
34 9319316 分离式法兰 Split Flange 1
35 4827040
O 形密封圈
42.5X3.55 O-Ring 1
GB3452.1-1992
36 4681042 胶管 B 38X470 Hose 1 JB/T 8406-2001
37 4A05007 双钢丝喉箍 50-55 Clamp 2 JB3616.1-1984
38 9365339 接头 Connector 1
39 4829005 垫圈 20 Washer 4 Q/SC1294-2000
40 9343954 铰接接头 Hinge 2
41 4004033 螺栓 M10X55 Bolt 4 GB5782-86
42 5004082 接头 Connector 2
44 9357898 管夹 Pipe Clamp 1
45 9365340 支板 Plank 1
46 4102104 螺栓 M12X35 Bolt 4 GB5783-86
47 4204095 螺钉 M10X30 Bolt 4 GB70-85
