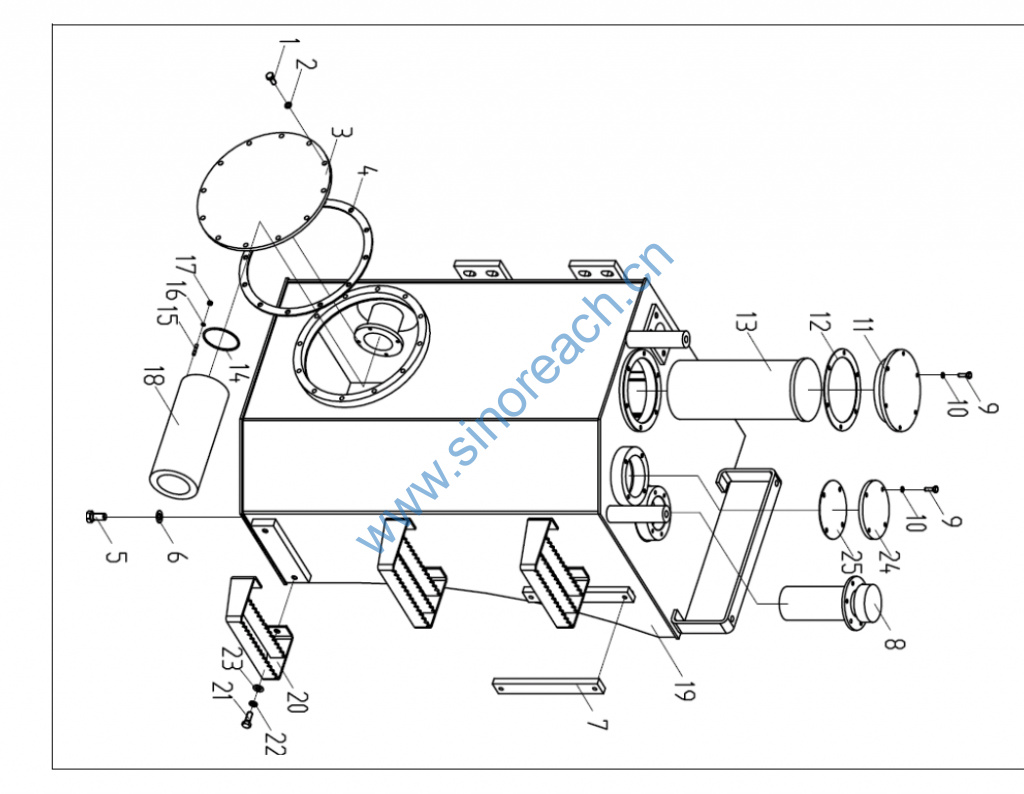

LW500F 液压油箱 9365325 Hydraulic Tank

4005053 螺栓 M10X25 Bolt 12 GB5783-86
2 4401008 垫圈 10 Lock Washer 12 GB93-87
3 9316012 盖板 Cover 1
4 9316013 垫片 Washer 1
5 4005095 螺栓 M16X25 Bolt 1 GB5783-86
6 4829003 垫圈 16 Washer 1 Q/SC1294-2000
7 5000050 液位计 Gauge Assy Level 1 YWZ-250
8 5002151 加油滤清器 Filter Assy 1
9 4005041 螺栓 M8X25 Bolt 10 GB5783-86
10 4401007 垫圈 8 Lock Washer 10 GB93-87
11 9355621 盖板 Cover 1
12 9355622 垫片 Washer 1
13 5004947 回油滤清器 Filter Assy 1
14 4827043 O 形密封圈 82.5X3.55 “O”Ring 1 GB3452.1-1992
15 4103165 螺柱 M6X30 Bolt 4 GB901-88
16 4401006 垫圈 6 Lock Washer 4 GB93-87
17 4301007 螺母 M6 Nut 4 GB6170-86
18 5000415 吸油滤清器 Filter Assy 1
19 9365326 油箱体 Tank 1
20 9365373 脚蹬 Foot step 1
21 4005067 螺栓 M12X30 Bolt 2 GB5783-86
22 4401009 垫圈 12 Lock Washer 2 GB93-87
23 4404010 垫圈 12 Washer 2 GB97.1-85
24 9318068 盖板 Cover 1
25 9318071 垫片 Washer 1
