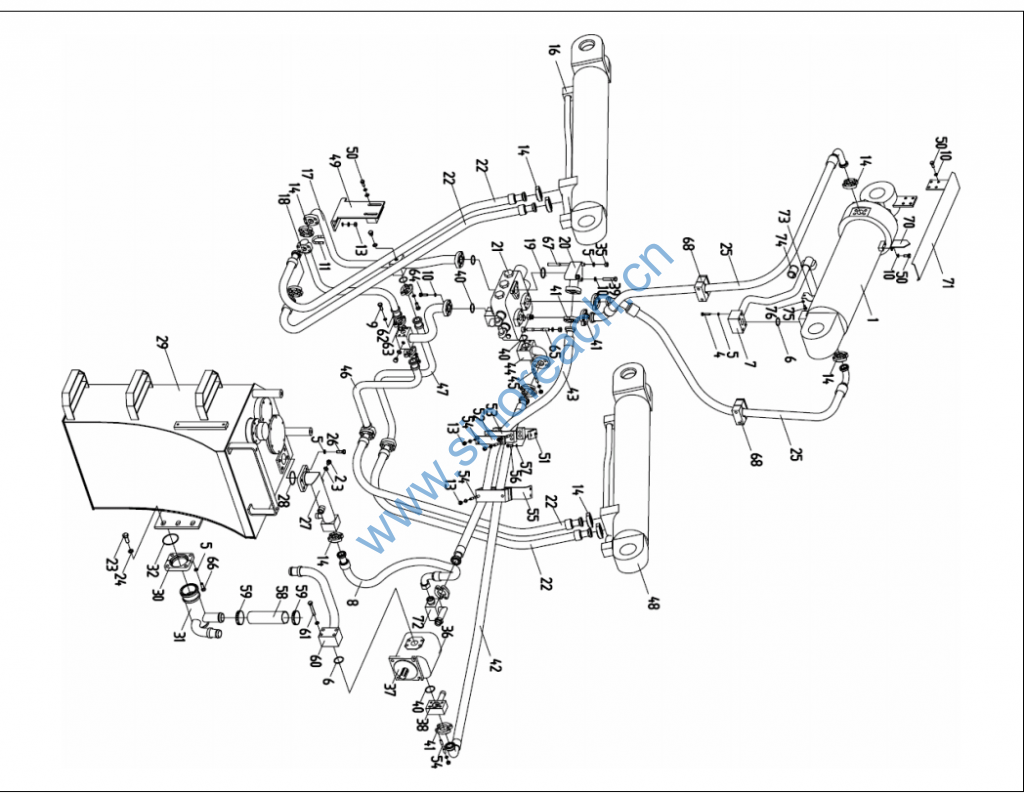

LW500F 工作液压系统 9365312 Working Hydraulic System

1 9360235 翻斗油缸 Cylinder 1 XGYG01-137
2 4614004 螺塞 14X1.5 Plug 4 JB1000-77
3 4829002 垫圈 14 Ring 4 Q/SC1294-2000
4 4005075 螺栓 M12X70 Bolt 8 GB5783-86
5 4401009 垫圈 12 Lock Washer 24 GB93-87
6 4827040 O 形密封圈 42.5X3.55 O- Ring 3 GB3452.1-1992
7 9365314 钢管 Tube 1
8 9365315 胶管总成 Hose 1
9 4005054 螺栓 M10X30 Bolt 12 GB5783-86
10 4401008 垫圈 10 Lock Washer 51 GB93-87
11 9351746 U 形螺栓 U-Bolt 6 TL008007
12 4404009 垫圈 10 Washer 16 GB97.1-85
13 4301009 螺母 M10 Nut 20 GB6170-86
14 5003278 法兰组件 Split Flange 10
15 9369743 胶管总成 Hose 2
16 9360815 左动臂油缸 Boom Cylinder 1
17 9369734 钢管 Tube 1
18 9369736 钢管 Tube 1
19 4801034 O 形密封圈 50X3.1 O- Ring 1 GB1235-76
20 9360643 回油钢管 Tube 1
21 5005265 多路阀 Valve 1
22 9369738 软管总成 Hose 2
23 4005097 螺栓 M16X40 Bolt 7 GB5783-86
24 4401011 垫圈 16 Lock Washer 7 GB93-87
25 9365317 胶管总成 Hose 1
26 4005068 螺栓 M12X35 Bolt 8 GB5783-86

27 9365318 回油钢管 Tube 1
28 4827039 O 形密封圈 61.5X3.55 O-Ring 1 GB3452.1-1992
29 9365325 液压油箱 Tank 1
30 9355720 分离式法兰 Split Flange 1
31 9360653 吸油钢管 Tube 1
32 4827098 O 形密封圈 75X3.55 O-Ring 1 GB3452.1-1992
33 4102104 螺柱 M12X35 Bolt 4 GB899-88
34 4404010 垫圈 12 Washer 4 GB97.1-85
35 4301010 螺母 M12 Nut 8 GB6170-86
36 5005266 工作泵 Gear pump 1 CBGj2080B
37 9330392 密封垫 Seal packing 1
38 9360658 出油钢管 Tube 1
39 4005061 螺栓 M10X65 Bolt 5 GB5783-86
40 4827038 O 形密封圈 40X3.55 O-Ring 2 GB3452.1-1992
41 5003025 法兰组件 Flange 6
42 9365332 软管总成 Hose 1
43 9365331 软管总成 Hose 1
44 9360802 钢管 Tube 1
45 4103248 螺柱 M10X85 Bolt 4 GB901-88
46 9360805 钢管 Tube 1
47 9360807 钢管 Tube 1
48 9360816 右动臂油缸 Cylinder 1
49 9360814 支板 Plank 2
50 4005053 螺栓 M10X25 Bolt 8 GB5783-86
51 9352853 支板 Plank 1

52 9351874 压板 Plank 1
53 9351875 橡胶板 Rubber Plate 4
54 4103251 螺柱 M10X100 Bolt 8 GB901-88
55 9351876 支板 Plank 1
56 4005041 螺栓 M8X25 Bolt 4 GB5783-86
57 4401007 垫圈 8 Lock Washer 4 GB93-87
58 4681050 胶管 B 45X540 Hose 1 JB/T 8406-2001
59 4A05013 双钢丝环箍 55-60 Clamp 2 JB3616.1-1984
60 9360809 吸油钢管 Tube 1
61 4005076 螺栓 M12X80 Bolt 4 GB5783-86
62 9351750 分离式法兰 Split Flange 3 TL011002
63 4827041 O 形密封圈 34.5X3.55 O-Ring 3 GB3452.1-1992
64 4005055 螺栓 M10X35 Bolt 8 GB5783-86
65 4103285 螺柱 M12X120 Bolt 2 GB901-88
66 4005069 螺栓 M12X40 Bolt 4 GB5783-86
67 4103293 螺柱 M12X200 Bolt 2 GB901-88
68 9327127 管夹 Pipe Clamp 2
69 9360812 翻斗缸后腔钢管 Tube 1
70 9360236 指针 Index 1
71 9365334 护罩 Cover 1
72 9366693 接头块 Tube 1
73 9356208 管夹 Pipe Clamp 1
74 9356209 橡胶管夹 Pipe Clamp 1
75 4005039 螺栓 M8X16 Bolt 2 GB5783-86
76 4404012 垫圈 16 Lock Washer 7 GB97.1-85
