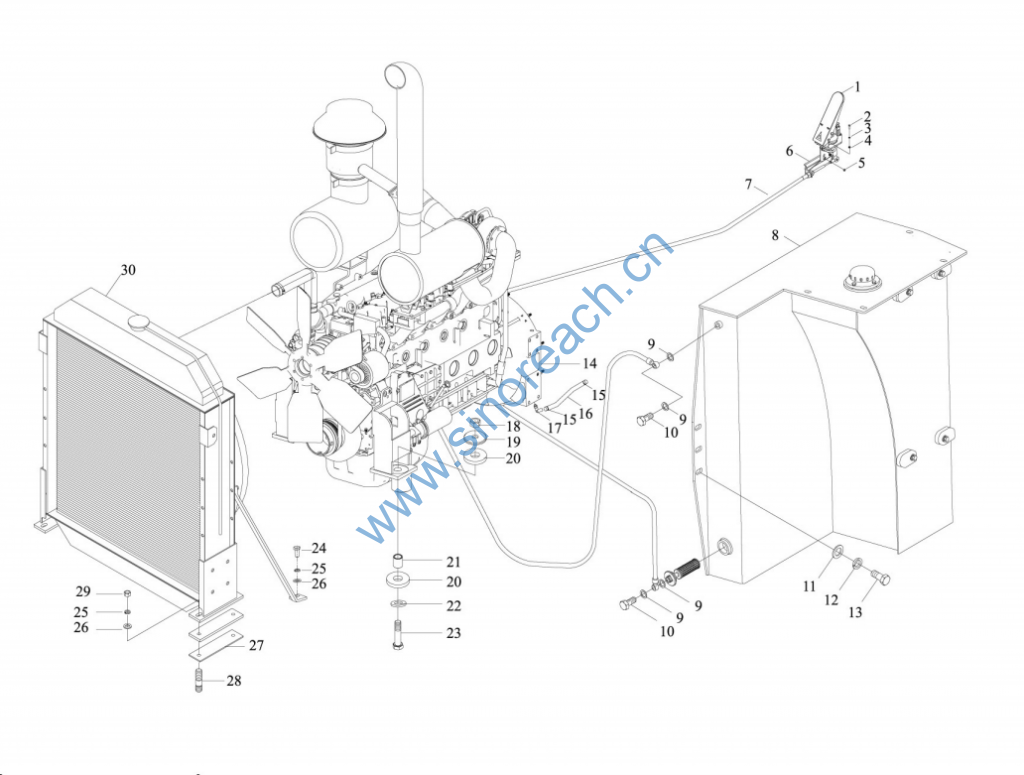

XG951 柴油机系统 Diesel Engine System

1 23C0020 1 Governor assem.
2 00B0015 GB5783—86 M6X20 5 Bolt
3 06B0021 GB93—87 6 5 Washer
4 06B0044 GB97.1 —85 6 5 Washer
5 03B0013 GB6170—86 M6 2 Nut
6 00D2043 1 Bracket
7” 61C0007 1 Cable Assem
8 21C0291 1 Fuel Tank Group
9 06B0111 JB982-77 4 Washer
10 04B0001 401007 2 Screw
11 06B0028 GB96-85 16 6 Washer
12 06B0020 GB93-87 16 6 Washer
13 00B0016 GB5783-86 M16X35 6 Bolt
14 40C0118 WD615.61AG218 1 Engine
15 08C0009 JB/78870—99 25—38 2 Clamp
16 30A0006 HG4—761—74 Ф25ХЗ50 1 Rubber Hose
17 18D0002 401800C 1 Connector
18 03B0083 GB889—86 M24X2 2 Nut
19 55A0062 2 Spacer
20 55A0061 4 Spacer
21 34A0048 2 Tube
22 06B0015 GB97.1 —85 24 2 Washer
23 01B0101 GB5785—86 M24X2X110 2 Bolt
24 00B0023 GB5783—86 M12X25 2 Bolt
25 06B0013 GB93—87 12 6 Washer
26 06B0012 GB97.1—85 12 6 Washer
27 56A0001 401009 2 spacer
28 05B0001 GB898—88 М12 х 40 4 Stud
29 03B0010 GB6170—86 М12 4 Nut
30 20C0075 XG953-YC-00 1 Radiator group
