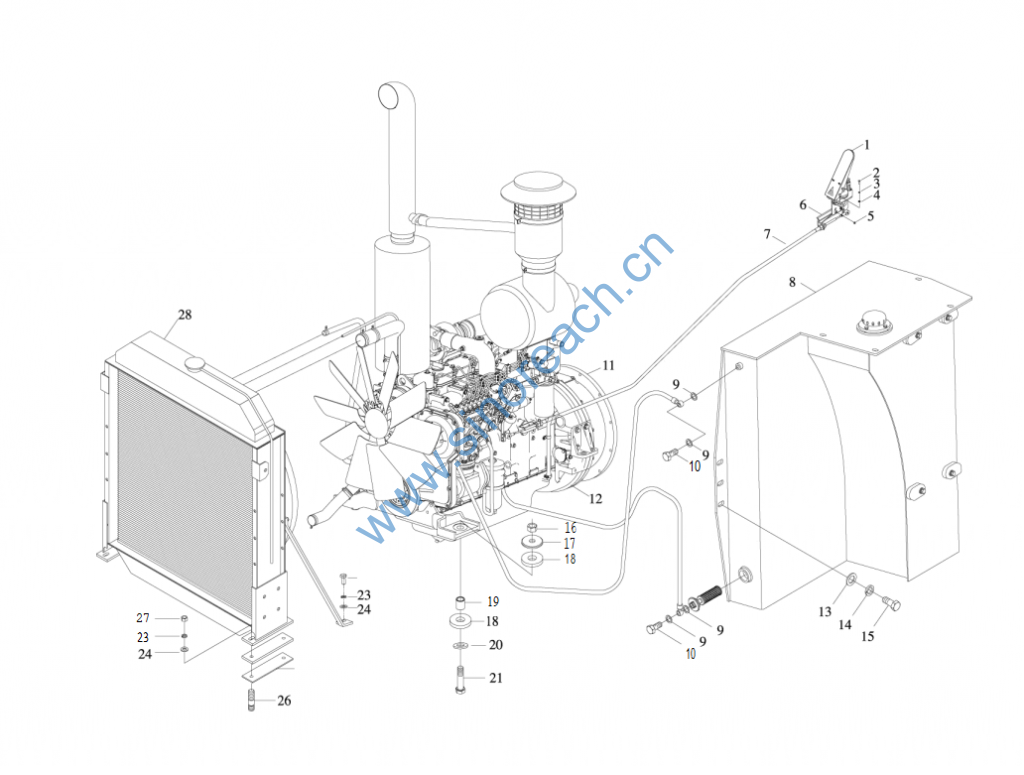

XG951 柴油机系统 Diesel Engine System D9-220

1 23C0020 Governor asses
2 00B0015 GB5783—86 M6X20 5 Bolt
3 06B0021 GB93—87 6 5 Washer
4 06B0044 GB97. 1—85 6 5 Washer
5 03B0013 GB6170—86 M6 2 Nut
6 00D2043 1 Bracket
7* 61C0007 1 Cable Assem
8 21C0291 1 Fuel Tank GrouD
9 06B0111 JB982—77 4 Washer
10 04B0001 401007 2 Screw
11 52C0015 1 Sleeve Assem.
12 40C0094 09-220(DBL0953-1) 1 Engine
13 06B0028 GB96—85 16 6 Washer
14 06B0020 GB93—87 16 6 Washer
15 00B0016 GB5783—86 M16X35 6 Bolt
16 03B0083 GB889—86 M24X2 2 NUt
17 55A0062 2 Spacer
18 55A0061 4 Spacer
19 34A0048 2 Tube
20 06B0015 GB97. 1—85 24 2 Washer
21 01 B0101 GB5785— 86 M24X2X110 2 Bolt
22 00B0023 GB5783—86 M12X25 2 Bolt
23 06B0013 GB93—87 12 6 Washer
24 06B0012 GB97.1 —85 12 6 Washer
25 56A0001 401009 2 spacer
26 05B0001 GB898—88 M12 x 40 4 Stud
27 03B0010 GB6170—86 M12 4 Nut
28 20C0080 XG953—D9 —00 1 Radiator group
