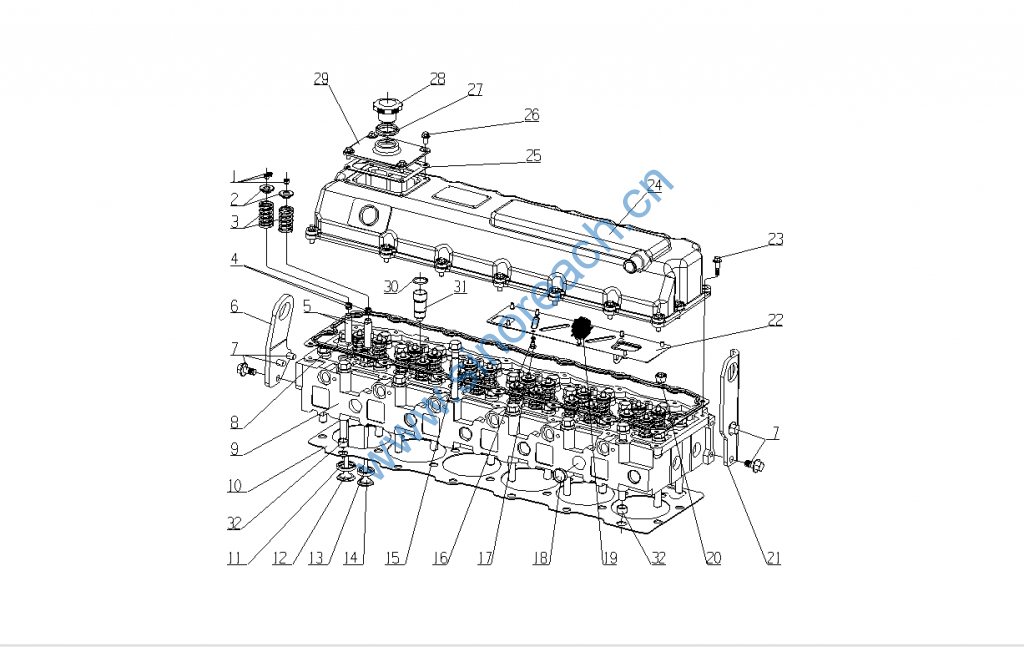

J5600-1003000 气缸盖及气缸盖罩总成 Cylinder Head & Cylinder Head Cover Assembly

序号 Item 图 号 Part No. 名 称 Name 数量 Qty. 备 注 Remark
1 L3000-1007013 气门锁夹 Valve lock clamp 48 易损件 EWP
2 J5600-1003116 气门弹簧上座 Valve spring upper seat 24 易损件 EWP
3 J5600-1003106 气门弹簧 Valve spring 24 易损件 EWP
4 L3000-1003105SF1 气门杆油封 Valve stem seal 24 易损件 EWP
5 J5600-1003104 气门导管 Valve guide pipe 24 易损件 EWP
6 L3000-1003036A 前吊耳 Front lifter 1
7 Q1841225TF2 螺栓M12×25 Bolt M12×25 5
8 J5600-1003201 气缸盖罩垫片 Cylinder head cover washer 1 易损件 EWP
9 J5600-1003171A 气缸盖 Cylinder head 1
10 J5600-1003001 气缸盖垫片 Cylinder head gasket 1 易损件 EWP
11 J5600-1003173A 进气门座圈 Air intake valve seat ring 12 易损件 EWP
12 J5600-1003111 进气门 Intake valve 12 易损件 EWP
13 J5600-1003174A 排气门座圈 Air Exhaust valve seat ring 12 易损件 EWP
14 J5600-1003103 排气门 Exhaust valve 12 易损件 EWP
15 A30-1003035A 缸盖短螺栓 Cylinder head bolt (short) 26 易损件 EWP
16 Q40306 垫圈 Washer 9
17 Q150B0612 螺栓M6×12 Bolt M6× 12 9
18 Q72230 塞片30 Spacer 30 14
19 L3000-1003206 瓦塄钢丝团 Steel wire roll 1
20 Q61904 螺塞NPT1/2 Screw plug NPT 1/2 6
21 L3000-1003151 后吊耳 Rear lifter 1
22 J5600-1003270 盖板组件 Cover part assembly 1
23 Q1840830 螺栓M8×30 Bolt M8× 30 17
24 J5600-1003205A 气缸盖罩 Cylinder head cover 1
25 J5600-1003248 加机油口垫片 Oil filler washer 1 易损件 EWP
26 Q1840816 螺栓M8×16 Bolt M8× 16 4
27 150-1003043C 密封圈 Seal ring 1 易损件 EWP
28 150-1003041F 加机油口盖 Oil filler cover 1
29 J5600-1003243 加机油口 Oil filler port 1
30 YC208-B02580F O形圈2.65×25.8 O-ring 2.65× 25.8 6 易损件 EWP
31 J5600-1003176 喷油器铜套 Injector copper bushing 6
32 L3000-1003088 气缸盖定位销套 Cylinder head dowel pin sleeve 2
