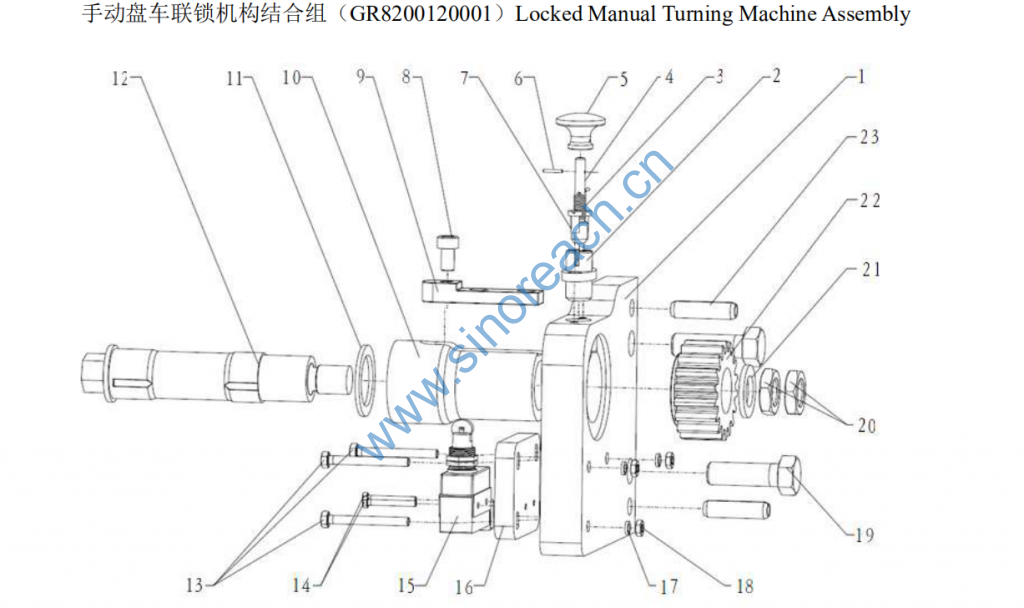

GR8200120001）Locked Manual Turning Machine Assembly

1 820012010001 盘车机构安装板 Locating plate 1 1 1 1
2 1620012070013 导套 Direction sleeve 1 1 1 1
3 90039510003 弹簧 Spring 1 1 1 1 GB/T2089-YA-
0.8×8×18
4 1620012070012 定位销 Located pin 1 1 1 1
5 1620012070014 把手 Handle 1 1 1 1
6 90035050008 圆柱销 Cylindrical pin 2 2 2 2 GB/T119.2-2×12
7 90033040003 内六角螺钉 Inner hex. head bolt 2 2 2 2 GB/T70.1-M5×12
8 90003862419 内六角螺钉 Inner hex. head bolt 1 1 1 1 GB/T70.1-M8×16
9 1620012000005 导向键 Qriented key 1 1 1 1
10 1620012000004 套筒 Sleeve 1 1 1 1
11 1620012000006 垫圈 Washer 1 1 1 1
12 1620012000003 轴 Shaft 1 1 1 1
13 90031170095 六角头螺栓 Hex. head bolt 3 3 3 3 GB/T5783-M6×50
14 90033040002 内六角螺钉 Inner hex. head bolt 2 2 2 2 GB/T70.1-M4×30
15 1620012000011 限位开关 Limit switc 1 1 1 1

16 1620012000010 垫板 Pad 1 1 1 1
17 90014350003 弹簧垫圈 Light Spring washer 3 3 3 3 GB/T859-16
18 90032170003 六角螺母 Hex. nut 3 3 3 3 GB/T5783-M16×40
19 90031170063 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T6173-M20×1.5
20 90032190003 六角薄螺母 Hex. head thin nut 2 2 2 2 GB/T95-20
21 90034050010 平垫圈 Plain washer 1 1 1 1
22 1620012000008 盘车齿轮 Turning gear 1 1 1 1 GB/T879-12×45
23 90035100028 弹性圆柱销 Elastic cylinder pin 2 2 2 2 GB/T5783-M16×40
