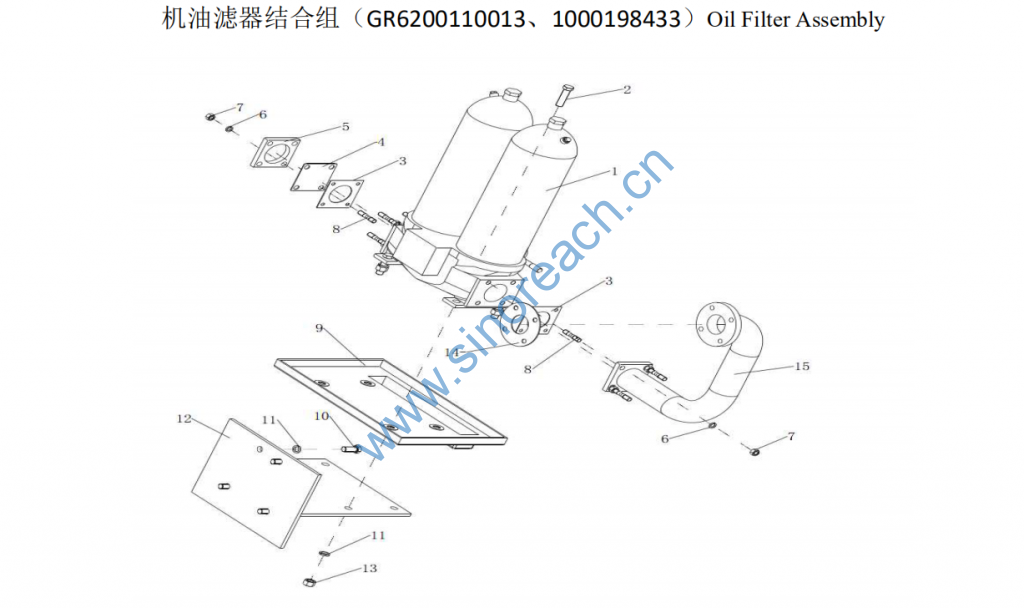

GR6200110013、1000198433）Oil Filter Assembly

1
C82.25.03.2000 机油双筒滤器 Oil dual-filter. 1 1
C82.25.03.1000 机油双筒滤器 Oil dual-filter. 1 1
带压差报警装置
With differential
pressure alarm
2 90031170067 六角头螺栓 Hex. head bolt 4 4 GB/T5783-M16×55
3 620011120078 垫片 Gasket 2 2
4 620011120087 扪板 Blanking cover 1 1
5 C62.13.03.2006 法兰 Flange 1 1
6 90014010002 弹簧垫圈 Spring washer 8 8 GB/T93-12
7 90012210004 1 型六角螺母 Hex. nut 8 8 GB/T6170-M12
8 90031510005 双头螺柱 Stud bolt 8 8 GB/T897-M16×40
9 620011120041 接油盘组件 Blanking plate plug 1 1
10 90011270042 六角头螺栓 Hex. head bolt 4 4 GB/T5783-M16×35
11 90014350008 标准型弹簧垫圈 Spring washer 4 4 GB/T93-16
12 620011120040 滤器支架结合组 Filter support ass. 1 1
13 90012210009 1 型六角螺母 Hex. nut 4 4 GB/T6170-M16
14 C62.06.02.0010 垫片 Washer 1 1

15 620011120044 主油管进油管组件 Main inlet pipe
assembly plug 1 1
