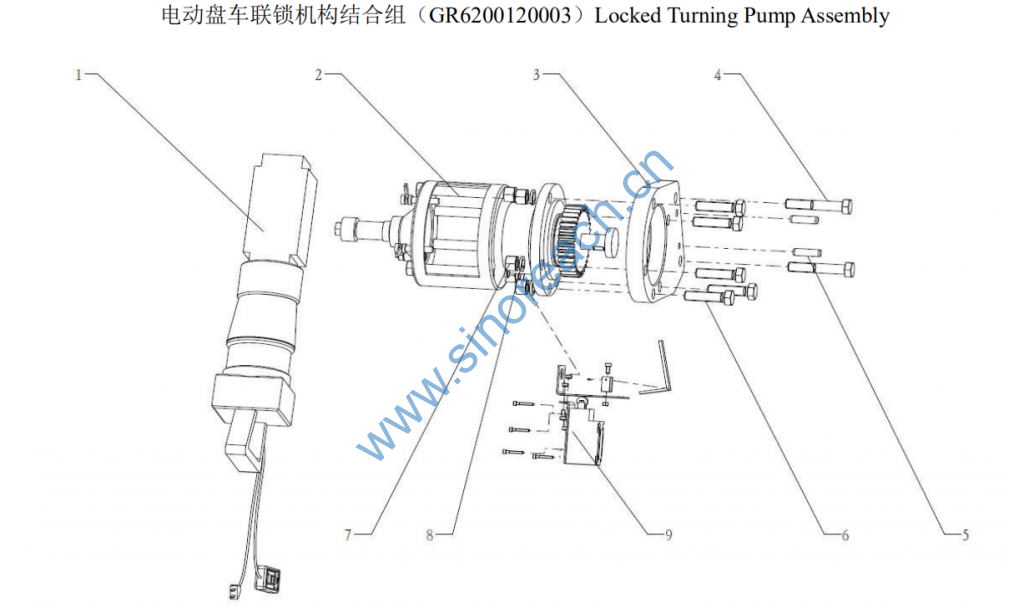

GR6200120003）Locked Turning Pump Assembly

1 620012030006 电动工具 Motor tool 1 1 1 1
2 620012030004 盘车机构 Turning pump machine 1 1 1 1
3 620012030005 盘车机构安装板 Locating plate of
turning pump 1 1 1 1
4 90031160061 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5782-M16×85
5 90035050005 圆柱销 Cylindrical pin 2 2 2 2 GB/T119.2-12×40
6 90031170068 六角头螺栓 Hex. head bolt 5 5 5 5 GB/T5783-M16×60
7 90012210009 六角螺母 Hex. nut 5 5 5 5 GB/T6170-M16
8 90034180007 轻型弹簧垫圈 Light Spring washer 5 5 5 5 GB/T859-16
9 620012030008 限位开关结合组 Limit switch assembly 1 1 1 1
