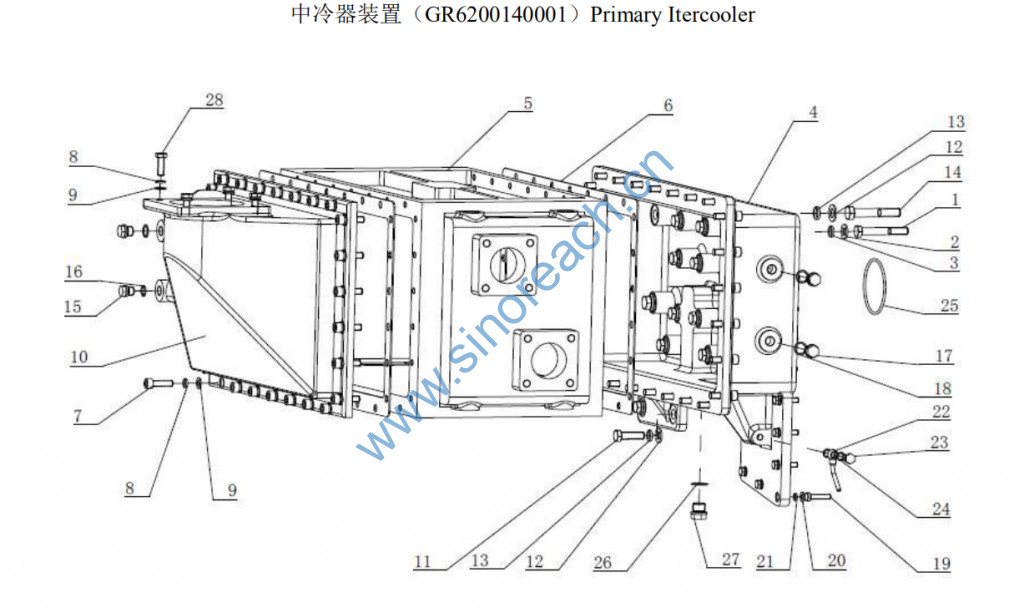

GR6200140001）Primary Itercooler

1 90031160042 六角头螺栓 Hex. Head bolt 10 GB/T5783-M12×80
2 90003930282 平垫圈 Flat washer 10 GB/T97.1-12
3 90014010002 弹簧垫圈 Spring washer 10 GB/T93-12
4 620014060002 出气壳 Air discharging casing 1
5 620014060004 空气冷却器 Air cooler 1
6 620014060003 中冷器垫片 Intercooler gasket 2
7 90033040020 内六角螺栓 Hex. Socket cap screw 52 GB/T70.1-M10×35
8 90034080001 小垫圈 Small washer 56 GB/T848-10
90014010001 9 90014010001 弹簧垫圈 Spring washer 56 GB/T93-10
10 620014060005 进气壳 Air charge casing 1
11 90031170058 六角头螺栓 Hex. head bolt 3 GB/T5783-M14×40
12 90003935015 平垫圈 Flat washer 5 GB/T97.1-14
13 90014010003 弹簧垫圈 Spring washer 5 GB/T93-14
14 90031160086 六角头螺栓 Hex. head bolt 2 GB/T5782-M14×80
15 LS-AM14×1.5 六角螺塞 Hex. screw plug 1

16 DIN7603-A14×18 密封垫圈 Sealing washer 1
17 LS-AM16×1.5 六角螺塞 Hex. screw plug 3
18 DIN7603-A17×21 密封垫圈 Sealing washer 3
19 90003800431 六角头螺栓 Hex. head bolt 20 GB/T5783-M8×35
20 90003930261 平垫圈 Flat washer 20 GB/T97.1-8
21 90014010013 弹簧垫圈 Spring washer 20 GB/T93-8
22 620014060007 管接头 Pipe fittings 1
23 DIN7643-LL6 空心螺钉 Hollow screw 1
24 DIN7603-A10×16 密封垫圈 Sealing washer 2
25 90037610026 O 型密封圈 O-ring 1
26 DIN7603-A21×26 密封垫圈 Sealing washer 1
27 LS-AM20×1.5 六角螺塞 Hex. screw plug 1
28 90003802527 六角头螺栓 Hex. head bolt 4 GB/T5783-M10×30
