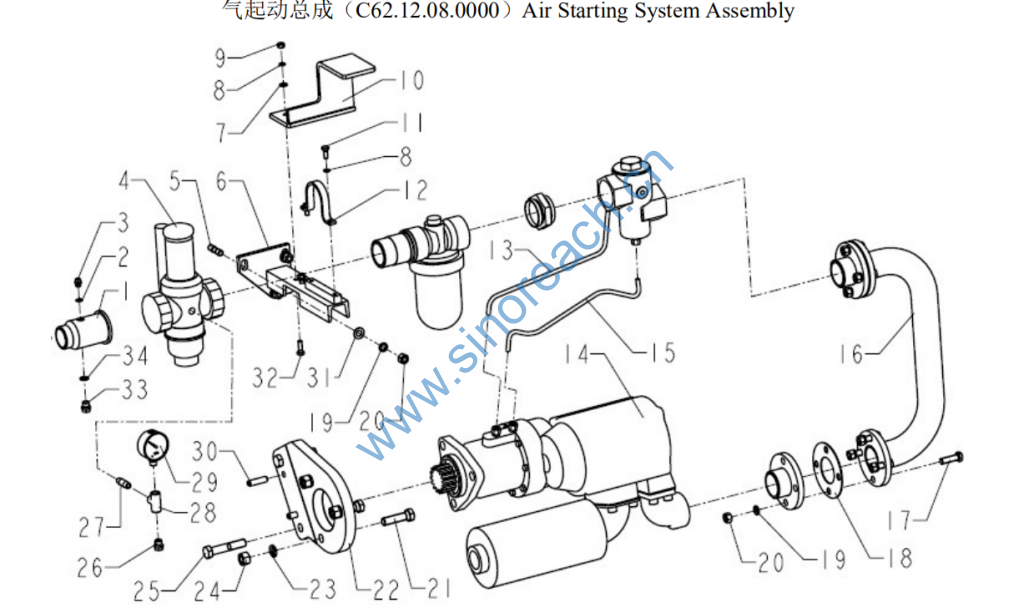

C62.12.08.0000 Air Starting System Assembly

1 C62.12.02.0001 管座 Pipe seat 1 1 1 1
2 DIN7603-A10×14 密封垫圈 Sealing washer 1 1 1 1
3 LS-AM10×1 六角螺塞 Hex. screw plug 1 1 1 1
4 C62.12.02.4000 2″减压阀 2″ Pressure
reducing valve 1 1 1 1
5 90003813628 双头螺柱 Stud bolt 3 3 3 3 GB/T898-M12×30
6 C62.12.02.3000 支架结合子组 Bracket
subassembly
1 1 1 1
7 90003930261 平垫圈 flat washer 1 1 1 1 GB/T97.1-8
8 90014010013 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-8
9 90012210022 六角螺母 Hex. nut 2 2 2 2 GB/T6170-M8
10 C62.12.08.9000 油雾器防护罩 Oil-mist device
protecting cover 1 1 1 1
11 90011270075 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M8×20
12 C62.12.02.0002 管夹 Pipe clip 1 1 1 1
13 C62.12.08.0001 进气控制管 Air charge control
pipe 1 1 1 1

14 C62.12.07.0000 气起动分总成 Air starting system
subassembly 1 1 1 1
15 C62.12.08.0004 回气控制管 Air return control
pipe 1 1 1 1
16 C62.12.08.6000 U 型管结合组 Welded U-pipe ass. 1 1 1 1
17 90031170050 六角头螺栓 Hex. head bolt 8 8 8 8 GB/T5783-M12×45
18 C62.12.02.0003 密封垫片 Sealing washer 2 2 2 2
19 90014010002 弹簧垫圈 Spring washer 11 11 11 11 GB/T93-12
20 90012210004 六角螺母 Hex. nut 11 11 11 11 GB/T6170-M12
21 90031170068 六角头螺栓 Hex. head bolt 3 3 3 3 GB/T5783-M16×60
22 C62.12.01.0001 安装板 Mounting plate 1 1 1 1
23 90034180007 轻型弹簧垫圈 Lightened spring
washer
3 3 3 3 GB/T859-16
24 90012210009 六角螺母 Hex. nut 3 3 3 3 GB/T6170-M16
25 90031160061 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5782-M16×85
26 DIN910-G1/4 螺塞 Screw plug 1 1 1 1
27 DIN2982-G1/4×40 G1/4 外螺纹
管接
G1/4 male thread
pipe joint
1 1 1 1

28 DIN2950-G1/4-B1 G1/4 T 型内螺
纹管接
G1/4 T-type female
thread pipe joint 1 1 1 1
29 213.53.063-1.6 抗震压力表 Vibration-proof
pressure meter
1 1 1 1 0-1.6MPa
30 90035100030 弹性圆柱销 Elastic cylindrical
pin 2 2 2 2 GB/T879.1-12×40
31 90003930282 平垫圈 flat washer 3 3 3 3 GB/T97.1-12
32 90003802424 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M8×25
33 LS-AM14×1.5 六角螺塞 Hex. screw plug 1 1 1 1
34 DIN7603-A14×18 密封垫圈 Sealing washer 1 1 1 1
