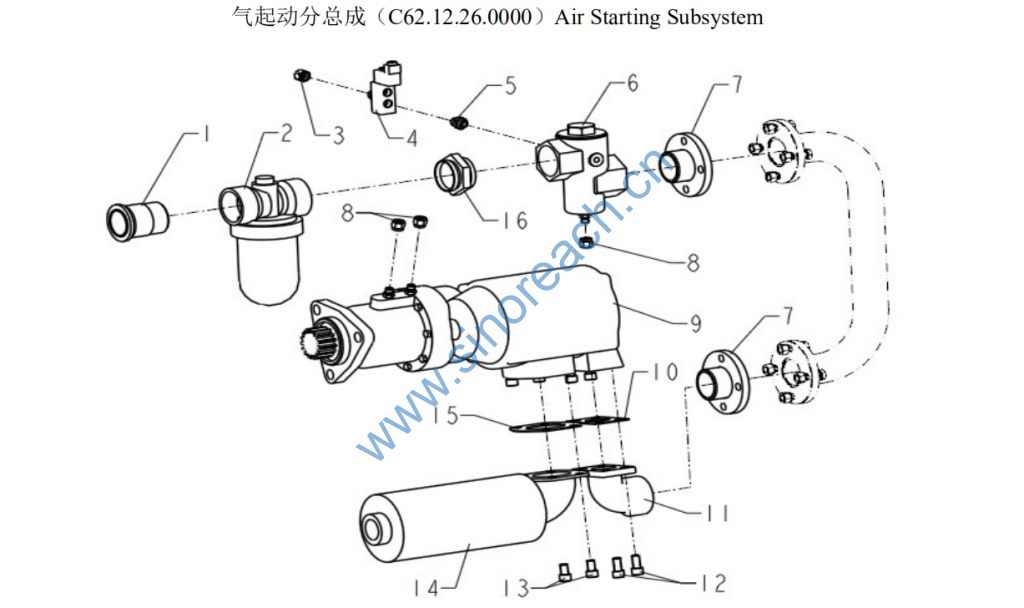

C62.12.26.0000 Air Starting Subsystem

1 C62.12.07.0002 减压阀接头 Reducing vavle joint 1 1 1 1
2 C62.12.07.2000 油雾器 2″ Oil mist bottle 1 1 1 1
3 JKY-Z6 卡套式接头 G1/4 Sleeve joint G1/4 1 1 1 1
4 C62.12.07.4000 二位三通电磁阀 Solenoid valve 1 1 1 1
5 JZH-Z6 直通接头 Straight joint 1 1 1 1
6 C62.12.07.3000 继气器 Air relay 1 1 1 1
7 C62.12.02.2000 焊接管接头结合
组
Pipe joint ass. 2 2 2 2
8 JKY-Z6A 卡套式接头 Sleeve joint 3 3 3 3
9 C62.12.26.1000 气起动马达 Air starter 1 1 1 1
10 C62.12.07.0006 垫片 Washer 1 1 1 1
11 C62.12.07.0005 法兰弯头 Flange bend 1 1 1 1
12 90033040029 内六角头螺钉 Inner hex. head bolt 4 4 4 4 GB/T70.1-M12×25
13 90033040028 内六角头螺钉 Inner hex. head bolt 4 4 4 4 GB/T70.1-M12×20
14 C62.12.07.5000 消声器 Muffler 1 1 1 1

15 C62.12.07.0003 垫片 Washer 1 1 1 1
16 90037110003 内接头 Inner joint 1 1 1 1 GB/T3289.26
