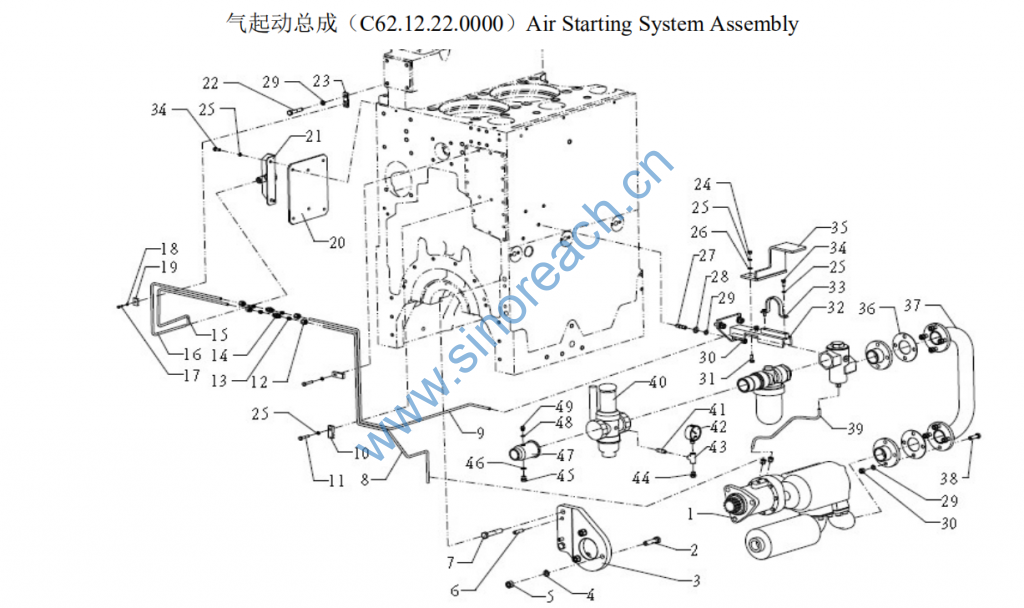

C62.12.22.0000 Manual Air Starting System Assembly

1 C62.12.21.0000 气起动分总成 Air starting system
ass.
1 1 1 1
2 90031170068 六角头螺栓 Hex. head bolt 3 3 3 3 GB/T5783-M16×60
3 C62.12.01.0001 安装板 Mounting plate 1 1 1 1
4 90034180007 弹簧垫圈 Spring washer 3 3 3 3 GB/T859-16
5 90012210009 六角螺母 Hex. nut 3 3 3 3 GB/T6170-M16
6 90035050005 弹性圆柱销 Elastic cylindrical
pin 2 2 2 2 GB/T119.2-12×40
7 90031160061 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5782-M16×85
8 C62.12.22.0018 控制管 A 段 Control pipe A 1 1 1 1
9 C62.12.22.0002 控制管 A 段 Control pipe A 1 1 1 1
10 C62.12.22.0005 管夹 Pipe clip 2 2 2 2
11 90003802442 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M8×40
12 DIN3870-AL8 连接螺母 Connected nut 4 4 4 4
13 DIN3861-L8 卡套 Sleeve 4 4 4 4
14 DIN3902-L8 直通接头体 Straight connector 2 2 2 2
15 C62.12.22.0012 控制管 B 段 Control pipe B 1 1 1 1

16 C62.12.22.0013 控制管 B 段 Ccontrol pipe B 1 1 1 1
17 90011270061 六角头螺栓 Hex. head bolt 1 1 1 1 GB/T5783-M5×16
18 90034010002 弹簧垫圈 Spring washer 1 1 1 1 GB/T93-5
19 C62.12.22.0003 管夹 Pipe clip 1 1 1 1
20 C62.12.22.0007 支架安装板 Bracket mounting
plate 1 1 1 1
21 C62.12.22.0009 支架 Bracket 1 1 1 1
22 90031160038 六角头螺栓 Hex. head bolt 1 1 1 1 GB/T5782-M12×60
23 C62.12.22.0004 管夹 Pipe clip 1 1 1 1
24 90012210022 六角螺母 Hex. nut 2 2 2 2 GB/T6170-M8
25 90014010013 弹簧垫圈 Spring washer 6 6 6 6 GB/T93-8
26 90003930261 平垫圈 flat washer 1 1 1 1 GB/T97.1-8
27 90003813628 双头螺柱 Stud bolt 3 3 3 3 GB/T898-M12×30
28 90003930282 平垫圈 flat washer 3 3 3 3 GB/T97.1-12
29 90014010002 弹簧垫圈 Spring washer 12 12 12 12 GB/T93-12
30 90012210004 六角螺母 Hex. nut 11 11 11 11 GB/T6170-M12
31 90003802424 六角头螺栓 Hex. head bolt 2 2 2 2 GB/T5783-M8×25

32 C62.12.02.3000 支架结合子组 Bracket
subassembly 1 1 1 1
33 C62.12.02.0002 管夹 Pipe clip 1 1 1 1
34 90011270075 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M8×20
35 C62.12.08.9000 油雾器防护罩 Oil-mist device
cover
1 1 1 1
36 C62.12.02.0003 密封垫片 Sealing washer 2 2 2 2
37 C62.12.08.6000 U 型管结合组 U-pipe assembly 1 1 1 1
38 90011270023 六角头螺栓 Hex. head bolt 8 8 8 8 GB/T5783-M12×40
39 C62.12.08.0004 回气控制管 Air return control
pipe 1 1 1 1
40 C62.12.02.4000 2″减压阀 2″ Pressure redue
valve 1 1 1 1
41 DIN2982-G1/4×40 G1/4 外 螺 纹
管接
G1/4 male thread
pipe joint 1 1 1 1
42 213.53.063-1.6 抗震压力表 Vibration-proof
pressure meter
1 1 1 1 0-1.6MPa

43 DIN2950-G1/4-B1 G1/4 T 型内螺
纹管接
G1/4 T-type
female thread pipe
joint
1 1 1 1
44 DIN910-G1/4 螺塞 Screw plug 1 1 1 1
45 LS-AM14×1.5 六角螺塞 Hexagonal screw
plug
1 1 1 1
46 DIN7603-A14×18 密封垫圈 Sealing washer 1 1 1 1
47 C62.12.02.0001 管座 Pipe seat 1 1 1 1
48 DIN7603-A10×14 密封垫圈 Sealing washer 1 1 1 1
49 LS-AM10×1 六角螺塞 Hex. screw plug 1 1 1 1
