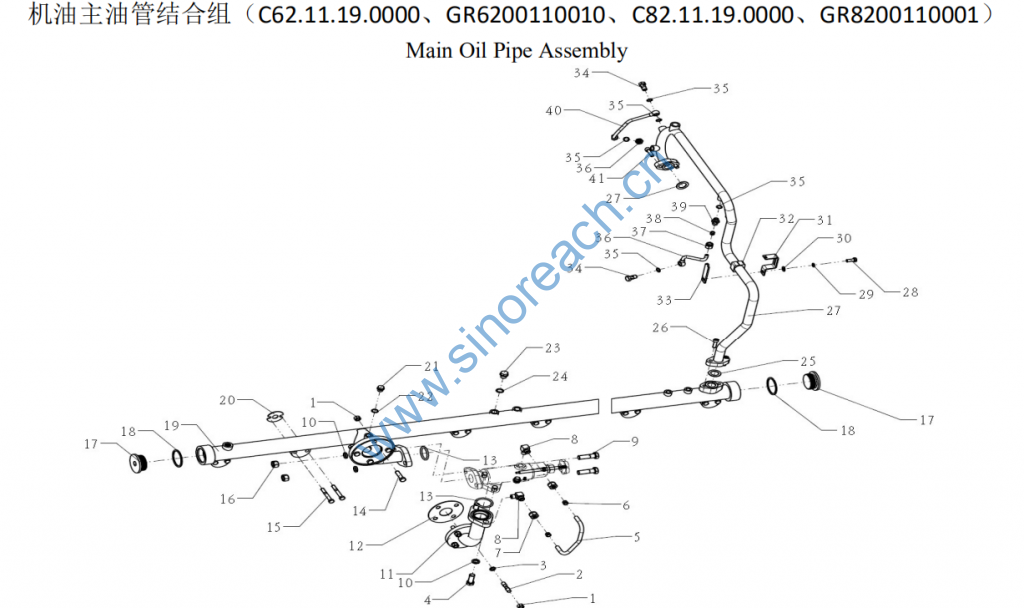

C62.11.19.0000、GR6200110010、C82.11.19.0000、GR8200110001 Main Oil Pipe Assembly

1 90012210004 六角头螺母 Hex. nut 4 4 4 4 GB/T6170-M12
2 90003813628 双头螺栓 Stud bolt 4 4 4 4 GB/T898-M12×30
3 90014010002 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-12
4 90031170063 六角头螺栓 Hex. screw plug 2 2 2 2 GB/T5783-M16×40
5 C62.11.03.0003 管子 Pipe 1 1 1 1
6 DIN3861-L12 卡套 Sleeve chuck 2 2 2 2
7 DIN3870-AL12 连接螺母 Connecting nut 2 2 2 2
8 DIN3903-L12R 接头体 Coupling body 2 2 2 2
9 90031170065 六角头螺栓 Hex. screw plug 2 2 2 2 GB/T5783-M16×50
10 90034010008 弹簧垫圈 Spring washer 4 4 4 4 GB/T93-16
11 C62.11.03.2000 旁通管路结合组 Bypass ass. 1 1 1 1
12 C62.11.03.0007 垫片 Gasket 1 1 1 1
13 C62.11.03.0005 O 形密封圈 O-ring 2 2 2 2
14 90031170050 六角头螺栓 Hex. screw plug 4 4 4 4 GB/T5783-M12×45
15 90011260008 六角头螺栓 Hex. screw plug 14 14 16 16 GB/T5782-M10×70

16 90012210009 六角头螺母 Hex. nut 2 2 2 2 GB/T6170-M16
17 C62.11.19.0001 螺塞 Screw plug 2 2 2 2
18 C62.11.19.0002 密封垫片 Sealing washer 2 2 2 2
19
C62.11.19.1000 机油主油管 Main oil pipe 1 1
C82.11.19.1000 机油主油管 Main oil pipe 1 1
20 C62.11.03.0002 垫片 Gasket 7 7 8 8
21 LS-AM16×1.5 六角螺塞 Hex. screw plug 1 1 1 1
22 DIN7603-A17×21 密封垫片 Sealing washer 1 1 1 1
23 LS-AM18×1.5 六角螺塞 Hex. screw plug 1 1 1 1
24 DIN7603-A18×24 密封垫片 Sealing washer 1 1 1 1
25 C62.11.03.0001 垫片 Gasket head bolt 2 2 2 2
26 90003862532 内六角头螺钉 Hex. socket cap crew 2 2 2 2
27
C62.11.03.4000 支管结合组 Branch pipe ass. 1 1 1 1
620011030022 支管结合组 Branch pipe ass. 1 1 1 1

28 90003802523 六角头螺栓 Hex. screw plug 1 1 1 1 GB/T5783-M10×25
29 90014010001 弹簧垫圈 Spring washer 1 1 1 1 GB/T93-10
30 90003930271 平垫圈 Flat washer 1 1 1 1 GB/T97.1-10
31 620011190056 管夹 Pipe clip 1 1 1 1
32 620011190058 减振块 Cushion 1 1 1 1
33 620011190057 支撑板 Support plate 1 1 1 1
34 DIN7643-LL10 空心螺钉 Hollow screw 2 2 2 2
35 DIN7603-A14×18 密封垫片 Sealing washer 6 6 6 6
36 C62.11.03.6000 支管结合组 Branch pipe ass. 1 1 1 1
37 DIN3870-AL10 连接螺母 Connecting nut 2 2 2 2
38 DIN3861-L10 卡套 Sleeve chuck 2 2 2 2
39 DIN3901-L10M 接头体 Coupling body 2 2 2 2
40 C62.11.03.7000 支管结合组 Branch pipe ass. 1 1 1 1
