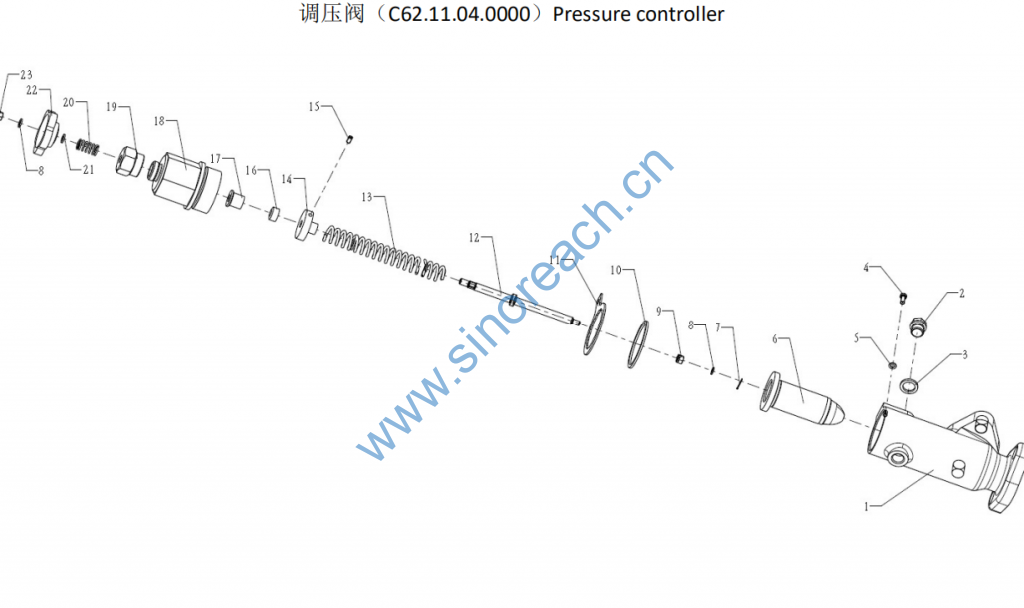

C62.11.04.0000 Pressure controller

1 C62.11.04.0001 阀体 Valve body 1 1 1 1
2 LS-AR3/8 六角螺塞 Hex. screw 4 4 4 4
3 620011000002 密封垫圈 Sealing washer 4 4 4 4
4 90031170002 六角头螺
栓
Hex. head bolt 2 2 2 2 GB/T5783-M5×8
5 90034050002 垫圈 Washer 1 1 1 1 GB/T97.1-5
6 C62.11.04.0002 锥阀 Cone valve 8 8 8 8
7 GB/T91-1.6×16 开口销 Split pin 5 5 5 5
8 90034050003 垫圈 Washe 2 2 2 2 GB/T97.1-6
9 90012210020 六角槽型
螺母
Hex. slotted nut 3 3 3 3 GB/T6178-M6
10 DIN7603-A60×68 密封垫圈 Sealing washer 3 3 3 3
11 C62.11.04.0011 止动垫片 Attachment gasket 1 1 1 1
12 C62.11.04.0006 阀杆 Valve stem 2 2 2 2
13 CC62.11.04.0004 弹簧 Spring 4 4 4 4
14 C62.11.04.0003 弹簧座 Spring seat 1 1 1 1

15 90033090003 平端紧定螺钉 Set screw with
chamfered end 1 1 1 1 GB/T73-M5×10
16 C11.93.14 密封环 Sealing ring √ √ √ √
17 C62.11.04.0008 压套 Pressure sleeve 1 1 1 1
18 C62.11.04.0005 阀盖 Valve cover 1 1 1 1
19 C62.11.04.0009 螺母 Nut 1 1 1 1
20 C62.11.04.0012 弹簧 Spring 1 1 1 1
21 90003930271 垫圈 Washer 1 1 1 1 GB/T97.1-10
22 C62.05.03.0004 手轮 Handwheel 1 1 1 1
23 GB/T6170-M6 六角螺母 Hex. nut 1 1 1 1
