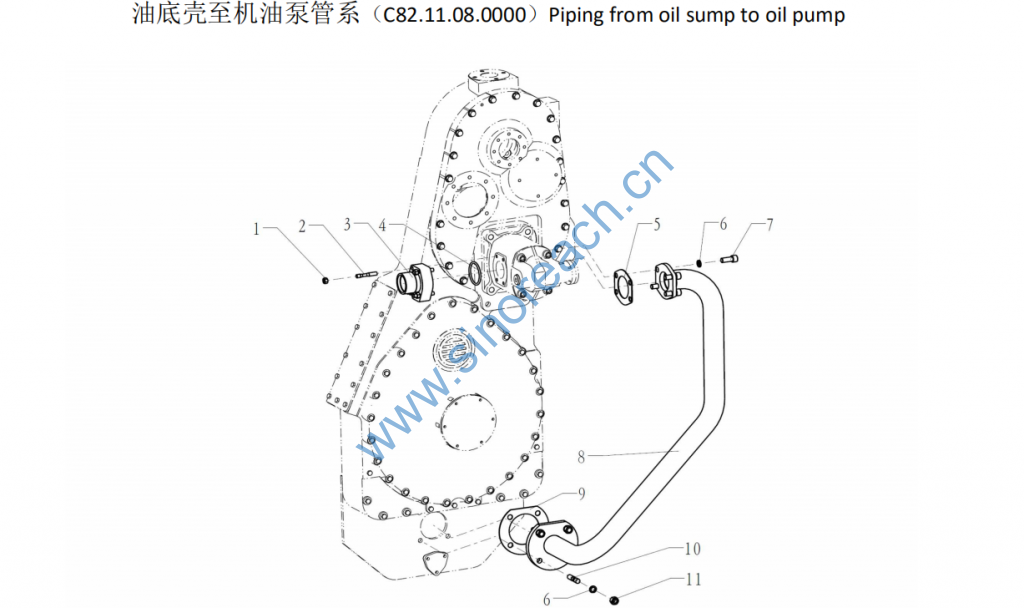

C82.11.08.0000 Piping from oil sump to oil pump

1 90012210004 六角头螺母 Hexagonal nut 4 4 4 4 GB/T6170-M12
2 90031520018 双头螺柱 Stud bolt 4 4 GB/T898-M12×55
3 820011060003 油泵出油口过
渡管 Transition pipe 1 1 1 1
4 90037610020 O 型密封圈 O-ring 1 1 1 1 GB/T3452.1-75×5.3-G
5 C82.11.06.0001 垫片 Gasket 1 1 1 1
6 90034010008 弹簧垫圈 Hex. head bolt 8 8 8 8 GB/T93-16
7 90033040043 内六角头螺钉 Hex. socket cap screw 4 4 4 4 GB/T70.1-M16×40
8 C82.11.08.2000 吸油管结合组 Oil suction pipe ass. 1 1
9 C62.11.14.0002 垫片 Gasket 1 1
10 90031510005 双头螺柱 Stud bolt 4 4 GB/T897-M16×40
11 90012210009 六角头螺母 Hexagonal nut 4 4 GB/T6170-M16
