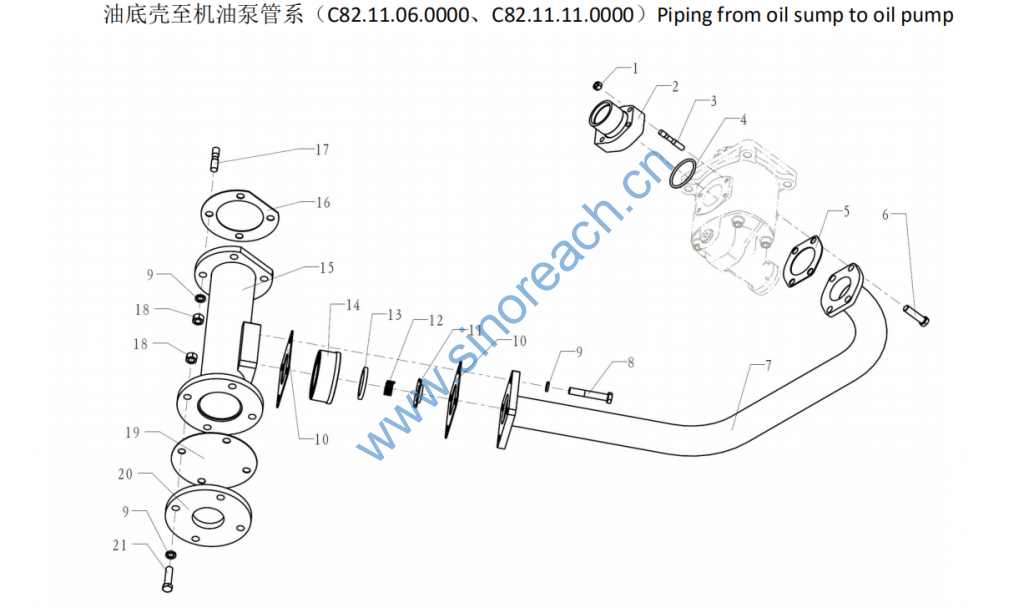

C82.11.06.0000、C82.11.11.0000 Piping from oil sump to oil pump

1 90012210004 六角头螺母 Hexagonal nut 4 4 4 4 GB/T6170-M12
2 820011060003 油泵出油口过渡
管
Transition pipe 1 1 1 1
3 90031520018
GB/T70.1-
双头螺柱 Stud bolt 4 4 4 4 GB/T898-M12×55
4 90037610020 O 型密封圈 O-ring 1 1 1 1 GB/T3452.1-75×5.3G
5 C82.11.06.0001 垫片 Gasket 1 1 1 1
6 90011270042 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5783-M16×35
7
C82.11.06.2000 吸油管结合组 Oil suction pipe ass. 1 1 1 1
C62.11.11.1000 吸油管结合组 Oil suction pipe ass. 1 1 1 1
8 90031160063 六角头螺栓 Hex. head bolt 4 4 4 4 GB/T5782-M16×95
9 90034010008 弹簧垫圈 Spring washer 12 12 12 12 GB/T93-16
10 C62.11.14.0002 垫片 Gasket 2 2 2 2
11 C62.11.14.1004 卡盘 Grip socket 1 1 1 1
12 C62.11.14.1003 弹簧 Spring 1 1 1 1
13 C62.11.14.1002 阀盖 Valve cover 1 1 1 1
14 C62.11.14.1001 壳体 Case body 1 1 1 1

15 C62.11.14.3000 连接管结合组 Connecting pipe ass. 1 1
16 C62.11.06.0001 垫片 Gasket 1 1
17 90031510005 双头螺柱 Stud bolt 4 4 4 4 GB/T897-M16×40
18 90032150011 六角头螺母 Hexagonal nut 8 8 GB/T6170-M16
19 C62.11.14.0003 垫片 Gasket 1 1
20 C62.11.14.0004 法兰 Flange 1 1
21 90031170068 六角头螺栓 Hex. head bolt 4 4 GB/T5783-M16×60
