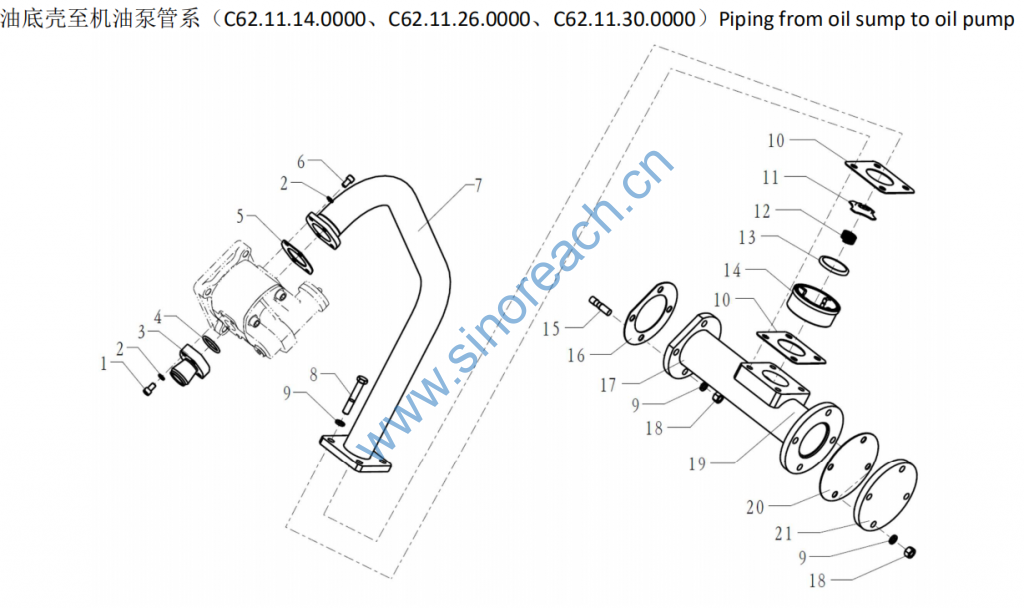

C62.11.14.0000、C62.11.26.0000、C62.11.30.0000 Piping from oil sump to oil pump

1 90033040032
GB/T70.1-
内六角螺钉 Hex. socket cap screw 4 4 GB/T70.1-M12×40
2 90034010006 弹簧垫圈 Spring washer 8 8 GB/T93-12
3 620011060082 油泵出油口过渡
管
Transition pipe 1 1
4 C62.11.06.0004 O 型密封圈 O-ring 1 1
5 C62.11.14.0001 垫片 Gasket 1 1
6 90033040030 内六角头螺钉 Hex. socket cap screw 4 4 GB/T70.1-M12×30
7
C62.11.14.2000 吸油管结合组 Oil suction pipe ass. 1 1
C62.11.26.1000 吸油管结合组 Oil suction pipe ass. 1 1
C62.11.14.2000 吸油管结合组 Oil suction pipe ass. 1 1
8 90031160063 六角头螺栓 Hex. head bolt 4 4 GB/T5782-M16×95
9 90034010008 弹簧垫圈 Spring washer 12 12 GB/T93-16
10 C62.11.14.0002 垫片 Gasket 2 2
11 C62.11.14.1004 卡盘 Grip socket 1 1
12 C62.11.14.1003 弹簧 Spring 1 1
13 C62.11.14.1002 阀盖 Valve cover 1 1

14 C62.11.14.1001 壳体 Case body 1 1
15 90031510005 双头螺柱 Stud bolt 4 4 GB/T897-M16×40
16 C62.11.06.0001 垫片 Gasket 1 1
17 C62.11.14.3000 连接管结合组 Connecting pipe ass. 1 1
18 90032150011 六角头螺母 Hex. nut 8 8 GB/T6170-M16
19 90031170068 六角头螺栓 Hex. head bolt 4 4 GB/T5783-M16×60
20 C62.11.14.0003 垫片 Gasket 1 1
21
C62.11.14.0004 法兰 Flange 1 1
C62.11.14.0004 法兰 Flange 1 1
C62.11.30.0001 法兰 Flange 1 1
