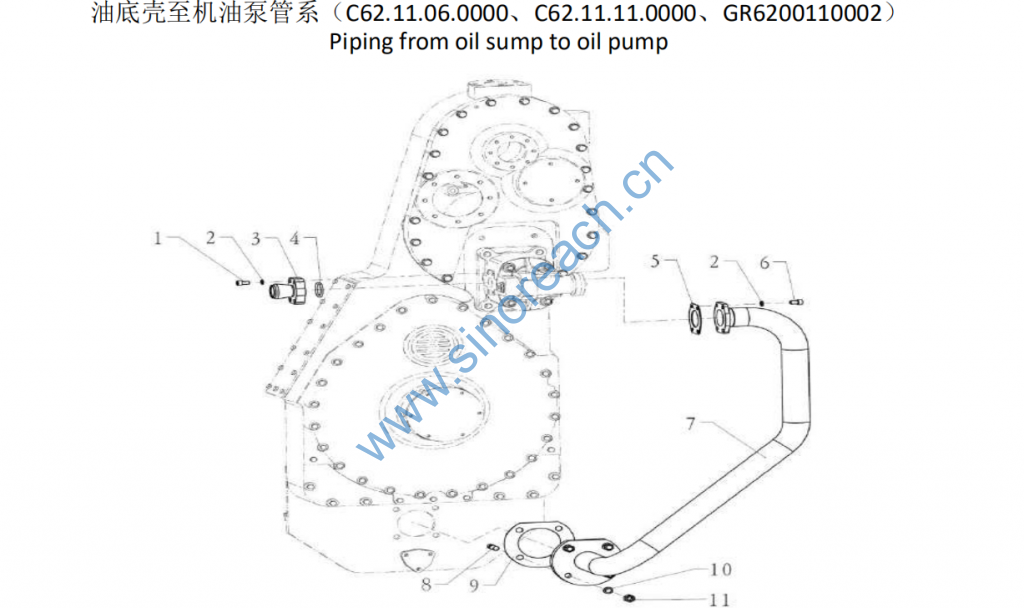

C62.11.06.0000、C62.11.11.0000、GR6200110002 Piping from oil sump to oil pump

1 90033040032 内六角头螺钉 Hex. socket cap screw 4 4 GB/T70.1-M12×40
2 90034010006 弹簧垫圈 Spring washer 8 8 GB/T93-12
3
620011060082 油泵出油口过渡管 Transition pipe 1 1
620011060082 油泵出油口过渡管 Transition pipe 1 1
620011240083 油泵出油口过渡管 Transition pipe 1 1
4 C62.11.06.0004 O 型密封圈 O-ring 1 1
5 C62.11.14.0001 垫片 Gasket 1 1
6 90033040030 内六角头螺钉 Hex. socket cap screw 4 4 GB/T70.1-M12×30
7
C62.11.06.2000 吸油管结合组 Oil suction pipe ass. 1 1
C62.11.11.2000 吸油管结合组 Oil suction pipe ass. 1 1
C62.11.06.2000 吸油管结合组 Oil suction pipe ass. 1 1
8 90031510005 双头螺柱 Stud bolt 4 4 GB/T897-M16×40
9 C62.11.14.0002 垫片 Gasket 1 1
10 90034010008 弹簧垫圈 Hex. head bolt 4 4 GB/T93-16
11 90012210009 六角头螺母 Hexagonal nut 4 4 GB/T6170-M16
