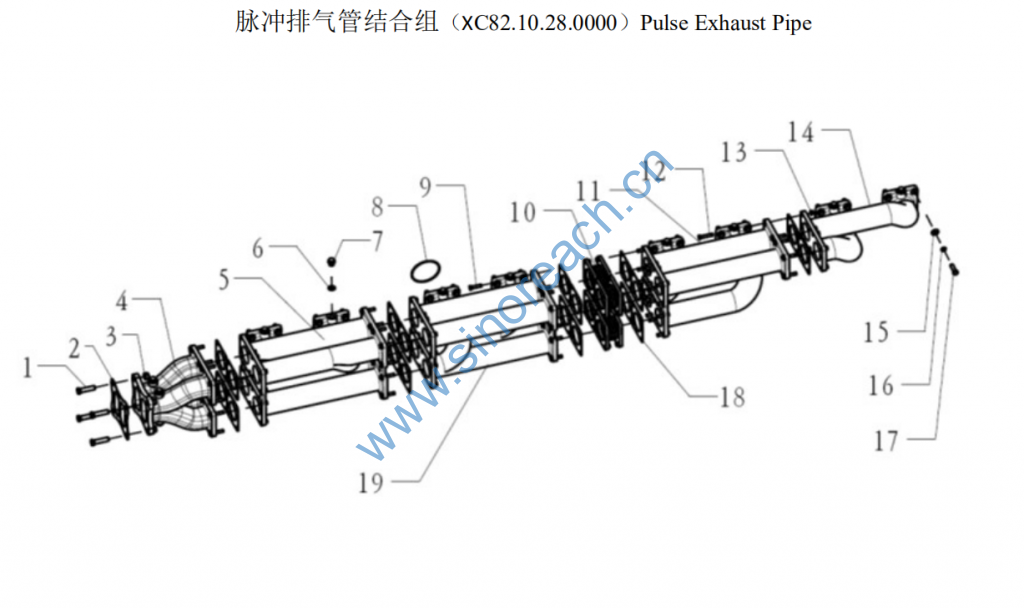

XC82.10.28.0000 Pulse Exhaust Pipe

1 620010010003 排气管螺栓 Exhaust Pipe Bolt 4 4
2 XC82.10.28.3000 增压器垫片 Supercharger gasket 1 1
3 620010010008 六角螺母 Hex. nut 4 4
4 XC82.10.28.0005 联接管 Connecting pipe 1 1
5 XC82.10.28.0004 第 7,8 缸排气管 NO.7,8blow-off pipe 1 1
6 DIN7603-A21×26 垫圈 Gasket 10 10
7 LS-AM20×1.5 六角螺塞 Hex.plug 10 10
8 C62.10.02.0008 O 型密封圈 O-ring 8 8
9 620010010004 排气管螺栓 Exhaust Pipe Bolt 32 32
10 XC82.10.28.4000 排气波纹管 Exhaust pipe 4 4
11 XC82.10.28.0002 第 3,4 缸排气管 NO.3,4blow-off pipe 1 1
12 820010010001 排气管螺栓 Exhaust Pipe Bolt 40 40
13 620010010006 六角螺母 Hex. nut 72 72
14 XC82.10.28.0001 第 1,2 缸排气管 NO.1,2blow-off pipe 1 1
15 90034050007 平垫圈 Plain washer 32 32 GB/T97.1-12

16 90034010006 弹性垫圈 Elastic washer 32 32 GB/T93-12
17 620010010001 排气管螺栓 Exhaust Pipe Bolt 32 32
18 XC82.10.28.2000 128 方垫片 128 square gasket 18 18
19 XC82.10.28.0003 第 5,6 缸排气管 NO.5,6blow-off pipe 1 1
