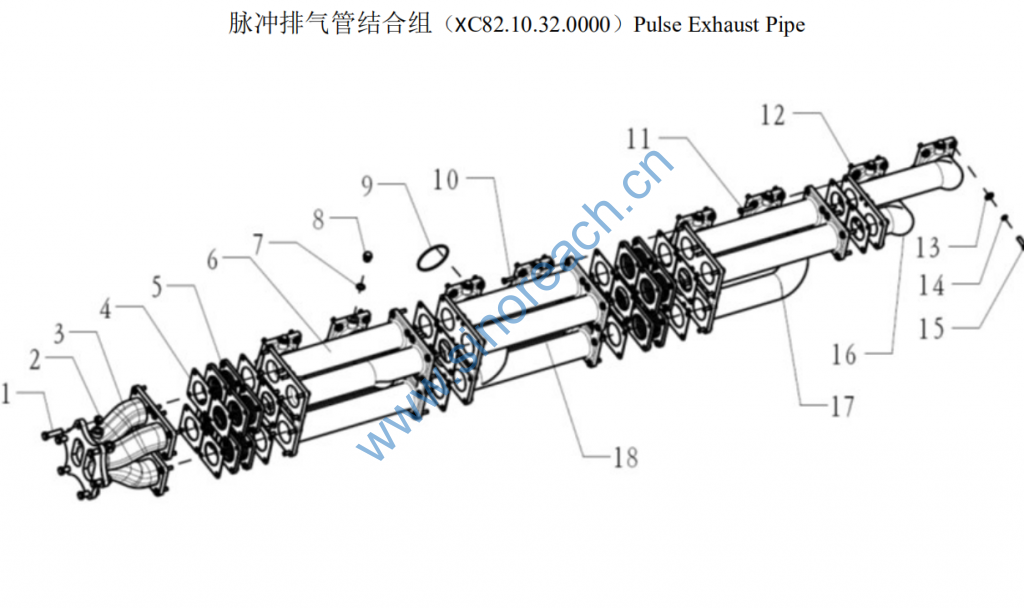

XC82.10.32.0000 Pulse Exhaust Pipe

1 620010010003 排气管螺栓 Exhaust Pipe Bolt 6 6
2 620010010008 六角螺母 Hex. nut 6 6
3 XC82.10.32.0002 联接管 Connecting pipe 1 1
4 XC82.10.28.0005 联接管 Connecting pipe 1 1
5 XC82.10.28.2000 128 方垫片 128 square gasket 22 22
6 XC82.10.28.0004 第 7,8 缸排气管 NO.7,8blow-off pipe 1 1
7 DIN7603-A21×26 垫圈 Gasket 10 10
8 LS-AM20×1.5 六角螺塞 Hex.plug 10 10
9 C62.10.02.0008 O 型密封圈 O ring seal 8 8
10 620010010004 排气管螺栓 Exhaust Pipe Bolt 64 64
11 820010010001 排气管螺栓 Exhaust Pipe Bolt 24 24
12 620010010006 六角螺母 Hex. nut 88 88
13 90034010006 弹性垫圈 Elastic washer 32 32 GB/T93-12
14 90034050007 平垫圈 Plain washer 32 32 GB/T97.1-12
15 620010010001 排气管螺栓 Exhaust Pipe Bolt 32 32

16 XC82.10.28.0001 第 1,2 缸排气管 NO.1,2blow-off pipe 1 1
17 XC82.10.28.0002 第 3,4 缸排气管 NO.3,4blow-off pipe 1 1
18 XC82.10.28.0003 第 5,6 缸排气管 NO.5,6blow-off pipe 1 1
