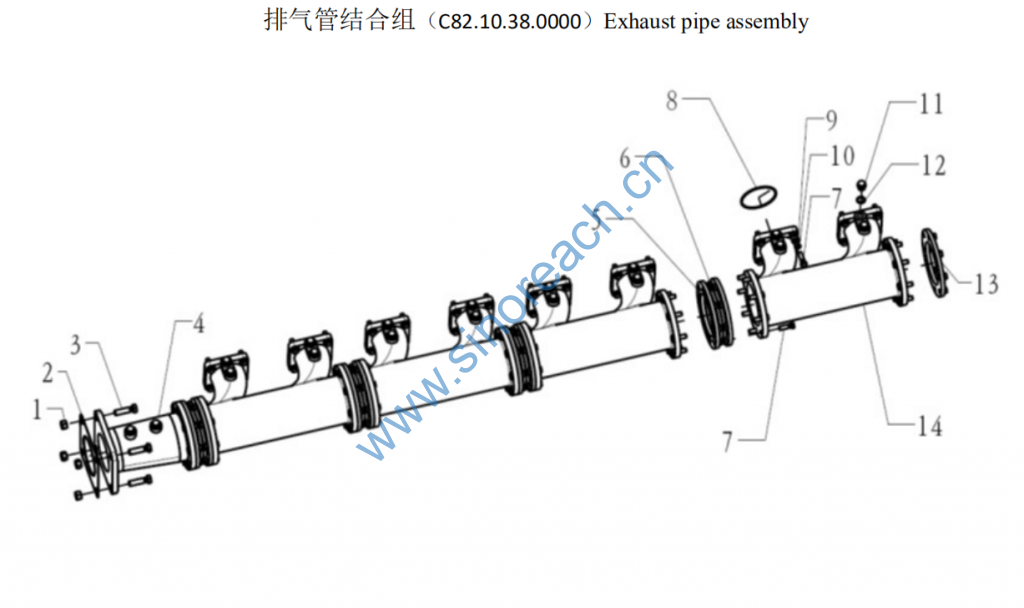

GR8200100003 Exhaust pipe assembly

1 90032150013 六角螺母 Hex. nut 4 4 GB/T6170-M20
2 820010150023 增压器垫片 Supercharger gasket 1 1
3 90031160069 六角头螺栓 Exhaust pipe bolt 4 4 GB/T5782-M20×75
4 820010150022 联接管 Connecting pipe 1 1
5 C16.10.22.1000 排气波纹管 Exhaust corrugated pipe 4 4
6 620010010007 六角螺母 Hex. nut 64 64
7 620010010001 排气管螺栓 Exhaust Pipe Bolt 104 104
8 C62.10.02.0008 O 型密封圈 O-ring 8 8
9 90034010006 弹性垫圈 Elastic washer 32 32 GB/T93-12
10 90034050007 平垫圈 Plain washer 32 32 GB/T97.1-12
11 LS-AM20×1.5 六角螺塞 Hex. screw plug 18 18
12 DIN7603-A21×26 密封垫圈 Sealing washer 18 18
13 C16.10.22.0002 盖板 Plate 1 1
14 C82.10.38.0001 排气管 Exhaust pipe 4 4
