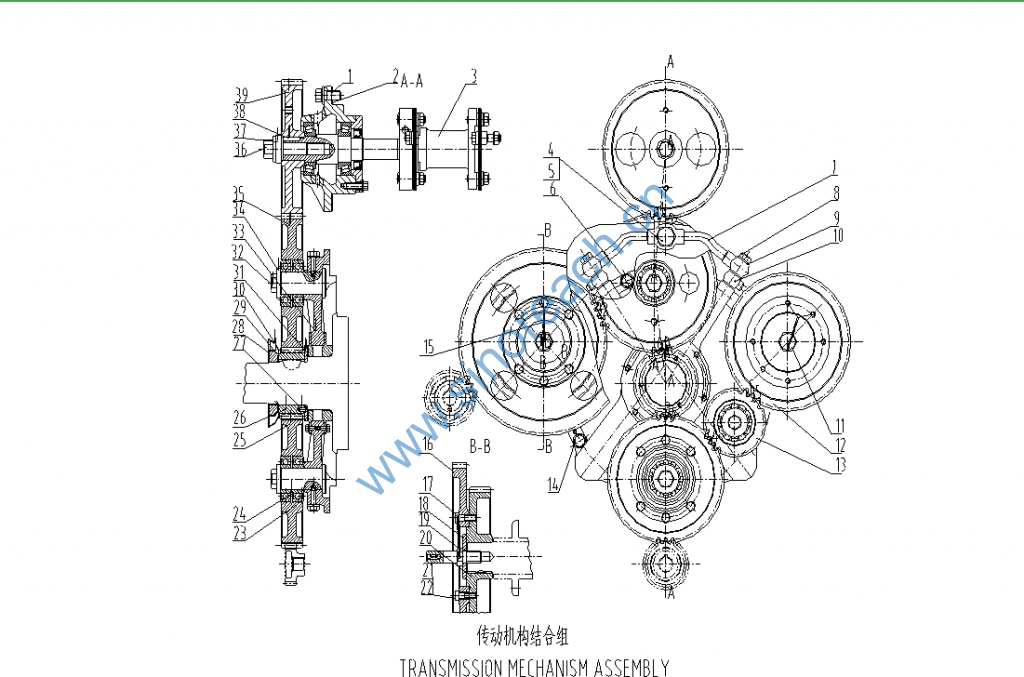

传动机构结合组 TRANSMISSION MECHANISM ASSEMBLY B774ZL-07-000A+D

1 Q/SC622-M12*25：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE B00002047 3

2 垫片 GASKET 761G-07-039+A 1

3 喷油泵传动轴装配部件 FUEL INJECTION PUMP DRIVING BEARING SEAT B774ZL-07-010+D 1

4 Q/SC642.3-1-M24*1.5*45：铰接螺栓 BANJO BOLT B00002230 1

5 铜垫圈 COPPER WASHER G18-113-01+A 2

6 Q/SC622-M10*30：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE B00002001 1

7 进油管焊接部件 FUEL INJECTION B774ZL-07-030+A 1

8 喷油螺栓 FUEL INJECTION BOLT B774ZL-07-005+A 2

9 Q/SC598-14*20：铜垫圈 COPPER WASHER B00001824 6

10 油管焊接部件 OIL PIPE WELDMENT 771-07-040+A 2

11 Q/SC602-M16*1.5*25：六角头头部带孔螺栓 HEXAGON HEAD BOLT WITH HOLE B00001871 1

12  左凸轮轴传动齿轮 LEFT CAMSHAFT DRIVING GEAR 771-07-004A+B 1

13 惰齿轮装配部件 IDLER GEAR 771-07-050+A 1

14 Q/SC622-M10*25：六角法兰面螺栓 HEXAGON NUTS WITH FLANGE-FINE B00001999 9

15 ∅12*200：镀锌铁丝 DEFAULT DXTS 2

16 淡水泵传动齿轮 FRESH WATER PUMP DRIVING GEAR 771-07-021+B 1

17 Q/SC602-M8*25：六角头头部带孔螺栓 HEXAGON HEAD BOLT WITH HOLE B00001882 1

18 压板 PRESSURE PLATE 771-07-029+A 2

19 转速表接头 TACHOMETER JOINT 771-07-022+A 1

20 右凸轮轴传动齿轮 RIGHT CAMSHAFT DRIVING GEAR 771-07-005A+B 1

21 锁紧垫片 LOCK WASHER 761-07-024A+A 2

22 GB/T5783-M8*25：六角头螺栓 HEXAGON HEAD BOLT B00000634 5

23 GB/T276-6206：滚动轴承 TAPER ROLLER BEARING B00000214 1

24 GB/T894.1-30：轴用弹性挡圈 CIRCLIP FOR SHAFT B00001063 1

25 惰齿轮装配部件 IDLER GEAR 771-07-060+A 1

26 主动齿轮 DRIVING GEAR 771-07-006+A 1

27 GB/T119-B5*12：圆柱销 CYLINDRICAL PIN B00000136 1

28 GB/T812-M60*2：圆螺母 ROUND NUT B00000926 1

29 Q/SC575-60：全齿形止退垫圈 FULL-TOOTH THRUST WASHER B00001674 2

30 甩油圈 OIL SPLASH RING 761G-07-035A+A 1

31 推力板 THRUST PLATE 761-07-019B+A 1

32 惰齿轮固定螺钉 IDLER SHAFT TIGHTENING SCREW 761G-07-042+A 3

33 传动机构盖板装配部件 TRANSMISSION MECHANISM COVER PLATE A771Z-07-010+A 1

34 压紧垫片 IMPACTING GASKET 761G-07-043+A 3

35 定时惰齿轮装配部件 TIMING IDLER GEAR 771-07-030+A 1

36 固紧螺钉 TIGHTENING SCREW S00005021 1

37 垫圈 WASHER 761G-07-032B+A 1

38 GB/T1096-C6*25：平键 SINGLE ROUND HEAD GENERAL FLAT KEY B00000053 1

39 高压油泵齿轮 GEAR B774ZLA-07-003+A 1
