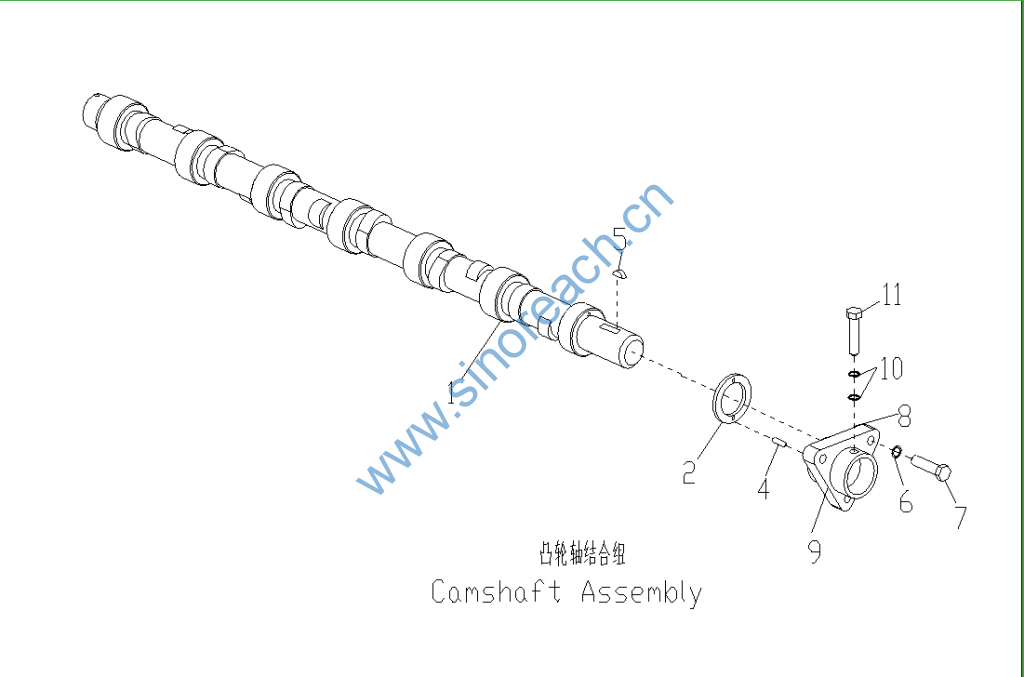

凸轮轴结合组 CAMSHAFT ASSEMBLY 771-09-000+B

1.1 右凸轮轴 RIGHT CAMSHAFT 771-09-001A+A 1

1.2 左凸轮轴 LEFT CAMSHAFT 771-09-002A+A 1

2 隔圈 SPACER RING 761-09-004A+A 2

4 Q/SC359-4*12：圆柱销 CYLINDRICAL PIN B00001663 4

5 GB/T1099-10*32：半圆键 WOODRUFF KEY B00000055 1

6 GB/T93-10：弹簧垫圈 STANDARD SPRING WASHER B00001237 6

7 Q/SC611.1-M10*22：小六角头螺栓 SMALL HEXAGON HEAD BOLT B00001907 6

8 右推力轴承 RIGHT THRUST BEARING 771-09-003A+A 1

9 左推力轴承 LEFT THRUST BEARING 771-09-004A+A 1

10 Q/SC599-14*20：纸板垫圈 COPPER WASHER B00001859 4

11 Q/SC642.1-M14*1.5：铰接螺栓 LINK BOLT B00002223 2
