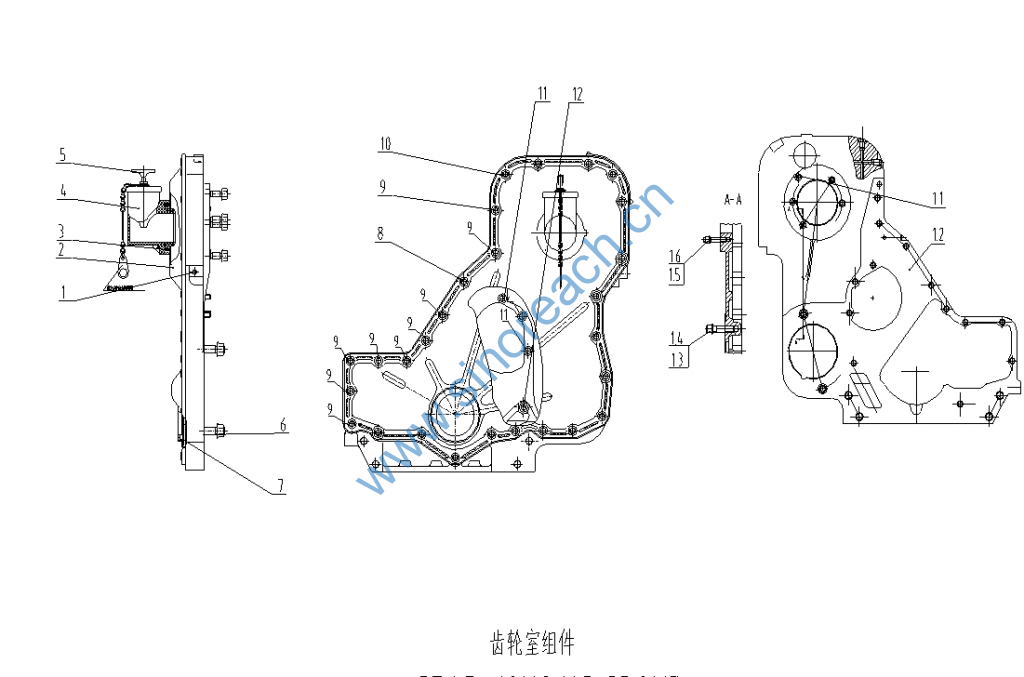

S00011312 齿轮室组件 GEAR HOUSING GROUP

1 D02B-001-40 齿轮室装配部件 GEAR HOUSING ASSY 1

1.1 S00011222 齿轮室螺塞装配部件 SCREW PLUG ASSEMBLY, GEAR HOUSING 1

1.2 B00000836 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 2 GB/T6177-M12-Y

1.3 B00001125 双头螺柱 STUD 2 GB/T899-GM12-M12*40-8.8-Y

1.4 B00000833 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 4 GB/T6177-M10-Y

1.5 B00001104 双头螺柱 STUD 4 GB/T899-GM10-M10*35-8.8-Y

1.6 B00001391 O形橡胶密封圈 O-RING 1 GB3452.1-9*2.65

2 D02B-102-40 齿轮室罩盖 COVER 1

3 D02B-109-03 螺盖密封圈 SEALING RING 1

4 D02B-108-04C 加油弯管 PIPE ELBOW, OIL FILLER 1

5 D02A-006-01A 加油盖部件 COVER ASSY, OIL FILLER 1

6 D02B-106-40 PTO接口垫片 PTO GASKET 1

7 D02B-104-02A 曲轴前端油封 CRANKSHAFT FRONT SEAL 1

8 B00002147 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M8*45

9 B00002150 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 9 Q/SC622-M8*50

10 D02B-300-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 17

11 B00002135 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 3 Q/SC622-M8*20-10.9

12 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M8*35
