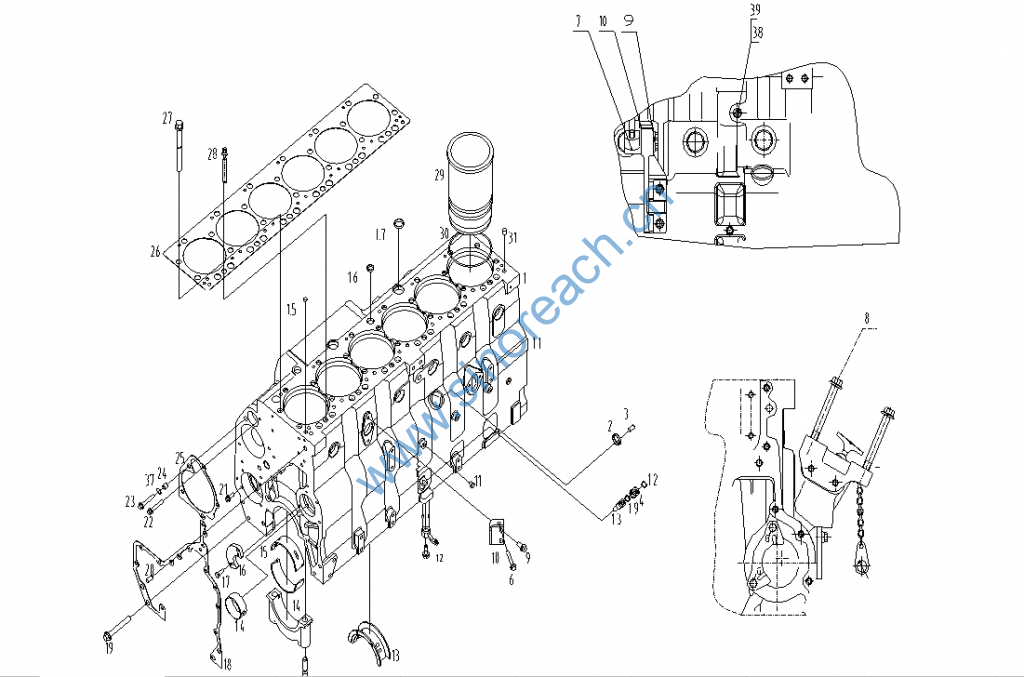

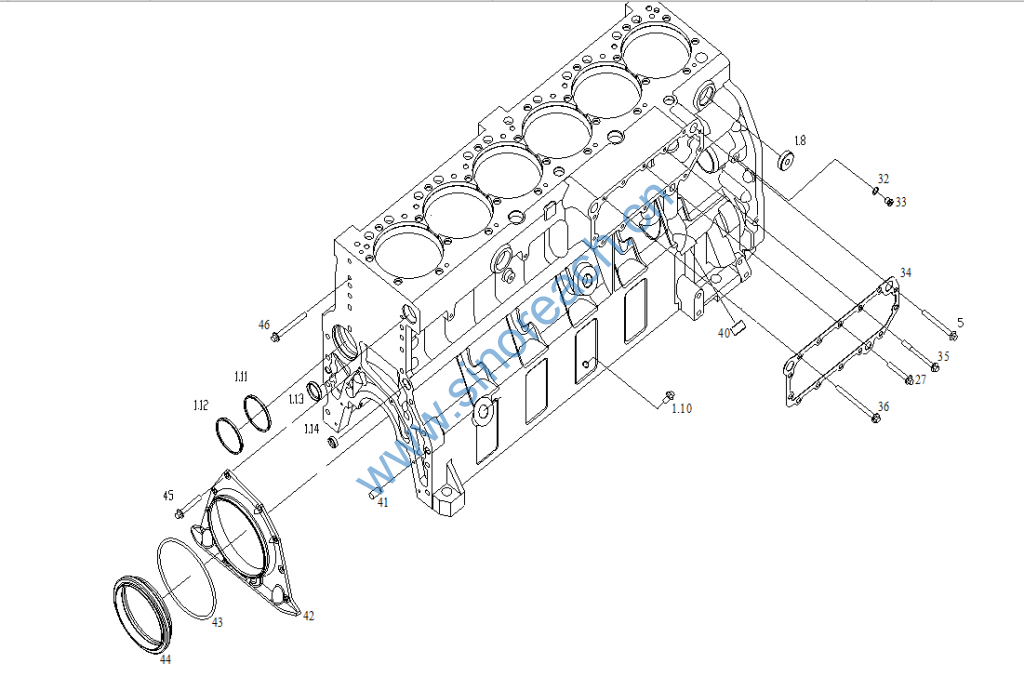

D02A-000-64 机体组件 CYLINDER BLOCK GROUP

1 D02A-001-41 机体装配部件 CYLINDER BLOCK ASSY (ASSEMBLED) 1

1.1 D02A-002-32 机体机械加工部件 CYLINDER BLOCK MACHINED ASSEMBLY 1

1.2 D28-107-01 O型圈 O-RING 1

1.3 D02A-142-05 油尺管 OIL DIPSTICK TUBE 1

1.4 D02A-113-01B 凸轮轴轴承 CAMSHAFT BEARING 7

1.5 D02A-309-01 圆柱闷头 CUP PLUG 1

1.6 D02A-161-01 闷头（φ20） CUP PLUG 1

D02A-161-31 闷头(φ20) CUP PLUG 2

1.7 D04-166-01A 闷头（φ28） CUP PLUG 2

1.8 D02A-308-01 闷头 CUP PLUG 1

1.9 B00001546 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-12

1.10 D02A-170-01 螺塞 PIPE PLUG 1

1.11 D02A-324-40 O型圈 O-RING 1

1.12 D02A-162-40 凸轮轴闷头 CUP PLUG 1

1.13 D02A-310-01 闷头（φ20） CUP PLUG 1

1.14 D04-167-01A 闷头（φ35） CUP PLUG 8

2 D02A-313-801 内六角螺塞 PLUG 1

3 B00000301 O形橡胶密封圈 O-RING 1 GB/T3452.1-26.5*2.65

4 D02A-179-01 管接螺母 NUT 1

5 B00002165 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*80

6 B00002145 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*40

7 D02A-173-40 油泵托架 SUPPORT 1

8 B00002033 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M10*90-10.9

9 B00002137 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*25

10 D02A-174-40 油泵支架 SUPPORT 1

11 D02A-166-01 螺塞(Z1/8) PLUG 2

12 D02A-030-03 活塞冷却喷嘴部件 PISTON-COOLING ORIFICE ASSY 6

13 D02A-111-40 曲轴推力轴承(上) THRUST BEARING (UPPER), CRANKSHAFT 1

D02A-323-40 曲轴推力轴承下瓦 THRUST BEARING (LOWER), CRANKSHAFT 1

14 D02A-112-40 主轴承下瓦 MAIN BEARING（DOWN） 6

15 D02A-110-40 主轴承上瓦 MAIN BEARING（UP） 6

16 D02A-114-01C 凸轮轴推力板 CAMSHAFT THRUST PLATE 1

17 B00000631 六角头螺栓 HEXAGON HEAD BOLT 2 GB/T5783-M8*20

18 D02A-129-40 齿轮室垫片 GEAR HOUSING GASKET 1

19 B00002062 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M12*50

20 B00000098 圆柱销 SPRING PIN 2 GB/T119-A10*20

21 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M8*35

22 B00002147 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*45

23 B00002153 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 7 Q/SC622-M8*55

24 B00001020 弹性圆柱销 ELASTIC PIN 3 GB/T879-12*12

25 D02A-307-01 垫片 GASKET 1

26 D02A-109-30B 气缸盖垫片 CYLINDER HEAD GASKET 1

27 D02A-107-40 气缸盖长螺栓 CYLINDER HEAD BOLT (LONG) 20

28 D02A-108-40 气缸盖短螺栓 CYLINDER HEAD BOLT (SHORT) 6

29 D02A-104-43 气缸套 CYLINDER LINER 6

30 D02A-171-30A 缸套封水圈 SEAL 18

31 D02A-312-01 圆柱销 SPRING PIN 2

32 B00001545 复合式密封硬垫圈 RUBBER COATED HARD WASHER 2 Q/SC1294-10

33 B00001724 六角头螺塞 HEXAGON PIPE PLUG 2 Q/SC587.1-M10*1

34 D02A-133-30A 机油冷却器垫片 OIL COOLER GASKET 1

35 D02A-311-01 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2

36 D02A-306-01A 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 6

37 B00001811 加大毛垫圈 ENLARGED ROUGH WASHER 1 Q/SC597-8*26

38 B00001378 O形橡胶密封圈 O-RING 1 GB3452.1-16*2.65

39 D02A-168-01 六角头螺塞 HEXAGON PIPE PLUG 1

40 D02A-163-01 内六角螺塞(Z3/4) PLUG 1

41 B00000102 圆柱销 DOWEL,PIN 2 GB/T119-A12*24

42 D02A-115-01B 后盖板 PLATE 1

43 D02A-116-01 后盖板O型密封圈 O-RING 1

44 D02A-118-02B 曲轴后端油封 CRANKSHAFT REAR SEAL 1

45 B00002114 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 8 Q/SC622-M6*16

46 B00002057 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 12 Q/SC622-M12*40
