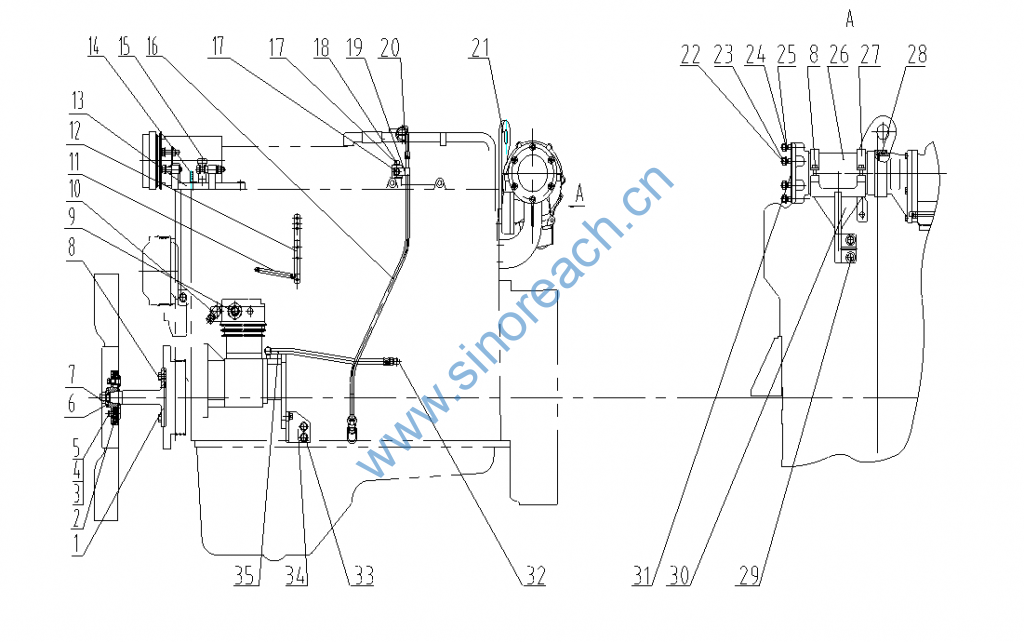

D00-000-316 变型配套组件 PARTS GROUP, ENGINE APPLICATION

1 D00-109-01B 风扇传动轴 SHAFT, FAN DRIVE 1

2 D00-002-01A 风扇连接盘橡胶硫化部件 RUBBER VULCANIZED COUPLING PLATE, FAN 1

3 B00001239 标准型弹簧垫圈 SPRING WASHER 4 GB/T93-12

4 B00004836 六角头螺栓 HEXAGON HEAD BOLT 4 GB/T5786-M12*1.25*25-ZN.D

5 B00001278 平垫圈 PLAIN WASHER 4 GB/T97.1-12-200HV-Y

6 D00-110-01 压板 CLAMP 1

7 D00-147-01 风扇螺帽 NUT, FAN 1

8 B00002001 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 8 Q/SC622-M10*30

9 D00-160-08 空压机排气接头 JOINT, AIR OUTLET PIPE-AIR COMPRESSOR 1

10 D00-105-08 弯管接头 JOINT ELBOW 1

11 D59-103-01 弹簧 SPRING 1

12 D00-230-18 调速手柄 POLE 1

13 D00-010-04 冷气压缩机支架部件 BRACKET ASSY, COMPRESSOR-COOL AIR CONDITIONER 1

14 D00-290-01 放气接头 BLEEDING JOINT 1

15 D00-163-09 取暖水接头 JOINT, WARM  WATER OUTLET FROM ENGINE 1

16 D00-008-08 油尺接管焊接部件 TUBE ASSY (WELDED), OIL DIPSTICK 1

17 B00002132 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 3 Q/SC622-M8*16

18 D00-009-04 油尺接管支架焊接部件 BRACKET ASSY (WELDED), TUBE ADAPTER-OIL DIPSTICK 1

19 D00-138-01 夹箍 CLAMP 1

20 D00-006-07 油尺部件 OIL DIPSTICK ASSY 1

21 D00-172-05 后吊环 REARLIFTING EYE 1

22 B00001100 双头螺柱 STUD 6 GB/T899-GM10-M10*30-8.8-Y

23 B00000833 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 6 GB/T6177-M10-Y

24 B00001237 标准型弹簧垫圈 SPRING WASHER 6 GB/T93-10

25 B00001275 平垫圈 PLAIN WASHER 6 GB/T97.1-10-200HV-Y

26 D00-118-26 排气弯管 EXHAUST PIPE ELBOW 1

27 D00-185-01 夹箍 CLAMP 2

28 D00-121-01 密封环 SEALING RING 2

29 B00002010 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 Q/SC622-M10*45

30 D00-143-02A 支架 BRACKET 1

31 D00-173-03 排气弯管垫片 GASKET, EXHAUST PIPE ELBOW 1

32 D02A-167-01 弯管接头 JOINT ELBOW 1

33 B00001996 六角法兰面螺栓 HEXAGON BOLTS WITH FLANGE-SMALL SERIES 2 Q/SC622-M10*20

34 D00-101-40A 空压泵支架 BRACKET, AIR COMPRESSOR 1

35 D00-106-02A 空压机进油管 OIL INLET PIPE, AIR COMPRESSOR 1
