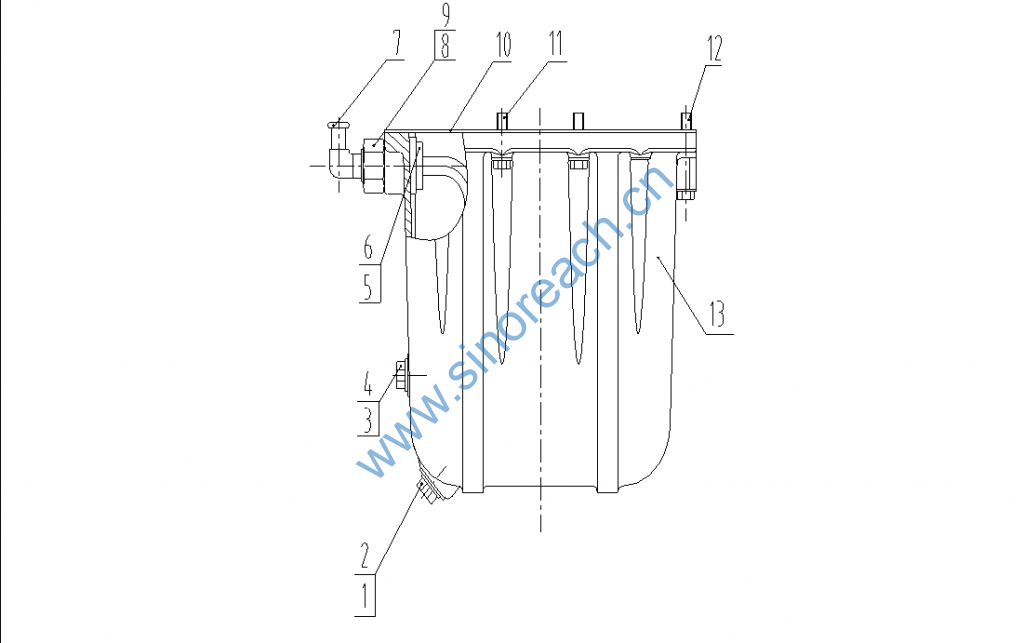

D03-000-44 油底壳组件 OIL SUMP GROUP

1 D03-110-02 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1
2 B00001728 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M181.5 3 D03-110-01 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 4 B00001727 六角头螺塞 HEXAGON HEAD SCREW PLUG 1 Q/SC587.1-M161.5
5 B00001552 复合式密封硬垫圈 RUBBER COATED HARD WASHER 1 Q/SC1294-24
6 D03-030-04 回油管焊接部件 RETURN OIL PIPE FITTINGS 1
7 D03-304-02 弯管接头 ELBOW JOINT 1
8 B00000782 1型六角螺母 HEXAGON HEAD NUT, TYPE 1 1 GB/T6170-M24-Y
9 B00001844 铜垫圈 COPPER WASHER 1 Q/SC598-2435 10 D03-104-30 油底壳垫片 BRACKET, OIL PAN 1 11 B00002142 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 30 Q/SC622-M835
12 B00002156 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M8*60
13 D03-001-48 油底壳焊接部件 OIL SUMP ASSY (WELDED) 1
