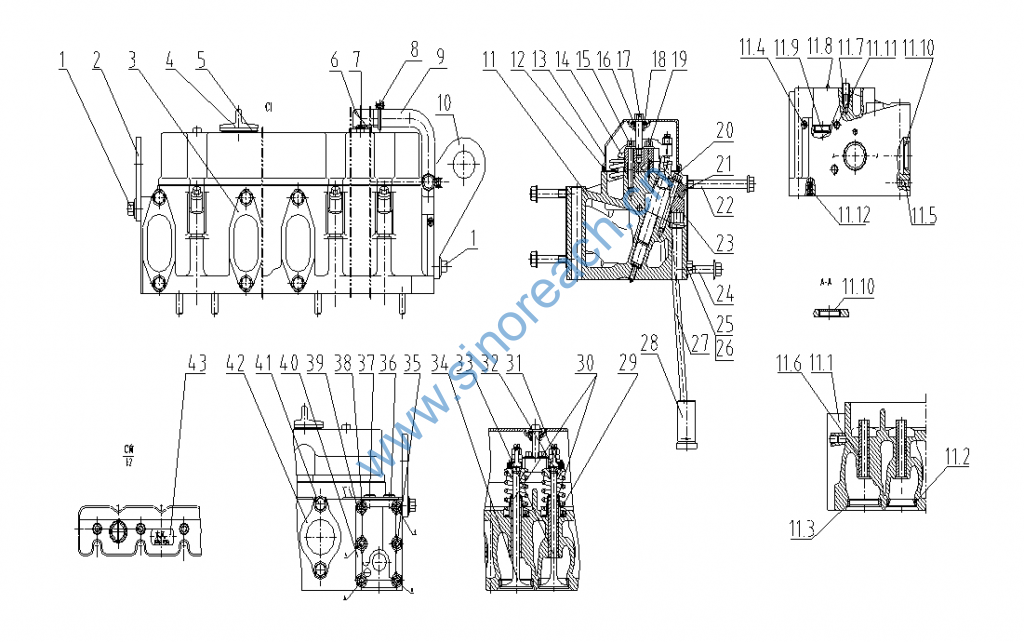

D04-000-30A 气缸盖组件 CYLINDER HEAD GROUP

序号 Ref 件号 Part No 中文名称 Chinese Description 英文名称 English Description 每台数量 Quantity 标准件标记 Standard Fasteners Sign
1 B00002047 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 2 Q/SC622-M1225 2 D04-142-30C 前吊环 EYE PLATE, FRONT 1 3 D04-131-30 进气管垫片 GASKET, INTAKE MANIFOLD 6 4 D04-138-01A 加油盖 CAP, OIL FILLER 1 5 D04-139-02 加油盖密封垫片 GASKET, OIL FILLER CAP 1 6 D04-017-50 通气管部件 TUBE, VENTILATION 1 7 B00002111 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 2 Q/SC622-M612
8 B00001565 喉箍 CLAMP 2 Q/SC1302-18~32
9 S00011811 油气分离器进气橡胶管 MIST INLET PIPE, CRANKCASE VENT FILTER 1
10 D04-143-30C 后吊环 REAR EYE PLATE 1
11 D04-001-30B 气缸盖部件 CYLINDER HEAD ASSEMBLY 1
11.1 D04-101-30B 气缸盖 CYLINDER HEAD 1
11.2 D04-103-30 排气门座 INSERT, EXHAUST VALVE 6
11.3 D04-102-30 进气门座 INSERT, INTAKE VALVE 6
11.4 D04-132-01 内六角螺塞 PLUG, PIPE 2
11.5 D04-317-01 闷头 PLUG 6
11.6 D04-104-30A 进气门导管 GUIDE, INTAKE 12
11.7 D04-311-01A 定位销 PIN 6
11.8 B00000116 圆柱销 DOWEL, PIN 6 GB/T119-A48 11.9 D04-308-01 闷头（φ25） PLUG, EXPANSION 5 11.10 D04-167-01A 闷头（φ35） PLUG, EXPANSION 6 11.11 D04-316-01 闷头 PLUG, EXPANSION 1 11.12 D04-161-01 节流塞 PIN, THROTTLING 1 12 D04-135-30A 气缸盖罩密封带 SEAL, VALVE COVER 1 13 D04-134-32 气缸盖罩壳 VALVE COVER 1 14 D04-007-32 摇臂总成 ROCKER ARM 6 15 D04-120-30 遥臂轴紧固螺栓 BOLT, ROCKER ARM SHAFT 6 16 D04-300-01A 罩壳螺栓密封圈 SEAL, VALVE COVER BOLT 6 17 D04-136-30B 缸盖罩壳螺栓 BOLT, VALVE COVER 6 18 D04-301-01 罩壳螺栓密封圈垫圈 WASHER, VALVE COVER BOLT 6 19 B00002148 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 12 Q/SC622-M845-10.9
20 D04-148-30 喷油器紧固螺栓 BOLT, INJECTOR 6
21 D04-147-32 喷油器压板 CLAMP, INJECTOR 6
22 D04-307-01A 进气管螺栓 BOLT, INTAKE MANIFOLD 6
23 D04-302-02 喷油器压板垫块 SUPPORT, INJECTOR CLAMP 6
24 B00002016 六角法兰面螺栓 BOLT, HEX FLANGE HEAD CAP 6 Q/SC622-M1055 25 D02A-169-01 六角头螺塞 PLUG, PIPE 1 26 B00001374 O形橡胶密封圈 SEAL, O RING 1 GB3452.1-142.65
27 D04-128-30A 推杆 PUSH ROD 12
28 D04-127-30C 挺柱 TAPPET 12
29 D04-113-30A 气门弹簧 SPRING, VALVE 12
30 D04-107-30 排气门杆油封 SEAL, EXHAUST VALVE STEAM 12
31 D04-114-30B 气门弹簧上座 RETAINER, VALVE SPRING 12
32 D04-115-30A 气门锁夹 COLLET, VALVE 24
33 D04-111-31B 排气门 EXHAUST VALVE 6
34 D04-110-33 进气门 INTAKE VALVE 6
35 D04-306-01 调温器双头螺栓 STUD, THERMOSTAT 4
36 D04-151-30 放气接头 CONNECTOR, VENT 1
37 D04-309-01 内六角螺塞(Z3/8) PLUG 1
38 D04-305-01 调温器双头螺栓 STUD, THERMOSTAT 2
39 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 6 GB/T6177-M8-Y
40 D04-304-01 调温器垫片 GASKET, THERMOSTAT 1
41 D04-145-30A 排气管螺栓 BOLT, EXHAUST MANIFOLD 12
42 D04-144-30 排气管垫片 GASKET, EXHAUST MANIFOLD 6
43 D04-164-01 商标 TRADEMARK PLATE 1
