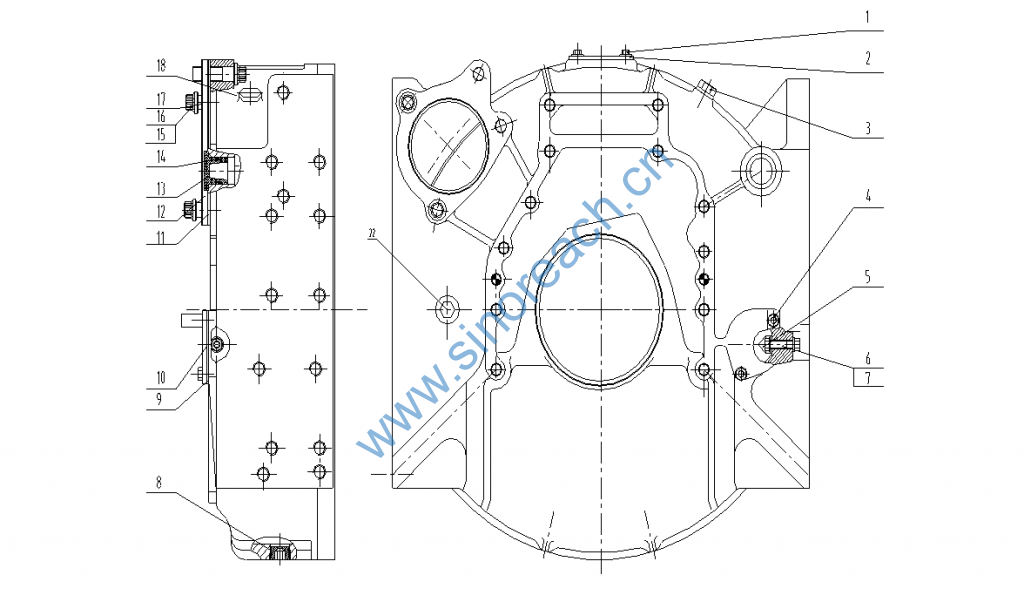

D02C-000-09A 飞轮壳组件 FLYWHEEL HOUSING GROUP

1 B00002111 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 4 Q/SC622-M612 2 D02C-149-03 飞轮壳开口盖板 FLYWHEEL HOUSING INSPECTION OPENING COVER 1 3 B00001728 六角头螺塞 HEXAGON PIPE PLUG 1 Q/SC587.1-M181.5
4 B00002132 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 2 Q/SC622-M816 5 D02C-103-01 指针 INDICATOR 1 6 B00002147 六角法兰面螺栓 HEX HEAD BOLT (FLANGED) 1 Q/SC622-M845
7 B00000846 六角法兰面螺母 NUT, HEX FLANGE HEAD CAP 1 GB/T6177-M8-Y
8 D02A-163-01 内六角螺塞 PLUG 1
9 D02C-105-01 盖板垫片 GASKET 1
10 D02C-104-01 盖板 COVER 1
11 D02C-109-02 垫片 GASKET 1
12 D02C-102-07 启动电机连接法兰 STARTING MOTOR FLANGE 1
13 D02C-106-01 盘车孔塞 BARRING BORE PLUG 1
14 B00000300 O形橡胶密封圈 O-RING 1 GB/T3452.1-23.6*3.55
15 B00001284 平垫圈 PLAIN WASHER 3 GB/T97.1-16-200HV-Y
16 D02C-110-01 十二角头螺栓 12-POINT HEAD BOLT WITH FLANGE 3
17 D02C-108-02 启动电机垫片 STARTING MOTOR GASKET 1
18 D02C-101-19C+C 飞轮壳 FLYWHEEL HOUSING 1
